Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5511M113REDYELSWITCH PB SPDT 0.3A 12V |
1,754 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | - | Black | LED, Red/Yellow | 2.2, 2.1 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
LP4EE1PBBKGPWRSWITCH PUSH DPDT 0.1A 30V |
1,037 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
700ASP7B10M6QEHSwitches |
2,923 |
|
Datasheet | 700A | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
800SP9B5VS2REC1BLKSWITCH PUSH SPST-NO 0.4VA 20V |
2,507 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
|
800SP9B9M2QESWITCH PUSH SPST-NO 3A 120V |
2,763 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|

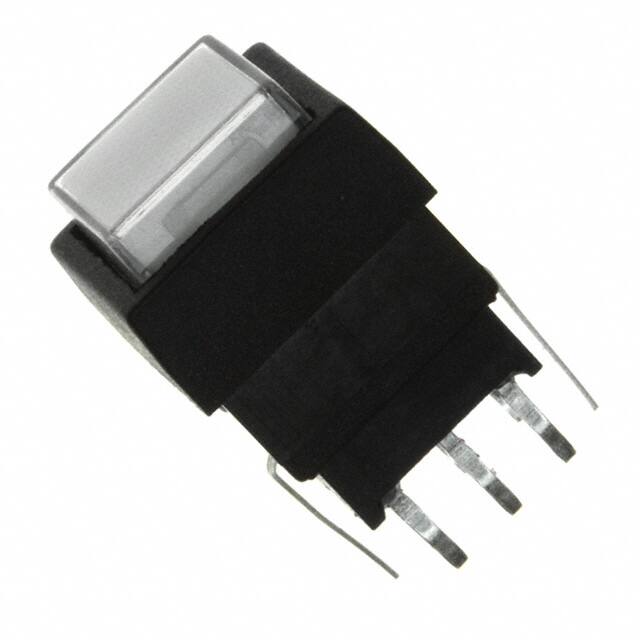

LP4EE1PBATBSWITCH PUSH DPDT 0.1A 30V |
1,297 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Clear | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
LP4OA1PBBTWSWITCH PUSH DPDT 0.1A 30V |
1,197 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, White | 3.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP4EE1PBABBSWITCH PUSH DPDT 0.1A 30V |
1,095 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Blue | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
700SP7B10M1QEC2REDSWITCH PB SPDT 3A 120V |
4,881 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
WBL2UOARBQSwitches |
4,124 |
|
Datasheet | WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | - | - | LED, Blue/Red | - | PC Pin | - | - | - | -20°C ~ 70°C |
