Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
800SP9B10VS2RESWITCH PUSH SPST-NO 0.4VA 20V |
4,040 |
|
Datasheet | 800 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
800SP8B10M6QESWITCH PUSHBUTTON SPDT 3A 120V |
2,714 |
|
Datasheet | 800 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
LP4EE1PBCRWSWITCH PB DPDT 0.1A 30V |
3,627 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | - | Red | LED, White | 3.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
800SP9B6M7RESWITCH PUSH SPST-NO 0.4VA 20V |
1,941 |
|
Datasheet | 800 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
5501MBLKREDYELSWITCH PUSH SPDT 0.3A 12V |
1,129 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Red/Yellow | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
800SP9B10M6REC1BLKSWITCH PUSH SPST-NO 0.4VA 20V |
4,863 |
|
Datasheet | 800 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
700SP7B10M52QEHC1BLKSWITCH PB SPDT 3A 120V |
3,930 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | - | Black | - | - | Wire Wrap | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|

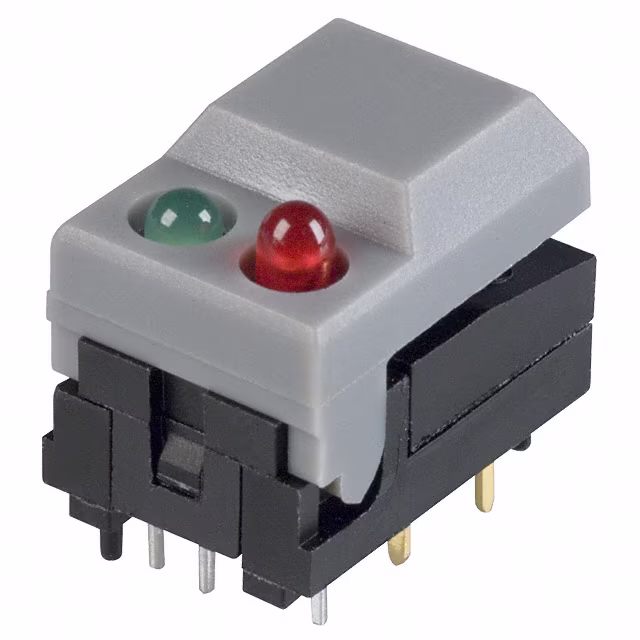

5501MGRYREDGRNSWITCH PUSH SPDT 0.3A 12V |
1,105 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Gray | LED, Green/Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|

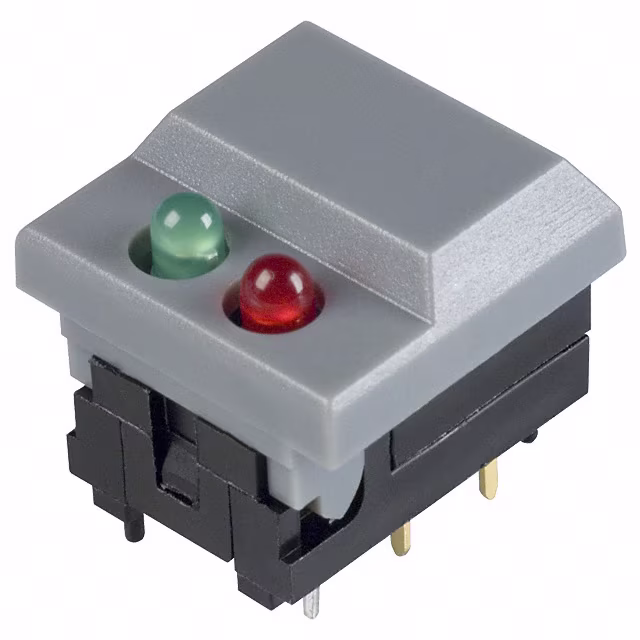

5511MGRYREDGRNSWITCH PUSH SPDT 0.03A 12V |
1,835 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Gray | LED, Green/Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5501MBLKYELYELSWITCH PUSH SPDT 0.3A 12V |
4,860 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
