Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

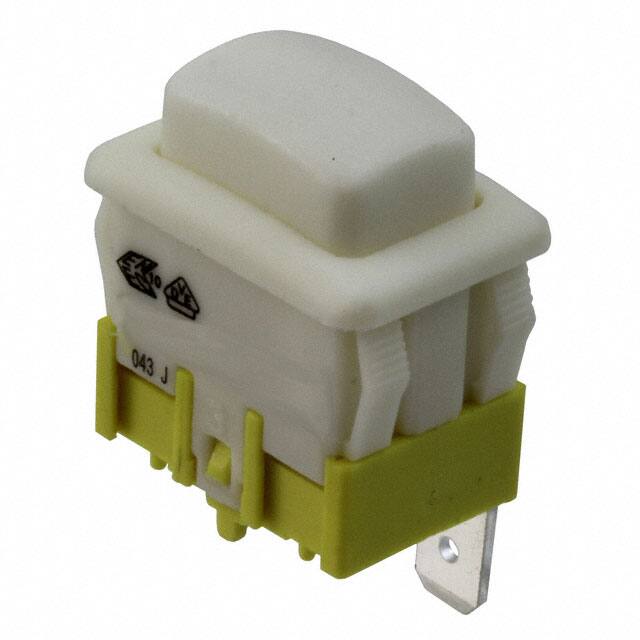

PA414CZ08Z0800SWITCH PUSH SPST-NO 16A 125V |
1,461 |
|
- |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | White | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
PBH2UOAKZXNAGVSWITCH PUSH DPDT 0.1A 30V |
2,925 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PA552JSwitches |
4,431 |
|
Datasheet | PA5 | Bulk | Active | Panel Mount, Rear | Standard | DPST | Off-On | 16A (AC) | 125 V | - | Plunger for Cap | - | Yellow | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -20°C ~ 125°C |
|
|
PA4N42C1000-116SWITCH PB DPST 16A 125V |
1,434 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | - | Red | Neon, Red | 125 VAC | PC Pin | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
PR142C1000-147SWITCH PUSHBUTTON DPST 16A 125V |
4,876 |
|
Datasheet | PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Blue | Neon, Blue | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
|
WBL4UEERQR05CLRSWITCH PUSHBUTTON 4PDT 300MA 30V |
3,077 |
|
Datasheet | WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | 4PDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Red | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PBH2UOASNPNAGV1SDGRSWITCH PUSH DPDT 0.1A 30V |
4,561 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Square, Button | No Marking | Gray, Dark | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PBH6UEEKZXNAGXSWITCH PUSH 6PDT 0.1A 30V |
2,529 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | 6PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PA4R12C112Z71SWITCH PUSHBUTTON DPST 16A 125V |
1,965 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | Water Resistant | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
PBH6UEENAG1RLGRSWITCH PUSH 6PDT 0.1A 30V |
1,238 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | 6PDT | On-On | 100mA (DC) | - | 30 V | Round, Button | No Marking | Gray, Light | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
