Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
800SP9B5M1REHSWITCH PUSH SPST-NO 0.4VA 20V |
2,735 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
WBL2UEEGYQSWITCH PUSH DPDT 300MA 30V |
1,536 |
|
Datasheet | WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | LED, Green/Yellow | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PBH4UEEKZXNAGVSWITCH PUSH 4PDT 0.1A 30V |
2,473 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PA4R12C1000-117SWITCH PUSHBUTTON DPST 16A 125V |
2,759 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | No Marking | Red | Neon, Red | 250 VAC | Quick Connect - 0.187" (4.7mm) | Water Resistant | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
PA4R12C1000-127SWITCH PUSHBUTTON DPST 16A 125V |
1,377 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | No Marking | Amber | Neon, Amber | 250 VAC | Quick Connect - 0.187" (4.7mm) | Water Resistant | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
PR14EC1000-124SWITCH PUSH DPST-NO 16A 125V |
2,905 |
|
- |
PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round, Button | No Marking | Amber | Incandescent, Amber | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
|
PA4R14C1000-145SWITCH PB SPST-NO 16A 125V |
1,809 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Keyswitch, Illuminated | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | - | Blue | Incandescent, Blue | 24 VAC/DC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|

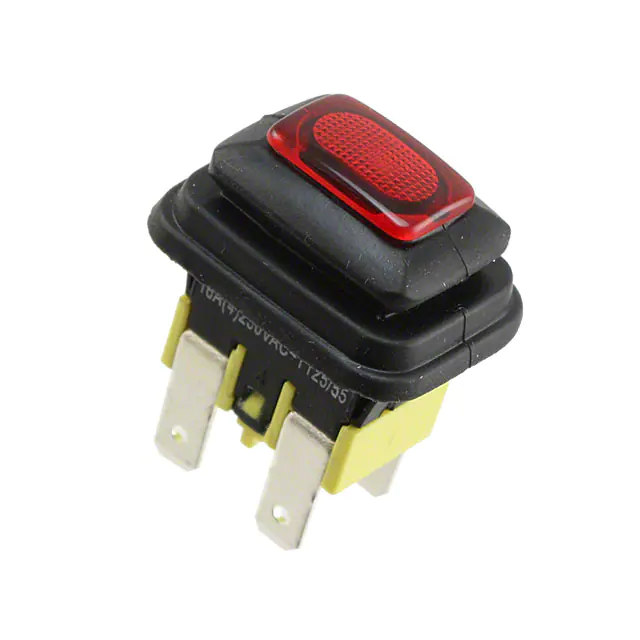

PA4R12C1000-116SWITCH PUSHBUTTON DPST 16A 125V |
1,932 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | No Marking | Red | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | Water Resistant | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
LP4OA1PBNNRSWITCH PB DPDT 0.1A 30V |
3,231 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Square, Button (Not Included) | - | - | LED, Red | 1.9 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
TL2205EEBPYBSWITCH PUSH DPDT 0.1A 30V |
1,361 |
|
Datasheet | TL2205 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Oval, Button (Not Included) | - | - | LED, Yellow | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
