Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WBL4UEEGQR05CLRSWITCH PUSHBUTTON 4PDT 300MA 30V |
3,725 |
|
Datasheet | WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | 4PDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Green | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PR142C2000-136SWITCH PUSHBUTTON DPST 16A 125V |
3,749 |
|
Datasheet | PR1, LAMB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
|
WBL4UEERQSWITCH PUSHBUTTON 4PDT 300MA 30V |
2,571 |
|
Datasheet | WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | 4PDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
PA4R14C1100SWITCH PUSH SPST-NO 16A 125V |
4,806 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | Water Resistant | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
PBH2UEESNPNAGVSWITCH PUSHBUTTON DPDT 0.1A 30V |
4,055 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|

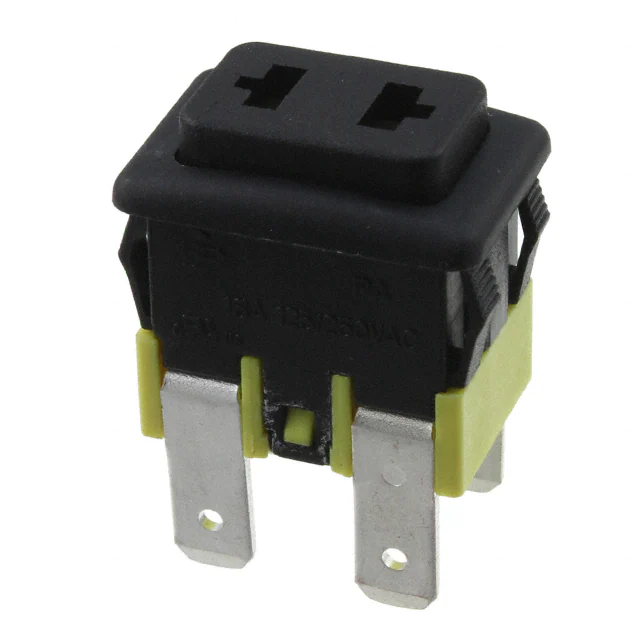

PA4C12C1100SWITCH PUSHBUTTON DPST 16A 125V |
4,856 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
|
PA46EC1000-107SWITCH PB DPST 16A 125V |
3,115 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO | Off-Mom | 16A (AC) | 125 V | - | Rectangular, Button | - | Clear | Neon, Clear | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C |
|
|
PA464C1000-107SWITCH PB SPST-NO 16A 125V |
4,010 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Rectangular, Button | - | Clear | Neon, Clear | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C |
|
|
LP1OA1AYSWITCH PUSH SPST-NO 0.1A 30V |
1,704 |
|
Datasheet | LP1 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Yellow | 2.2 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -40°C ~ 85°C |
|
|
PA4R11C1100SWITCH PUSHBUTTON SPST 16A 125V |
3,490 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button, Rubber Cap | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | Water Resistant | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
