Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPR5SAD6SWITCH PUSH SPDT 0.5A 48V |
350 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
PV7F2T0SS-344-M03SWITCH PUSHBUTTON SPDT 2A 48V |
174 |
|
Datasheet | PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Off, Off-On | 2A (DC) | - | 48 V | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
PV7F2Y0SS-3R4SWITCH PUSHBUTTON SPDT 2A 48V |
1,063 |
|
Datasheet | PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
NP8S3D203QESWITCH PUSHBUTTON SPDT 5A 32V |
106 |
|
Datasheet | NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
NP8S3T203QESWITCH PUSHBUTTON SPDT 5A 32V |
459 |
|
Datasheet | NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
NP8S2T203QESWITCH PUSHBUTTON SPDT 5A 32V |
123 |
|
Datasheet | NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
MP0037/2SWITCH PUSH SPST-NO 1A 50V |
173 |
|
Datasheet | - | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 1A (AC/DC) | 50 V | 50 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 70°C |
|
NP8S2L203QESWITCH PUSHBUTTON SPDT 5A 32V |
182 |
|
Datasheet | NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
IPR1FAD6SWITCH PUSHBUTTON SPST 4A 12V |
7,432 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Red | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
MAV0120/3D2RD012SWITCH PUSHBUTTON SPST-NO 2A 36V |
221 |
|
Datasheet | MAV0120 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | No Marking | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|

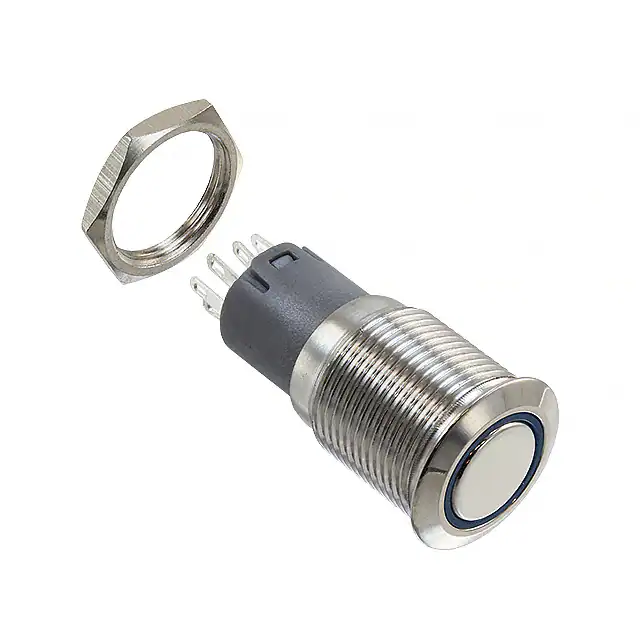

MP0045/1D2BL012SWITCH PUSHBUTTON DPDT 3A 250V |
144 |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder Lug | IP40 | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
MP0045/1D2GN012SWITCH PUSHBUTTON DPDT 3A 250V |
112 |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP40 | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
IPR1SAD2104SWITCH PUSHBUTTON SPST 4A 12V |
275 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
AV1-1B211B-R00SWITCH PUSHBUTTON SPDT ALT ACTIO |
331 |
|
Datasheet | AV | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 10A (DC) | - | 12 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
IPR1SAD6SWITCH PUSHBUTTON SPST 4A 12V |
167 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
MPG406RSWITCH PUSHBUTTON 4PDT 6A 125V |
107 |
|
Datasheet | MPG | Bulk | Active | Panel Mount, Rear | Standard | 4PDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 11.80mm Dia | -20°C ~ 80°C |
|
01-121.025SWITCH PB DPST-NO/NC 5A 250V |
112 |
|
Datasheet | 01 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|

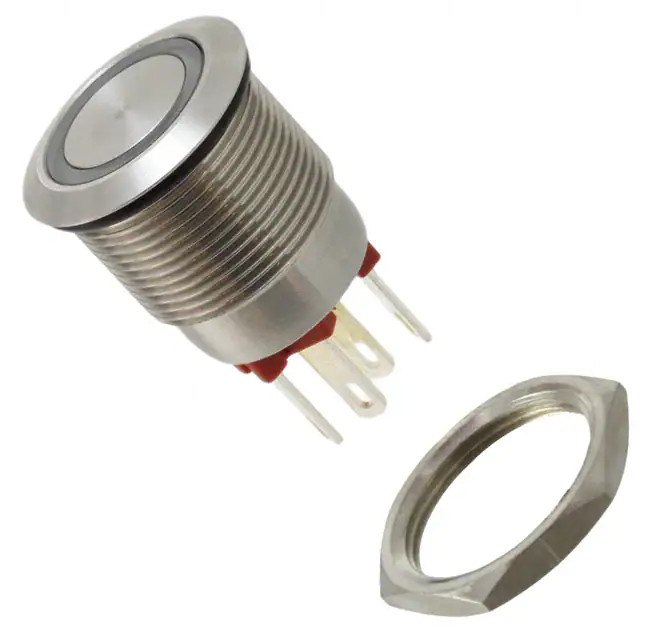

MPI002/28/RDSWITCH PUSH SPST-NO 0.05A 24V |
422 |
|
Datasheet | - | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.85 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
MPI002/28/RD/12SWITCH PUSH SPST-NO 0.05A 24V |
216 |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
IZNR3P422SWITCH PUSH SPST-NO 0.2A 250V |
204 |
|
Datasheet | IZ | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 48 V | Round, Button | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -40°C ~ 85°C |
