Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV0611A200SWITCH PUSHBUTTON SPST 1.5A 250V |
3,920 |
|
Datasheet | AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-On | 1.5A (AC), 1A (DC) | 250 V | 24 V | Round, Button | No Marking | Silver | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Circular - 16.20mm Dia | -30°C ~ 70°C |
|
AV09C703D200KSWITCH PUSH SPST-NO 0.05A 24V |
262 |
|
Datasheet | AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Sealed - Fully | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
1241.6824.1122077SWITCH PUSHBUTTON DPST 12A 250V |
4,607 |
|
Datasheet | MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | ON/OFF | Silver | LED, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
IXP3W02BRXCDSWITCH PB IP67 SEALED BLACK ROUN |
282 |
|
Datasheet | IX | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 28 V | Round, Button, Mushroom | No Marking | Black | LED, Blue | 3.2 VDC | Wire Leads | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 11.90mm Dia | -40°C ~ 85°C |
|
AML21GBA2ACSWITCH PUSHBUTTON DPDT 3A 125V |
3,826 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
3-120-537PUSH SWITCH BLUE LATCH |
114 |
|
Datasheet | MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | Power Symbol | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
|
7792SWITCH T/S HENCOL 22 |
1,156 |
|
Datasheet | - | Bulk | Active | Chassis Mount | Standard | SPST-NO | Off-Mom | 12A (DC) | - | 12 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | - | - | - | - |
|
AVP22MS16CE0DT5A04SWITCH PUSHBUTTON SPST-NO 1A 24V |
1,496 |
|
Datasheet | AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|
07-26 REDSWITCH PUSH SPDT 10A 115V |
3,077 |
|
Datasheet | 7 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | - | - | -40°C ~ 85°C |
|
03-617.011SWITCH PB DPDT 10A 400V |
4,323 |
|
Datasheet | 03 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Screw Terminal | IP40 | - | Rectangular - 41.20mm x 21.20mm | -25°C ~ 55°C |
|
AML32FBB4ADSWITCH PUSH DPST-NO 10A 125V |
4,850 |
|
Datasheet | AML32 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO (DM) | Off-On | 10A (AC/DC) | 125 V | 30 V | Rectangular, Button (Not Included) | No Marking | - | Neon, Red | 125 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 29.00mm x 19.00mm | - |
|

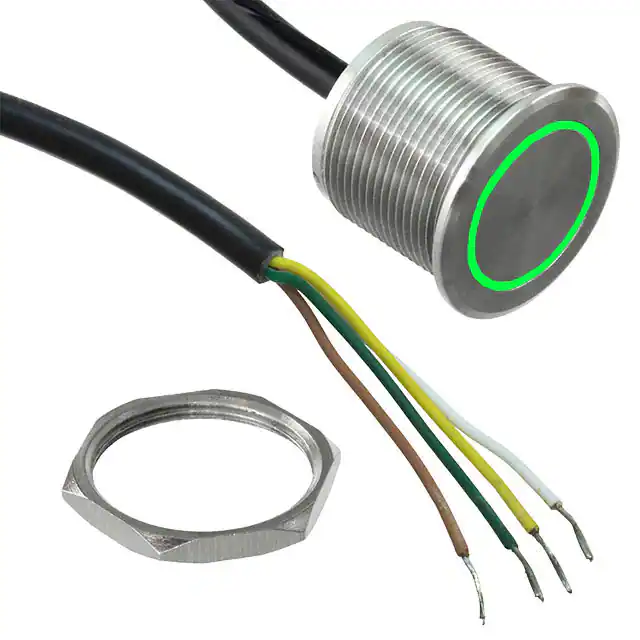

MPZI022/F/D1/24SWITCH PUSHBUTTON SPST-NO 1A 24V |
3,587 |
|
Datasheet | MPZ | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VAC/DC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 85°C |
|
XB4BW33B5HARMONY, 22MM ILLUMINATED PUSH B |
3,805 |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 24 VDC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
2PB11SWITCH PUSH 2XSPDT 5A 250V |
4,128 |
|
Datasheet | PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | - | -55°C ~ 85°C |
|
TL2201OAZBSWITCH PUSH DPDT 0.1A 30V |
2,876 |
|
Datasheet | TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
PN11SBNA03QESWITCH PUSH SPDT 0.2A 30V |
4,050 |
|
Datasheet | PN | Bag | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
LC2251EENPSWITCH PUSH DPDT 0.3A 30V |
290 |
|
Datasheet | LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
GPBS-800LSWITCH PUSHBUTTON DPDT 0.1A 30V |
1,899 |
|
Datasheet | GPBS | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
MX1A-C1NNSWITCH PUSH SPST-NO 0.01A 12V |
680 |
|
- |
MX | Bulk | Active | Panel Mount, Front | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | No Marking | Clear | - | - | PC Pin | - | - | Square - 14.00mm x 14.00mm | -10°C ~ 70°C |
|
D6F90 F2 LFSSWITCH PUSH SPST-NO 0.1A 32V |
4,931 |
|
Datasheet | D6 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Round, Button, Flush | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
