Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C7050AFBBSWITCH PUSHBUTTON DPST 16A 250V |
646 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | On-Off | 16A (AC) | 250 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 25.00mm Dia | - |
|
WS48M-A12RGBPBS 19MM SPST 0.1A 48V MOM METAL |
890 |
|
Datasheet | WS48M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO (DM) | Off-Mom | 10mA (DC) | - | 12 V | Round, Button | - | Silver | LED, Blue/Green/Red | 1.7, 2.6, 2.6 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.15mm Dia | -40°C ~ 85°C |
|
C936KRSWITCH PUSH SPST-NO 0.5A 250V |
1,249 |
|
Datasheet | 0936 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC), 250mA (DC) | 250 V | 250 V | Round, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 12.70mm Dia | - |
|
|
ATP16DL5306B4SA04GSWITCH ANTIVANDAL 16MM DOME RING |
386 |
|
Datasheet | ATP16 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | Power Symbol | Silver | LED, Red | 6 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
ULV4FWBSS531SWITCH PB SPDT 3A 250V |
157 |
|
Datasheet | ULV4 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 3 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
MPE106FSWITCH PUSHBUTTON SPDT 6A 125V |
1,682 |
|
Datasheet | MPE | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | Splash Proof | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
AV1911R112Q04SWITCH PUSHBUTTON SPDT 3A 250V |
138 |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1910E124Q04SWITCH PUSHBUTTON SPDT 3A 250V |
106 |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1911P312Q04SWITCH PUSHBUTTON SPDT 3A 250V |
105 |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
ULV4FW3SS331SWITCH PB SPDT 3A 250V |
134 |
|
Datasheet | ULV4 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 3 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
IPC3SAD6SWITCH PUSH SPST-NO 0.5A 48V |
388 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Square, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
LB15WKW01-CJSWITCH PUSHBUTTON SPDT 3A 125V |
270 |
|
Datasheet | LB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
ULV8F23SS635SWITCH PUSHBUTTON SPDT 3A 125V |
156 |
|
Datasheet | ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|

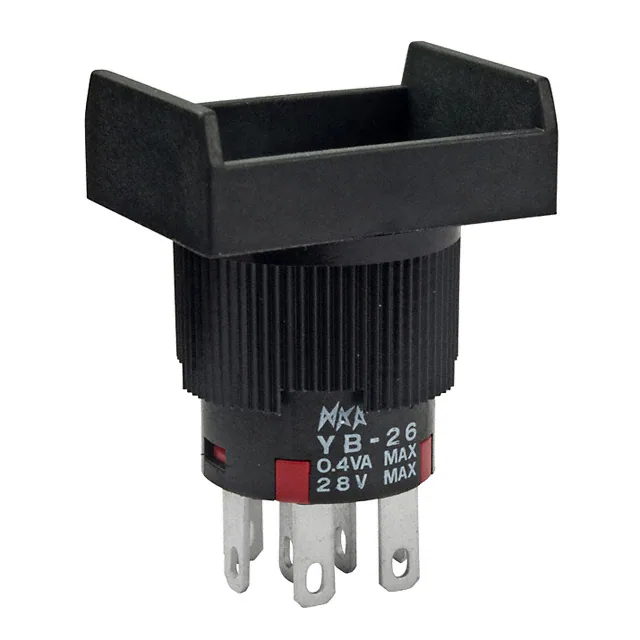

YB26RKG01SWITCH PUSH DPDT 0.4VA 28V |
171 |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
IPR3SAD5SWITCH PUSH SPST-NO 0.5A 48V |
712 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
MP0042/2SWITCH PUSH SPST-NO 2A 48V |
129 |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|

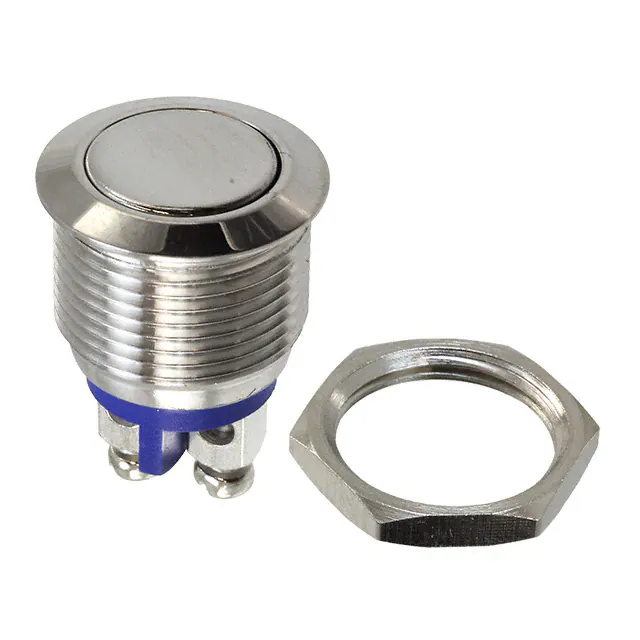

MP0042/1SWITCH PUSH SPST-NO 2A 48V |
124 |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
|
AV1920E124Q04SWITCH PUSHBUTTON DPDT 3A 250V |
300 |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1910P712Q04SWITCH PUSHBUTTON SPDT 3A 250V |
205 |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1921E712Q04SWITCH PUSHBUTTON DPDT 3A 250V |
114 |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
