Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPP28-360PWR XFMR LAMINATED 10VA TH |
888 |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 720mA, Series 360mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 34.93mm | 4000Vrms | 0.53 lb (240.4 g) |
|

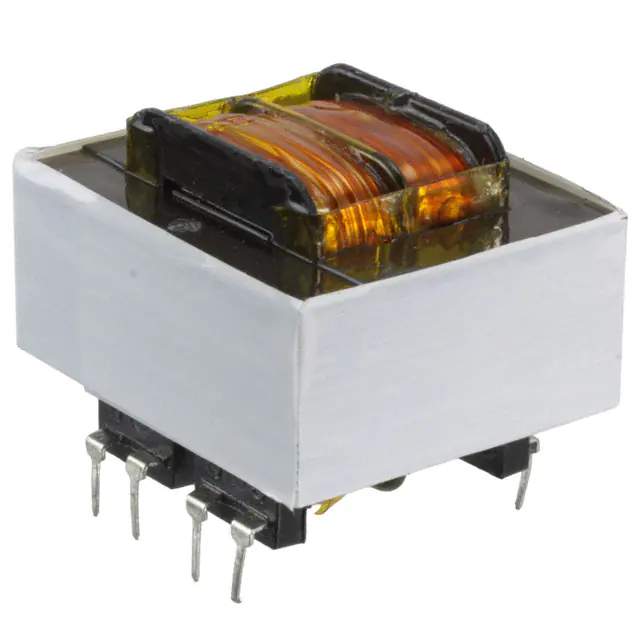

F24-500-C2PWR XFMR LAMINATED 12VA TH |
1,158 |
|
Datasheet | Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|

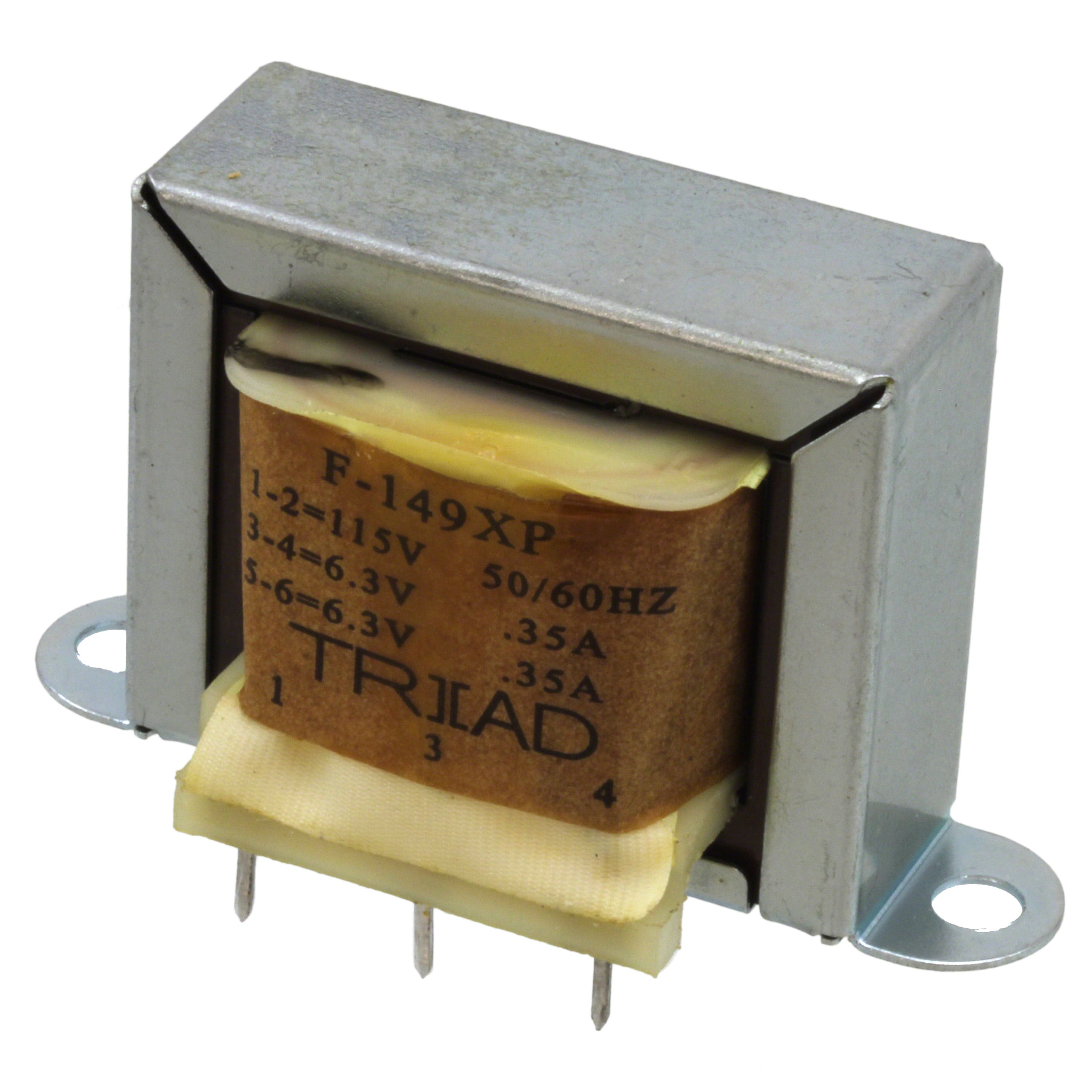

F-149XPPWR XFMR LAMINATED 4.5VA TH |
101 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 700mA, Series 350mA | Single | Dual | No | 4.5VA | Through Hole | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.469 lb (212.73 g) |
|
F20-600-C2PWR XFMR LAMINATED 12VA TH |
243 |
|
Datasheet | Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 1.2A, Series 600mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F4-12PWR XFMR LAMINATED 6VA CHAS MT |
135 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 12.6V | 500mA | Single | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 60.33mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|
FS36-170PWR XFMR LAMINATED 6VA TH |
322 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms | 0.44 lb (199.58 g) |
|
|
FS12-500PWR XFMR LAMINATED 6VA TH |
162 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 1A, Series 500mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms | 0.44 lb (199.58 g) |
|
|
FS16-400PWR XFMR LAMINATED 6VA TH |
121 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 800mA, Series 400mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms | 0.44 lb (199.58 g) |
|
|
VPP20-500PWR XFMR LAMINATED 10VA TH |
703 |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 1A, Series 500mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 34.93mm | 4000Vrms | 0.53 lb (240.4 g) |
|
FS12-1000PWR XFMR LAMINATED 12VA TH |
259 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 2A, Series 1A | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
