Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

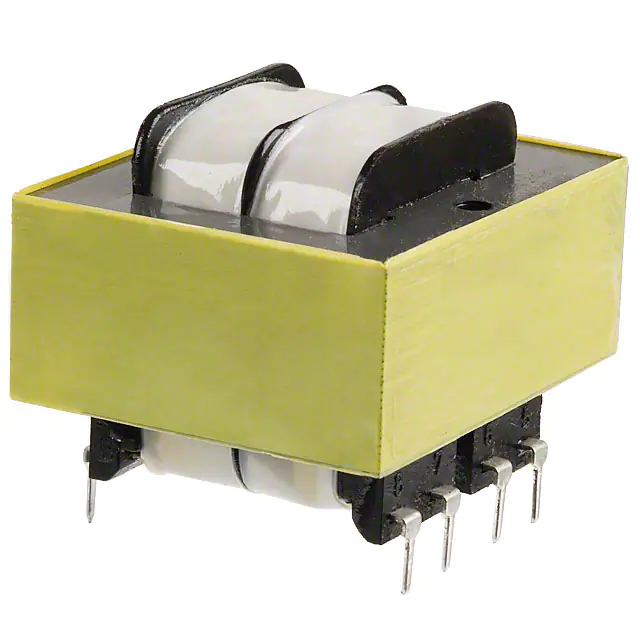

3FS-548PWR XFMR LAMINATED 12VA TH |
4,265 |
|
Datasheet | 3FS-5xx | Tube | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 500mA, Series 250mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms | - |
|
|
3FS-556PWR XFMR LAMINATED 12VA TH |
2,628 |
|
Datasheet | 3FS-5xx | Tube | Active | Laminated Core | 115V | Parallel 28V, Series 56V | Parallel 200mA, Series 100mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms | - |
|
PL10-36-130BPWR XFMR LAMINATED 10VA TH |
4,244 |
|
Datasheet | PL10-xx130B | Tube | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 560mA, Series 280mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.60mm L x 39.70mm W | 36.20mm | 3500Vrms | - |
|
|
PL10-20-130BPWR XFMR LAMINATED 10VA TH |
4,302 |
|
Datasheet | PL10-xx130B | Tube | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 1A, Series 500mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.60mm L x 39.70mm W | 36.20mm | 3500Vrms | - |
|
3FL230-10TRANSFORMER LOW PRO 115VAC .02A |
4,886 |
|
Datasheet | 3FL | Bulk | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 200mA, Series 100mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | - | - | 1500Vrms | - |
|
|
3FL120-20TRANSFORMER LOW PRO 60VAC .040A |
2,795 |
|
Datasheet | 3FL | Bulk | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 400mA, Series 200mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | - | - | 1500Vrms | - |
|
|
3FL40-60TRANSFORMER LOW PRO 20VAC 12A |
1,403 |
|
Datasheet | 3FL | Bulk | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 120mA, Series 60mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | - | - | 1500Vrms | - |
|
|
3FL56-45TRANSFORMER LOW PRO 28VAC .09A |
1,631 |
|
Datasheet | 3FL | Bulk | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 90mA, Series 45mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | - | - | 1500Vrms | - |
|
|
3FL88-28TRANSFORMER LOW PRO 44VAC .056A |
2,947 |
|
Datasheet | 3FL | Bulk | Active | Laminated Core | 115V, 230V | Parallel 44V, Series 88V | Parallel 56mA, Series 28mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | - | - | 1500Vrms | - |
|
3FL16-350PWR XFMR LAMINATED 6VA TH |
4,836 |
|
Datasheet | 3FL | Bulk | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 700mA, Series 350mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.60mm L x 39.60mm W | 21.60mm | 1500Vrms | - |
