Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL2.5-24-130BPWR XFMR LAMINATED 2.5VA TH |
3,193 |
|
Datasheet | PL2.5-xx-130B | Tube | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 28.60mm | 3500Vrms | - |
|
PLT20-32-130BPWR XFMR LAMINATED 20VA TH |
100 |
|
Datasheet | - | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 9.3V, Series 27.5V | Parallel 220mA, Series 1.5A | Dual | Dual | Yes | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.38mm | 3500Vrms | - |
|
3FS-212PWR XFMR LAMINATED 1.1VA TH |
3,568 |
|
Datasheet | 3FS-2xx | Tube | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 180mA, Series 90mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 25.40mm | 2500Vrms | - |
|
3FD-212PWR XFMR LAMINATED 1.1VA TH |
4,043 |
|
Datasheet | 3FD-2xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 180mA, Series 90mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 38.00mm | 2500Vrms | - |
|
3FS-324PWR XFMR LAMINATED 2.4VA TH |
4,512 |
|
Datasheet | 3FS-3xx | Tube | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
|

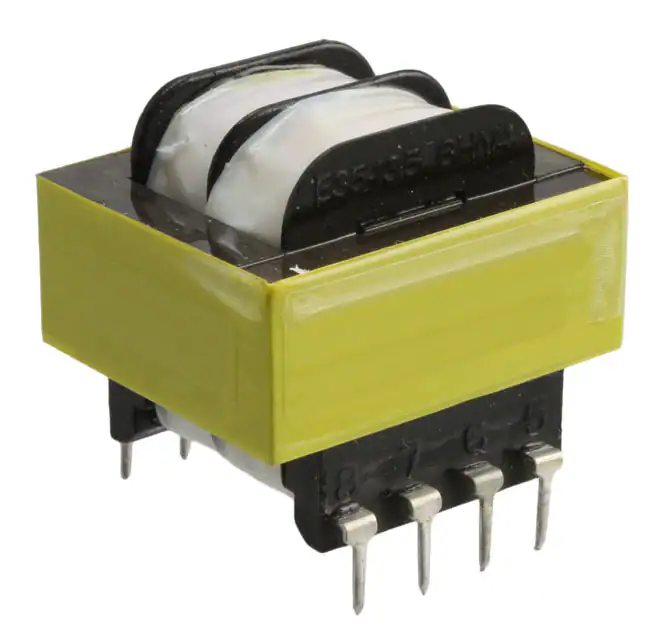

3FD-320PWR XFMR LAMINATED 2.4VA TH |
1,432 |
|
Datasheet | 3FD-3xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 240mA, Series 120mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
|
3FD-324PWR XFMR LAMINATED 2.4VA TH |
4,624 |
|
Datasheet | 3FD-3xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
|
3FD-520PWR XFMR LAMINATED 12VA TH |
2,250 |
|
Datasheet | 3FD-5xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms | - |
|
3FL24-250PWR XFMR LAMINATED 6VA TH |
4,779 |
|
Datasheet | 3FL | Tube | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.60mm L x 39.60mm W | 21.60mm | 1500Vrms | - |
|
3FD-220PWR XFMR LAMINATED 1.1VA TH |
3,776 |
|
Datasheet | 3FD-2xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 110mA, Series 55mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 25.40mm | 2500Vrms | - |
