DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

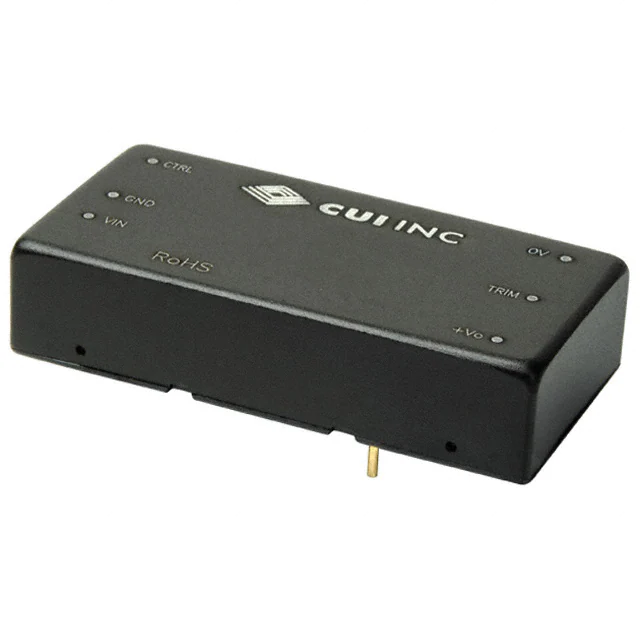

PYB15-Q24-S5DC DC CONVERTER 5V 15W |
144 |
|
Datasheet | PYB15 (15W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | - | Enable, Active High | EN | 55024 |
|
PYB10-Q24-D12DC DC CONVERTER +/-12V 10W |
1,446 |
|
Datasheet | PYB10 (10W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | - | Enable, Active High | EN | 55024 |
|
PRD15-Q48-S15-P-DDC DC CONVERTER 15V 15W |
4,646 |
|
Datasheet | PRD15 (15W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 1.1A | 15 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 85.3% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
PRD25-D48-S12-N-DDC DC CONVERTER 12V 25W |
2,452 |
|
Datasheet | PRD25 (25W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 2.1A | 25 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 87.5% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
PYBE30-Q24-S24HDC-DC ISOLATED, 30 W, 9~36 VDC I |
170 |
|
Datasheet | PYBE30 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 1.25A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | - | - | cURus, UL | 60950-1; 62368-1 |
|
|
PYBE30-Q24-S12HDC-DC ISOLATED, 30 W, 9~36 VDC I |
119 |
|
Datasheet | PYBE30 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | - | - | cURus, UL | 60950-1; 62368-1 |
|
|
PQD6-Q48-D5-DDC DC CONVERTER +/-5V 6W |
1,320 |
|
Datasheet | PQD6-D (6W) | 5-DIP Module | Bulk | Obsolete | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - |
|
|
PRD25-D48-S5-N-DDC DC CONVERTER 5V 25W |
3,637 |
|
Datasheet | PRD25 (25W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 5A | 25 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
NDM2Z-25V-A-001DC DC CONVERTER 0.6-3.3V |
1,110 |
|
Datasheet | Novum® NDM2Z | 15-SIP Module | Bulk | Obsolete | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 3.3V | - | - | - | 25A | - | - | ITE (Commercial) | Digital | -40°C ~ 125°C | 93.9% | - | - | Through Hole | - | - | - | - |
|
|
PQD6-Q24-D5-DDC DC CONVERTER +/-5V 6W |
1,181 |
|
Datasheet | PQD6-D (6W) | 5-DIP Module | Bulk | Obsolete | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - |
