DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRQ100W-Q48-S15-B-DDC DC CONVERTER 15V 101W |
1,342 |
|
Datasheet | PRQ100W-D (100W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 6.7A | 101 W | 2.25 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | Quarter Brick | - | CE | - |
|
PRD15-Q24-S15-P-DDC DC CONVERTER 15V 15W |
1,212 |
|
Datasheet | PRD15 (15W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1.1A | 15 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 85% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
PRD25-D48-S3-P-DDC DC CONVERTER 3.3V 25W |
4,024 |
|
Datasheet | PRD25 (25W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 7.5A | 25 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 89.5% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
PRD25-D48-S5-P-DDC DC CONVERTER 5V 25W |
1,801 |
|
Datasheet | PRD25 (25W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 5A | 25 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | - | Enable, Active High | - | - |
|

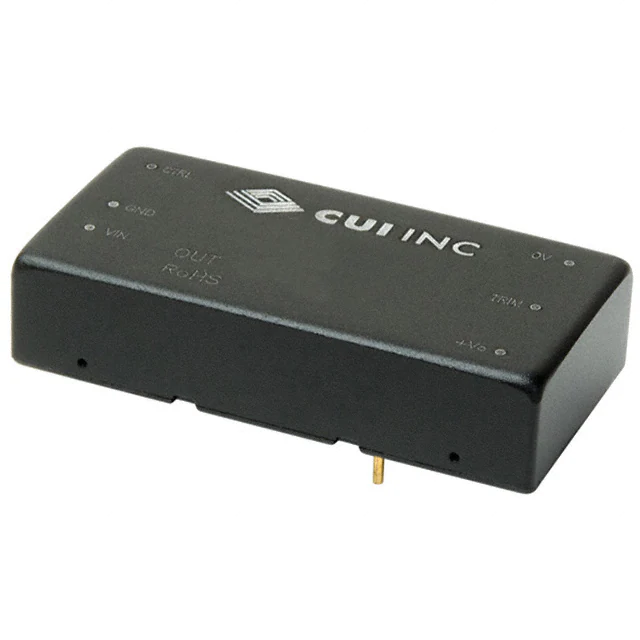

PYB20-Q24-S24DC DC CONVERTER 24V 20W |
1,479 |
|
Datasheet | PYB20 (20W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 834mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | - | Enable, Active High | EN | 55024 |
|
|
PQA50-D24-S15-DDC DC CONVERTER 15V 50W |
3,728 |
|
Datasheet | PQA50-D (50W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 3.333A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | - | Enable, Active High | - | - |
|
PQA50-D48-S15-DDC DC CONVERTER 15V 50W |
1,740 |
|
Datasheet | PQA50-D (50W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 3.333A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
PQA50-D48-S5-DDC DC CONVERTER 5V 50W |
4,518 |
|
Datasheet | PQA50-D (50W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | - | Enable, Active High | - | - |
|
PYB30-Q48-T512DC DC CONVERTER 5V +/-12V 30W |
312 |
|
Datasheet | PYB30 (30W) | 7-DIP Module | Tube | Obsolete | Isolated Module | 3 | 18V | 75V | 5V | 12V | -12V | - | 3A, 625mA, 625mA | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
PRQ150W-Q48-S12-B-DDC DC CONVERTER 12V 150W |
1,754 |
|
Datasheet | PRQ150W | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 12.5A | 150 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | Quarter Brick | - | CE | 62368-1 |
