DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT4110ADC DC CONVERTER 3.3V 15W |
3,994 |
|
Datasheet | PT4110 (15W) | 6-DIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 4A | 15 W | 1.5 kV | ITE (Commercial) | - | 0°C ~ 70°C | 75% | - | - | Through Hole | - | - | - | - |
|
|
PT4110CDC DC CONVERTER 3.3V 15W |
4,975 |
|
Datasheet | PT4110 (15W) | 8-SMD Module, 6 Leads | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 4A | 15 W | 1.5 kV | ITE (Commercial) | - | 0°C ~ 70°C | 75% | - | - | Surface Mount | - | - | - | - |
|

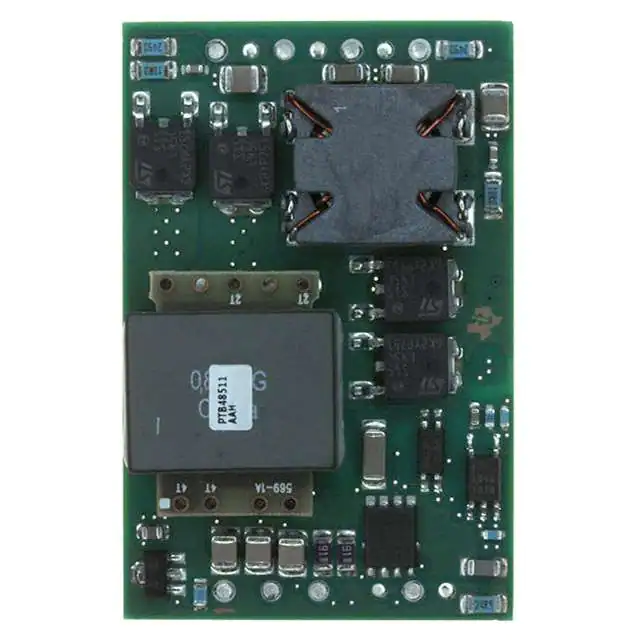

PTB48511AAHDC DC CONVERTER +/-5V 65W |
2,553 |
|
Datasheet | PTB4851x | 8-DIP Module | Tray | Not For New Designs | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 6.5A, 6.5A | 65 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - |
|
|
PTB48510BAHDC DC CONVERTER +/-12V 72W |
4,080 |
|
Datasheet | PTB4851x | 8-DIP Module | Tray | Obsolete | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 3A, 3A | 72 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | - | - | - | - |
|

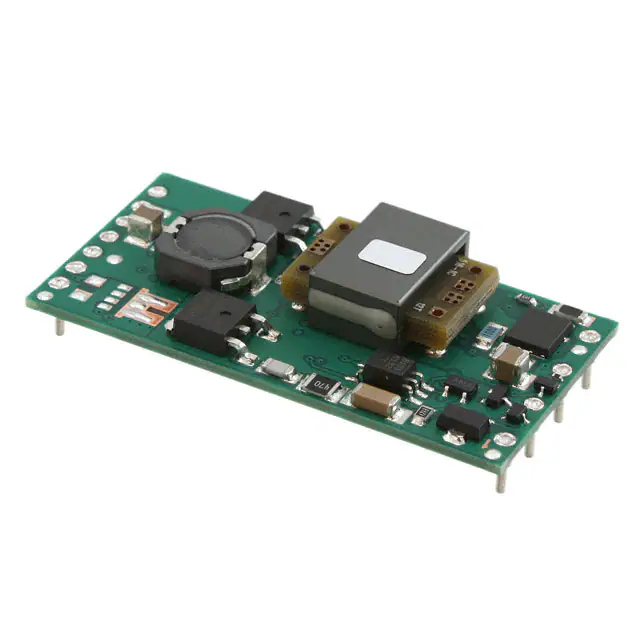

PTB48560CAHDC DC CONVERTER 9-13.2V 30W |
3,947 |
|
Datasheet | PTB48560 (30W) | 11-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 9 ~ 13.2V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | - | - | - | - |
|
PTB48560CASDC DC CONVERTER 9-13.2V 30W |
1,564 |
|
Datasheet | PTB48560 (30W) | 11-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 9 ~ 13.2V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 88% | - | - | Surface Mount | - | - | - | - |
|
PTV08T250WAHDC DC CONVERTER 0.8-3.6V |
3,221 |
|
Datasheet | PTV08T250W | 21-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 8V | 14V | 0.8 ~ 3.6V | - | - | - | 50A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | - | - | - | - |
|
|
PT3407ADC DC CONVERTER 1V 35W |
4,237 |
|
Datasheet | Excalibur™ PT3400 (35W) | 14-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 1V | - | - | - | 16A | 35 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 80% | - | - | Through Hole, Right Angle | - | - | - | - |
|
|
PT4402ADC DC CONVERTER 1.05-1.75V 75W |
3,609 |
|
Datasheet | Excalibur™ PT4400 (75W) | 21-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 1.05 ~ 1.75V | - | - | - | 20A | 75 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole, Right Angle | - | - | - | - |
|
|
PT7722ADC DC CONVERTER 4.5-7.6V |
1,575 |
|
Datasheet | PT7720 | 27-SIP Module, Horizontal | Tray | Obsolete | Non-Isolated PoL Module | 1 | 11V | 14V | 4.5 ~ 7.6V | - | - | - | 17A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 90% | - | - | Through Hole, Horizontal | - | - | - | - |
