DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT4123CDC DC CONVERTER 12V 20W |
1,785 |
|
Datasheet | PT4120 (20W) | 6-SMD Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 1.6A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - |
|
|
PT4125ADC DC CONVERTER 5.2V 20W |
1,182 |
|
Datasheet | PT4120 (20W) | 6-DIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 5.2V | - | - | - | 3.8A | 20 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
|
PT7748ADC DC CONVERTER 11-14V |
4,334 |
|
Datasheet | PT7720 | 27-SIP Module, Horizontal | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 11V | 14V | 11 ~ 14V | - | - | - | 17A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 90% | - | - | Through Hole, Horizontal | - | - | - | - |
|
|
PT4112ADC DC CONVERTER 15W |
3,937 |
|
- |
PT4110 (15W) | - | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | - | - | - | - | - | 15 W | 1.5 kV | ITE (Commercial) | - | - | - | - | - | Through Hole | - | - | - | - |
|
|
PT4116ADC DC CONVERTER 48V 15W |
2,528 |
|
- |
PT4110 (15W) | - | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | - | - | - | - | - | 15 W | 1.5 kV | ITE (Commercial) | - | - | - | - | - | Through Hole | - | - | - | - |
|
|
PT4801CDC DC CNVRTR 15V 3.3V 1.5V 25W |
2,254 |
|
Datasheet | Excalibur™ PT4801 (25W) | 20-SMD Module | Tray | Obsolete | Isolated Module | 3 | 36V | 75V | 15V | 3.3V | 1.5V | - | 1.25A, 3A, 2A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 81% | - | - | Surface Mount | - | - | - | - |
|
|
PT4801ADC DC CNVRTR 15V 3.3V 1.5V 25W |
4,618 |
|
Datasheet | Excalibur™ PT4801 (25W) | 20-SIP Module | Tray | Obsolete | Isolated Module | 3 | 36V | 75V | 15V | 3.3V | 1.5V | - | 1.25A, 3A, 2A | 25 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole, Right Angle | - | - | - | - |
|

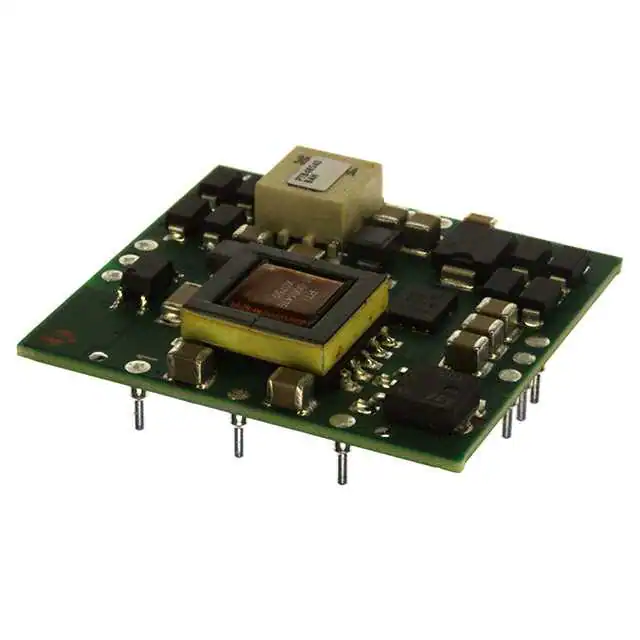

PTB48540BAHDC DC CONVERTER 3.3V 10W |
1,703 |
|
Datasheet | PTB48540 (10W) | 13-DIP Module | Tray | Not For New Designs | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 3.3V | - | - | - | 3A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - |
|
|
PT4565ADC DC CONVERTER 2V 30W |
2,511 |
|
Datasheet | Excalibur™ PT4560 (30W) | 19-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 2V | - | - | - | 8A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 69% | - | - | Through Hole, Right Angle | - | - | - | - |
|

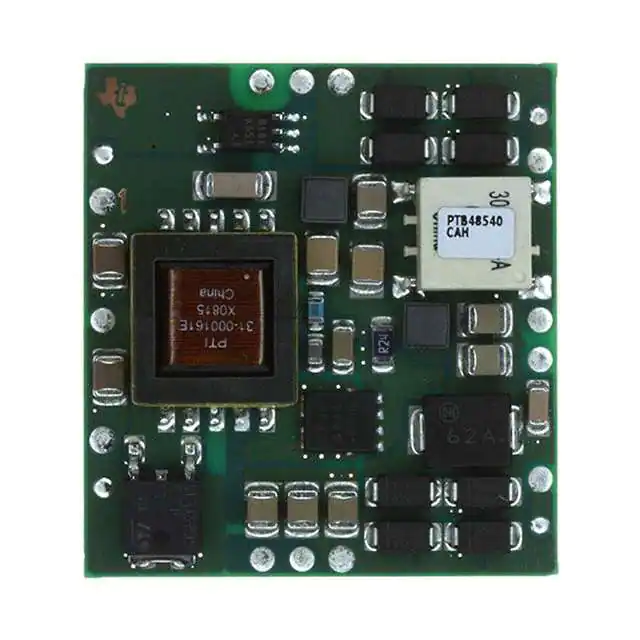

PTB48540AAHDC DC CONVERTER 5V 10W |
2,977 |
|
Datasheet | PTB48540 (10W) | 13-DIP Module | Tray | Not For New Designs | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
