DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT6501NDC DC CONVERTER 3.3V |
3,361 |
|
Datasheet | PT6500 | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 6V | 3.3V | - | - | - | 8A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - |
|
|
PT7615ADC DC CONVERTER 1.075-1.85V |
2,211 |
|
Datasheet | PT7610 | 27-SIP Module, Horizontal | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.075 ~ 1.85V | - | - | - | 20A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole, Horizontal | - | - | - | - |
|
PTB48560AAHDC DC CONVERTER 3.6-5.5V 30W |
2,807 |
|
Datasheet | PTB48560 (30W) | 11-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 3.6 ~ 5.5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - |
|

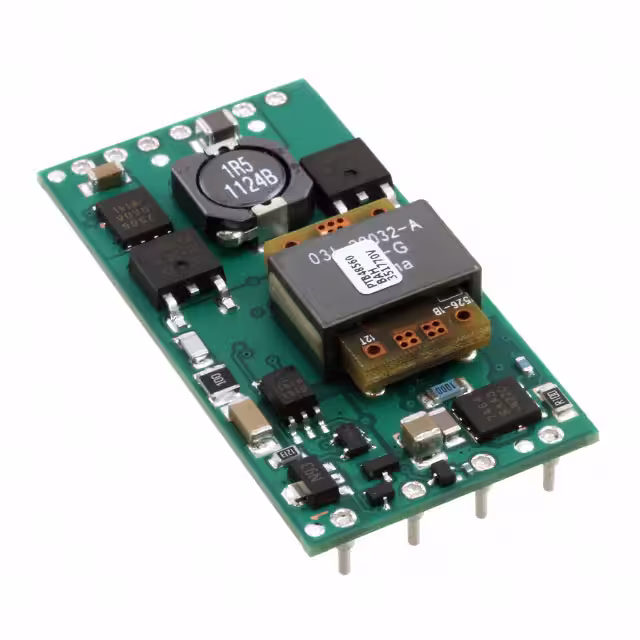

PTB48560BAHDC DC CONVERTER 1.8-3.6V 30W |
1,701 |
|
Datasheet | PTB48560 (30W) | 11-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 1.8 ~ 3.6V | - | - | - | 8A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
|
PT3406ADC DC CONVERTER 1.2V 35W |
4,316 |
|
Datasheet | Excalibur™ PT3400 (35W) | 14-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 1.2V | - | - | - | 16A | 35 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 82% | - | - | Through Hole, Right Angle | - | - | - | - |
|
|
PT4103ADC DC CONVERTER 15V 15W |
4,958 |
|
Datasheet | PT4100 (15W) | 6-DIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
|
PTQA430033P2ADDC DC CONVERTER 3.3V 100W |
3,103 |
|
Datasheet | PTQA430033 (100W) | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 30A | 100 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | - | - | - | - |
|

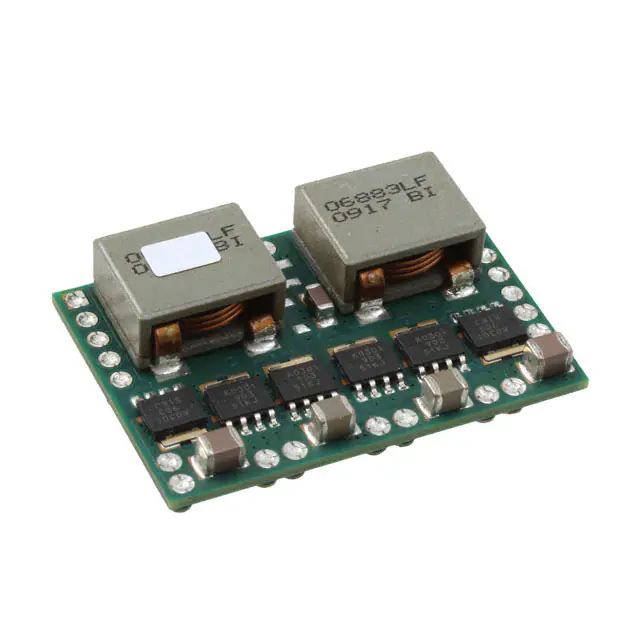

PTH08T255WASTDC DC CONVERTER 3-5.25V |
2,115 |
|
Datasheet | PTH08T255W | 22-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 8V | 14V | 3 ~ 5.25V | - | - | - | 40A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - |
|
|
PTH08T255WAZTDC DC CONVERTER 3-5.25V |
4,915 |
|
Datasheet | PTH08T255W | 22-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 8V | 14V | 3 ~ 5.25V | - | - | - | 40A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - |
|
|
PT4562ADC DC CONVERTER 5V 30W |
3,328 |
|
Datasheet | Excalibur™ PT4560 (30W) | 19-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 84% | - | - | Through Hole, Right Angle | - | - | - | - |
