Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MT226115RELAY GEN PURPOSE DPDT 10A 115V |
909 |
|
Datasheet | MT, SCHRACK | Tray | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 2500VA | 57.5 mA | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | Class B | 92 VAC | 46 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
PT571615RELAY GEN PURPOSE 4PDT 6A 115V |
3,471 |
|
Datasheet | PT, SCHRACK | Tube | Active | Through Hole | 115VAC | 4PDT (4 Form C) | 6 A | 400VAC - Max | 2400VA | 23.7 mA | Non Latching | Mechanical Indicator, Test Button | PC Pin | - | Class F | 92 VAC | 34.5 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
1393231-2RELAY GEN PURP |
4,803 |
|
Datasheet | RP II/1, SCHRACK | Bulk | Active | Through Hole | - | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | - | - | - | - | 8 ms | 2 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
V23057A0006A101RELAY GEN PURPOSE SPDT 5A 24V |
290 |
|
Datasheet | V23057, SCHRACK | Tray | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 20 mA | Non Latching | - | PC Pin | - | - | 16 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

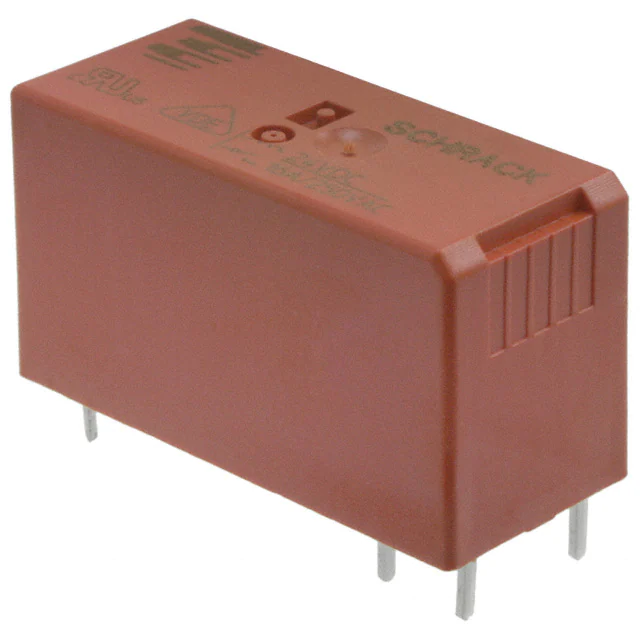

RTX3-1AT-B024RELAY GEN PURPOSE SPST 16A 24V |
4,603 |
|
Datasheet | RTX, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Nom | - | 27 mA | Latching, Single Coil | - | PC Pin | - | Class F | 18 VDC | - | - | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Tungsten (W) | General Purpose | - | - |
|
|
MT326024RELAY GEN PURPOSE 3PDT 10A 24V |
122 |
|
Datasheet | MT, SCHRACK | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 2500VA | 279 mA | Non Latching | Test Button | Plug In, 11 Pin (Octal) | - | Class B | 19.2 VAC | 9.6 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1432791-1RELAY GEN PURPOSE SPDT 30A 12V |
6,605 |
|
Datasheet | VF4 | Bulk | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | - | 133 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 7.8 VDC | 1.2 VDC | 8 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
1432866-1RELAY GEN PURPOSE SPST 40A 12V |
4,569 |
|
Datasheet | VF4 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | - | 133 mA | Non Latching | - | PC Pin | - | - | 7.8 VDC | 1.2 VDC | 8 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
18732B200RELAY GEN PURPOSE DPDT 20A 12V |
3,608 |
|
Datasheet | 187 | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 20 A | 240VAC, 28VDC - Max | 4800VA, 560W | 100 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RMD05730RELAY GEN PURPOSE SPST 30A 230V |
3,230 |
|
Datasheet | RMC/D, SCHRACK | Bulk | Obsolete | Chassis Mount | 230VAC | SPST-NO (DM) (1 Form X) | 30 A | 440VAC - Max | 13200VA | 30.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 184 VAC | 69 VAC | 20 ms | 20 ms | -45°C ~ 40°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
