Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT581730RELAY GEN PURPOSE 4PDT 6A 230V |
2,336 |
|
Datasheet | PT, SCHRACK | Tube | Active | Through Hole | 230VAC | 4PDT (4 Form C) | 6 A | 400VAC - Max | 2400VA | 11.8 mA | Non Latching | Mechanical Indicator, Test Button | PC Pin | - | Class F | 184 VAC | 69 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|

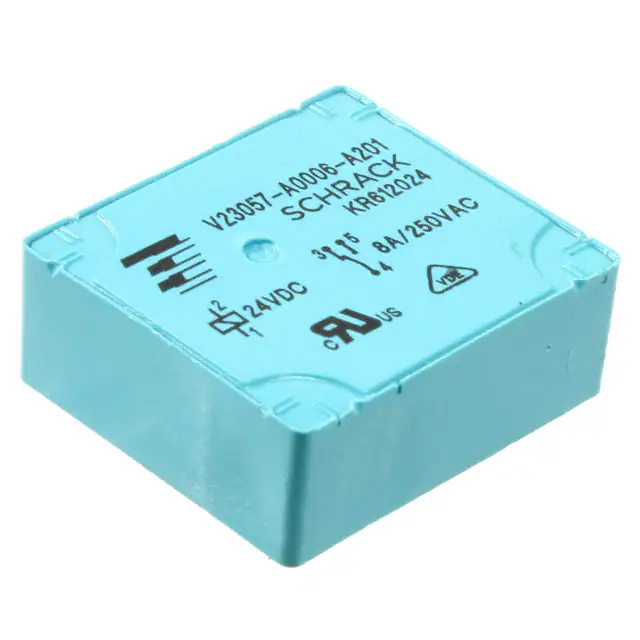

V23057-A0006-A201RELAY GEN PURPOSE SPDT 8A 24V |
909 |
|
Datasheet | V23057, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 20 mA | Non Latching | - | PC Pin | - | - | 16 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
V23057-A0002-A201RELAY GEN PURPOSE SPDT 8A 12V |
377 |
|
Datasheet | V23057, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 36.3 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
MT228024RELAY GEN PURPOSE DPDT 10A 24V |
3,920 |
|
Datasheet | MT, SCHRACK | Tray | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 2500VA | 279 mA | Non Latching | Lighted Indicator, Test Button | Plug In, 8 Pin (Octal) | - | Class B | 19.2 VAC | 9.6 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
V23057B0006A102RELAY GEN PURPOSE SPST 5A 24V |
400 |
|
Datasheet | V23057, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 400VAC - Max | 2000VA | 20 mA | Non Latching | - | PC Pin | - | - | 16 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
V23057A0001A101RELAY GENERAL PURPOSE SPDT 5A 6V |
388 |
|
Datasheet | V23057, SCHRACK | Tube | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 75 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.6 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

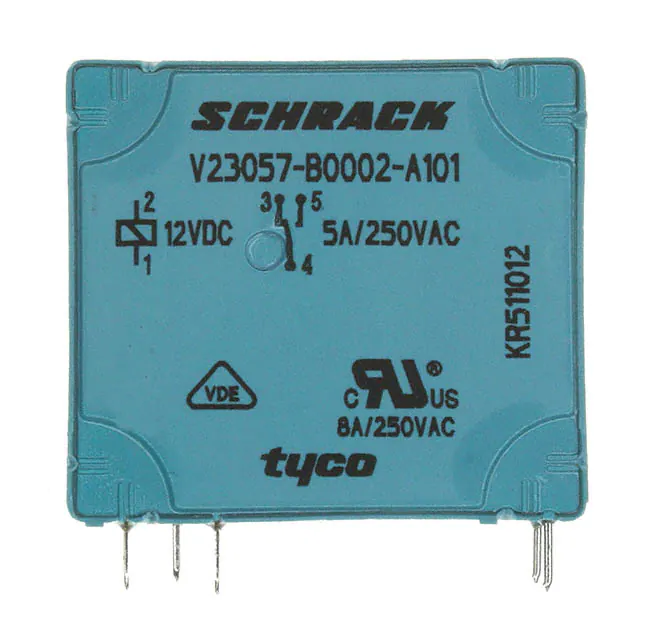

V23057B 2A101RELAY GEN PURPOSE SPDT 5A 12V |
364 |
|
Datasheet | V23057, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 36.3 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

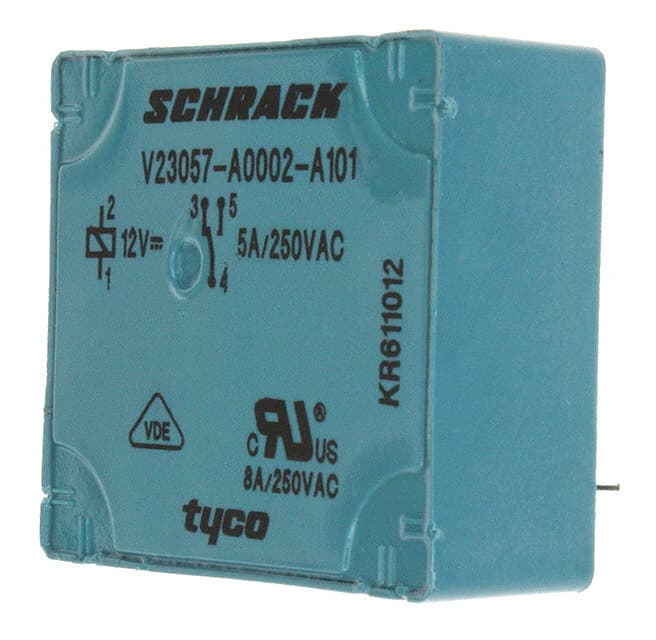

V23057A 2A101RELAY GEN PURPOSE SPDT 5A 12V |
315 |
|
Datasheet | V23057, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 36.3 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
4-1415011-1RELAY GEN PURPOSE DPDT 10A 125V |
1,200 |
|
Datasheet | MT, SCHRACK | Bulk | Obsolete | Socketable | 125VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 2500VA | - | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | Class B | 93.75 VDC | 12.5 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
4-1415540-6RELAY GEN PURPOSE DPDT 8A 24V |
2,226 |
|
Datasheet | XT, SCHRACK | Bulk | Obsolete | DIN Rail | 24VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 18 VAC | 3.6 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
