Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1887203-3RELAY GEN PURPOSE DPDT 8A 24V |
3,244 |
|
Datasheet | XT, SCHRACK | Tube | Obsolete | Through Hole | 24VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 19.2 VAC | 3.6 VAC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
1393203-1RELAY GEN PURP |
3,384 |
|
Datasheet | V23148, SCHRACK | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 7 A | 400VAC - Max | 2800VA | 89.3 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 5 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
T9AS1L22-12RELAY GEN PURPOSE SPST 30A 12V |
2,188 |
|
Datasheet | T9A | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PT52A012BRELAY GEN PURPOSE 4PDT 6A 12V |
3,788 |
|
Datasheet | PTH, SCHRACK | Bulk | Obsolete | Socketable | 12VDC | 4PDT (4 Form C) | 6 A | 250VAC - Max | 1500VA | 62.5 mA | Non Latching | - | Plug In | - | - | 9 VDC | 1.2 VDC | 20 ms | 20 ms | -45°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RP310110RELAY GEN PURPOSE SPDT 16A 110V |
3,378 |
|
Datasheet | RP II/1, SCHRACK | Bulk | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 4.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 77 VDC | 11 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
XT424024RELAY GEN PURPOSE DPDT 8A 24V |
224 |
|
Datasheet | XT, SCHRACK | Tube | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | - | Plug In | - | Class F | 16.8 VDC | 2.4 VDC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

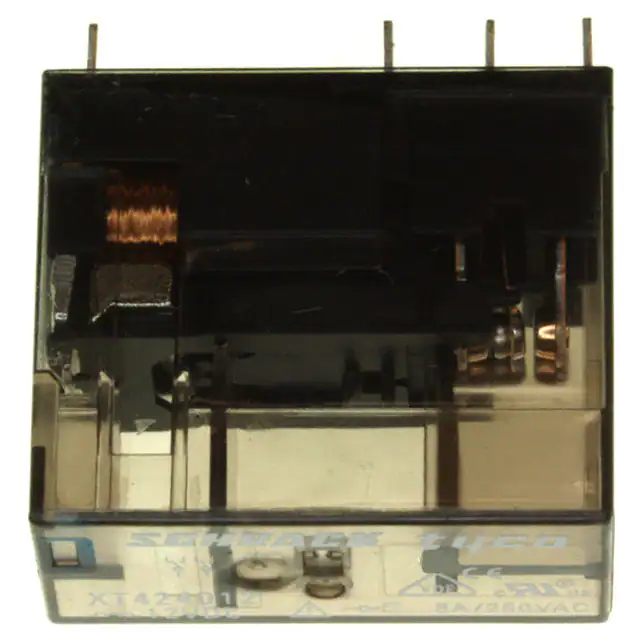

XT424012RELAY GEN PURPOSE DPDT 8A 12V |
132 |
|
Datasheet | XT, SCHRACK | Tube | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | - | Plug In | - | Class F | 8.4 VDC | 1.2 VDC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
T90N5D12-110RELAY GEN PURPOSE SPDT 20A 110V |
4,527 |
|
Datasheet | T90 | Bulk | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 4155VA | 8 mA | Non Latching | - | PC Pin | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
3-1416100-5RELAY GEN PURPOSE SPDT 6A 24V |
3,500 |
|
Datasheet | SNR, SCHRACK | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 7 mA | Non Latching | Socket Included | Spring Terminal | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
1887103-3XT314R24 |
291 |
|
Datasheet | XT, SCHRACK | Box | Obsolete | Socketable | 24VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | Lighted Indicator | Plug In | - | Class F | 19.2 VAC | 3.6 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
