Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1609034-5LINE FILTER 250VAC/VDC 10A CHASS |
2,219 |
|
Datasheet | SB | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.1mH |
|
1-6609020-1LINE FILTER 250VAC 20A CHASS MNT |
1,050 |
|
Datasheet | B | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 440µH |
|
3FB3-MSLINE FILTER 120V/277VAC 3A CHASS |
1,874 |
|
Datasheet | FB | Tray | Active | Single Phase | Single Stage | - | 120V, 277V | - | - | 3 A | 50 ~ 60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 13.77mH |
|
6VS1LINE FILTER 120V/250VAC 6A CHASS |
2,419 |
|
Datasheet | S | Bulk | Active | Single Phase | Two Stage | - | 120V, 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.8mH |
|
2-1609034-0LINE FILTER 250VAC/VDC 20A CHASS |
4,318 |
|
Datasheet | SB | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Threaded Post (8-32) | 900µH |
|
2-6609028-1LINE FILTER 250VAC 30A CHASS MNT |
1,575 |
|
Datasheet | K | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 30 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Threaded Post (8-32) | 690µH |
|
20FBL3LINE FILTER 277VAC/VDC 20A CHASS |
4,864 |
|
Datasheet | FB | Bulk | Active | Single Phase | Single Stage | 277V | 277V | - | - | 20 A | 50/60Hz | Lighting | - | -10°C ~ 50°C | Chassis Mount | Wire Leads | - |
|

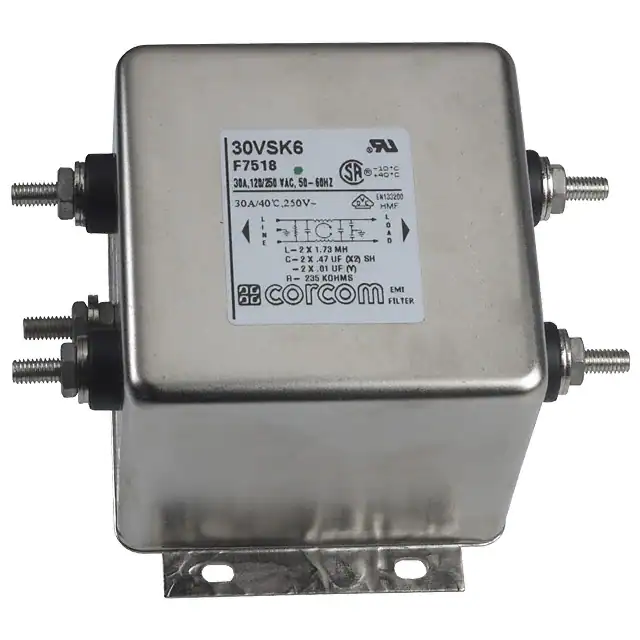

1-6609036-4LINE FILTER 250VAC 30A CHASS MNT |
1,616 |
|
Datasheet | SK | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 30 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Threaded Post (10-32) | 1.73mH |
|

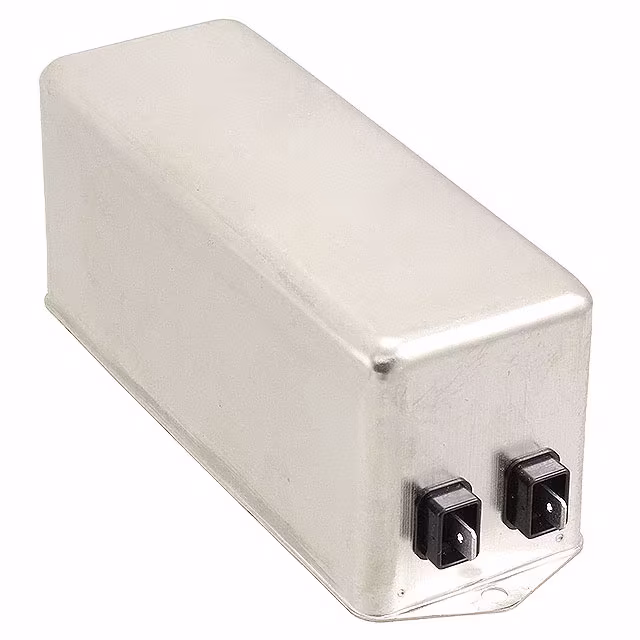

4-1609037-2LINE FILTER 250VAC 20A CHASS MNT |
4,917 |
|
Datasheet | HQ | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Quick Connect | 6mH |
|

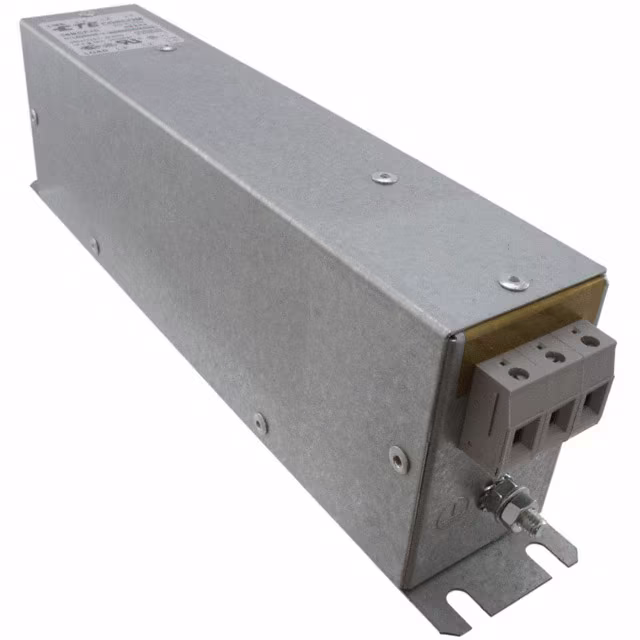

16BCF10LINE FILTER 16A CHASSIS MOUNT |
4,106 |
|
Datasheet | BCF | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 16 A | 50/60Hz | Inverters, Power Drive Systems | UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | - |
