Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-1609091-3LINE FILTER 180A CHASSIS MOUNT |
2,035 |
|
Datasheet | BCF | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 180 A | 50/60Hz | Inverters, Power Drive Systems | UR, VDE | -10°C ~ 50°C | Chassis Mount | Threaded Post (M10) | - |
|
1609989-7LINE FILTER 100A CHASSIS MOUNT |
2,212 |
|
Datasheet | BCF | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 100 A | 50/60Hz | Inverters, Power Drive Systems | UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | - |
|

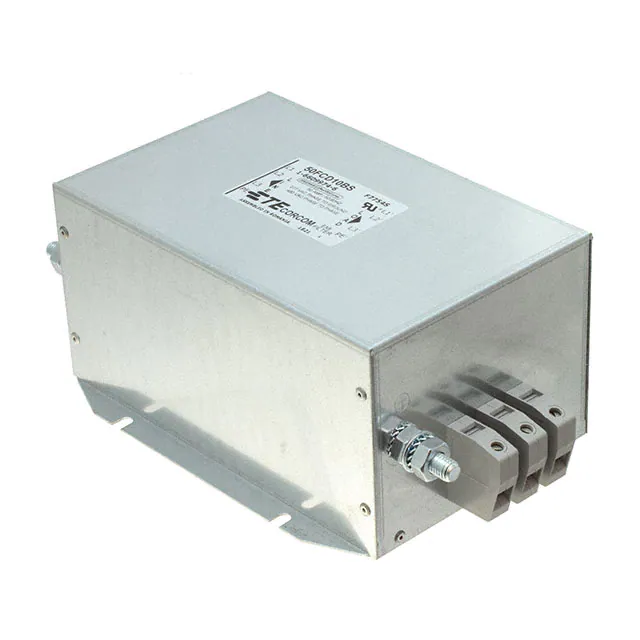

1-6609974-6LINE FILTER 50A CHASSIS MOUNT |
1,892 |
|
Datasheet | FCD | Box | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 50 A | 50/60Hz | Regenerative Motor Drive | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
100BCF10RLINE FILTER 100A CHASSIS MOUNT |
4,574 |
|
Datasheet | BCFXR | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 100 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | 800µH |
|
130BCF10RLINE FILTER 130A CHASSIS MOUNT |
4,660 |
|
Datasheet | BCFXR | Tray | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 130 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | 550µH |
|
130BCF6RLINE FILTER 130A CHASSIS MOUNT |
3,863 |
|
Datasheet | BCFXR | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 130 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 50°C | Chassis Mount | Threaded Post (M5) | 550µH |
|
6609070-7LINE FILTER 80A CHASSIS MOUNT |
3,327 |
|
Datasheet | FCD | Box | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 80 A | 50/60Hz | Regenerative Motor Drive | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
|
6609070-9LINE FILTER 150A CHASSIS MOUNT |
4,493 |
|
Datasheet | FCD | Bulk | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 150 A | 50/60Hz | Regenerative Motor Drive | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
|
1-6609974-7LINE FILTER 80A CHASSIS MOUNT |
3,592 |
|
Datasheet | FCD | Box | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 80 A | 50/60Hz | Regenerative Motor Drive | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
|
1609989-9LINE FILTER 180A CHASSIS MOUNT |
3,116 |
|
Datasheet | BCF | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 180 A | 50/60Hz | Inverters, Power Drive Systems | UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | - |
