Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6609070-8LINE FILTER 110A CHASSIS MOUNT |
1,401 |
|
Datasheet | FCD | Box | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 110 A | 50 ~ 60Hz | Regenerative Motor Drive | UL | -10°C ~ 40°C | Chassis Mount | Terminal Block, Threaded Post (M10) | - |
|

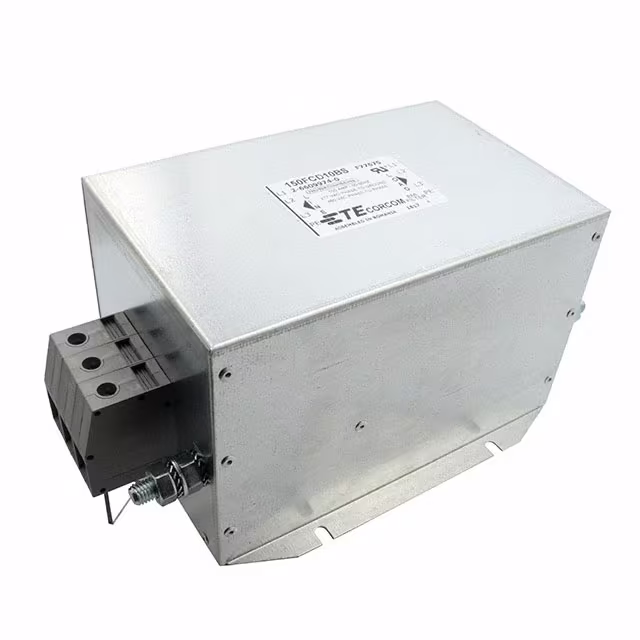

2-6609974-0LINE FILTER 150A CHASSIS MOUNT |
3,122 |
|
Datasheet | FCD | Box | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 150 A | 50/60Hz | Regenerative Motor Drive | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
250APS12LLINE FLTR 520VAC 250A CHASS MNT |
1,175 |
|
Datasheet | APS | Bulk | Active | Three Phase (Delta) | Three Stage | - | 520V | - | - | 250 A | 50/60Hz | General Purpose | - | -10°C ~ 50°C | Chassis Mount | Terminal Post | - |
|
6609067-7LINE FILTER 150A CHASSIS MOUNT |
4,360 |
|
Datasheet | AYC | Box | Last Time Buy | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 150 A | 50/60Hz | General Purpose | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
|
3-6609974-3LINE FILTER 150A CHASSIS MOUNT |
1,993 |
|
Datasheet | FCD | Bag | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 150 A | 50/60Hz | Regenerative Motor Drive | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
180BCF10RLINE FILTER 180A CHASSIS MOUNT |
3,952 |
|
Datasheet | BCFXR | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 180 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | 340µH |
|
180BCF6RLINE FILTER 180A CHASSIS MOUNT |
4,779 |
|
Datasheet | BCFXR | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 180 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 50°C | Chassis Mount | Threaded Post (M5) | 340µH |
|
|
6609977-6LINE FILTER 180A CHASSIS MOUNT |
3,041 |
|
Datasheet | AYC | Bulk | Last Time Buy | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 180 A | 50/60Hz | General Purpose | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
400APS12PLINE FLTR 690VAC 400A CHASS MNT |
1,202 |
|
Datasheet | APS | Bulk | Active | Three Phase (Delta) | Three Stage | - | 690V | - | - | 400 A | 50/60Hz | General Purpose | - | -10°C ~ 50°C | Chassis Mount | Terminal Post | - |
|
|
3-6609974-6LINE FILTER 230A CHASSIS MOUNT |
4,854 |
|
Datasheet | FCD | Box | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 230 A | 50/60Hz | Regenerative Motor Drive | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
