Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6231101304F30MM FLTPMI RD 3VDC W/TERM |
4,329 |
|
Datasheet | 623 | Bag | Active | LED | Red | - | - | DC | 3V | 15mA | Round | 1.18" (30.00mm) | 13.80mm Dia | Round with Flat Top | 200mcd | - | - | Screw Terminal | IP66/IP67, NEMA 4X | - |
|
|
6231201304F30MM FLTPMI GRN 6VDC W/TERM |
4,858 |
|
Datasheet | 623 | Bag | Active | LED | Green | - | - | DC | 3V | 15mA | Round | 1.18" (30.00mm) | 13.80mm Dia | Round with Flat Top | 250mcd | - | - | Screw Terminal | IP66/IP67, NEMA 4X | - |
|
6563303303FLED 1/2" DOME YLW 12VDC LEAD |
4,997 |
|
Datasheet | 656 | Bag | Active | LED | Yellow | Yellow | Clear | DC | 12V | 18mA | Round | 0.50" (12.70mm) | - | Round with Domed Top | 1080mcd | - | - | Wire Leads - 5.84" (148.21mm) | IP66/IP67, NEMA 4X | - |
|
6221303304F22MM FLTPMI YLW 12VDC W/TERM |
1,731 |
|
Datasheet | 622 | Bag | Active | LED | Yellow | - | - | DC | 12V | 15mA | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 350mcd | - | - | Screw Terminal | IP66/IP67, NEMA 4X | - |
|
|
658-2425-303FPMI, DOME, RB, 8-30VDC |
1,185 |
|
Datasheet | 658 | Bulk | Active | LED | Blue, Red | White | Diffused | DC | 12V ~ 30V | 20mA | Round | 1.26" (32.00mm) | 24.90mm Dia | Round with Domed Top | 400mcd Blue, 1000mcd Red | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
6303803304F30MM DOM BL 12VDC W/TERM |
1,259 |
|
Datasheet | 630 | Bag | Active | LED | Blue | - | - | DC | 12V | 60mA | Round | 1.18" (30.00mm) | 24.89mm Dia | Round with Domed Top | 480mcd | - | - | Screw Terminal | - | - |
|
556150A304F1"FLAT RED LED PMI CONST INT |
4,385 |
|
Datasheet | 556 | Bag | Active | LED | Red | Red | Clear | DC | 18V ~ 48V | 8.2mA | Round | 1.00" (25.4mm) | - | Round with Flat Top | 400mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
6301803304F30MM FLT BL 12VDC W/TERM |
2,546 |
|
Datasheet | 630 | Bag | Active | LED | Blue | - | - | DC | 12V | 60mA | Round | 1.18" (30.00mm) | - | Round with Flat Top | 1200mcd | - | - | Screw Terminal | - | - |
|

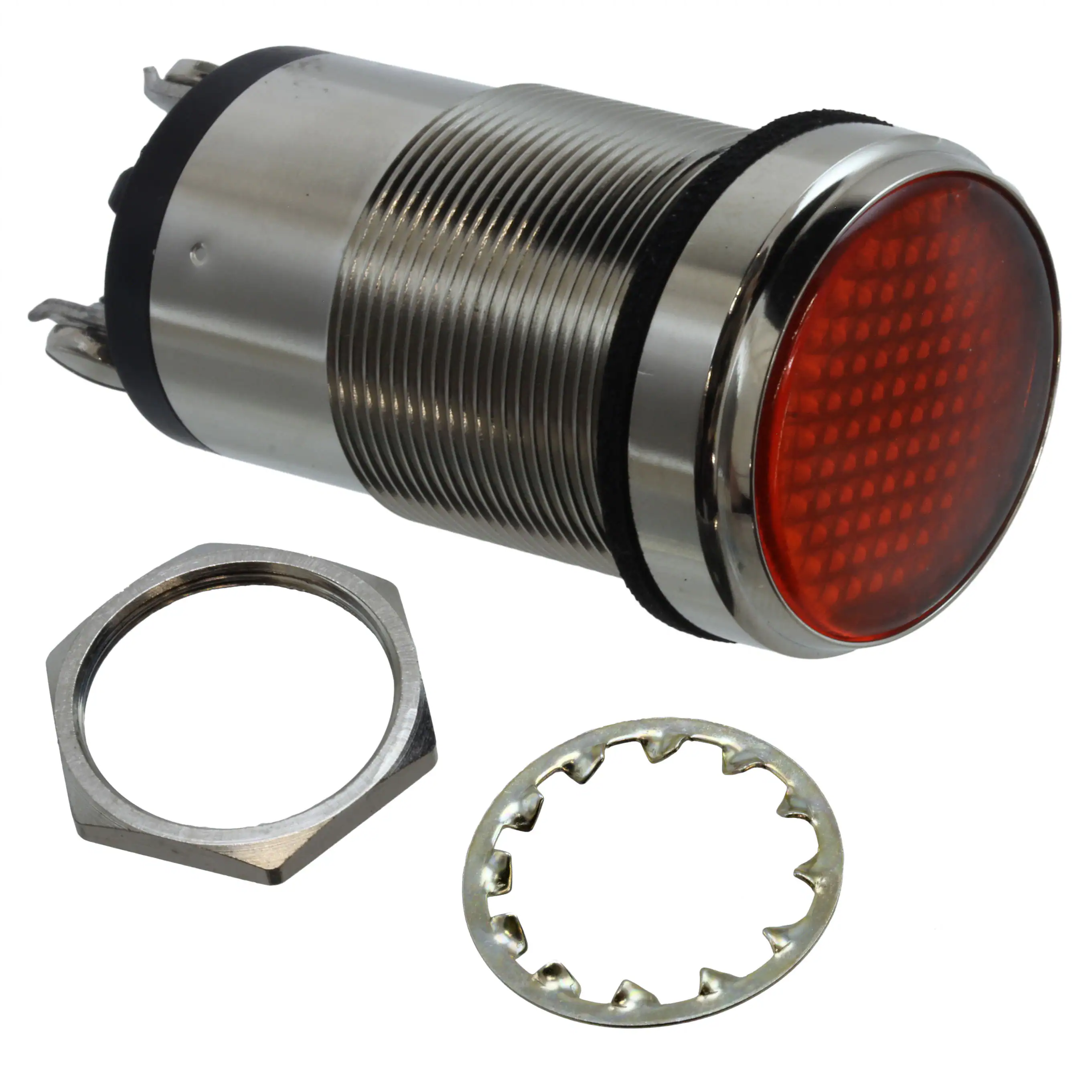

5561903304FLED PNL MT 1" 12V WT FLAT ORN |
2,128 |
|
Datasheet | 556 | Bulk | Active | LED | Orange | - | - | DC | 12V | 95mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561503314FLED 1" RED PMI 12V CLR FLAT LEN |
3,182 |
|
Datasheet | 556 | Bulk | Active | LED | Red | Colorless | Clear | DC | 12V | 95mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
