Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

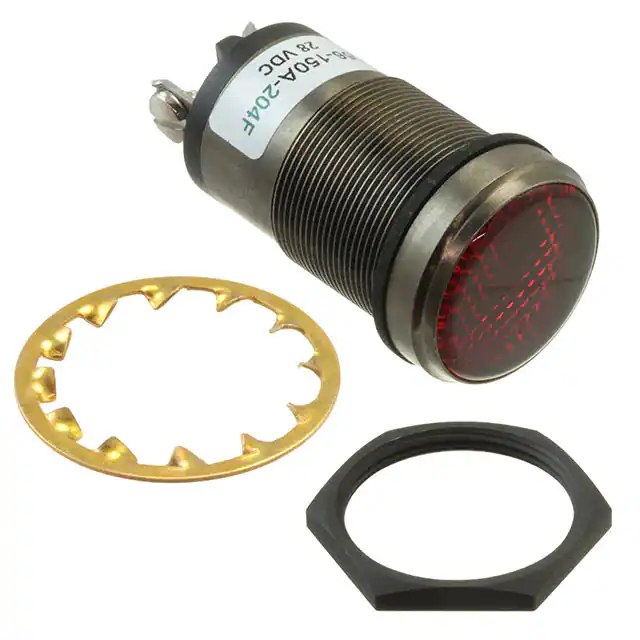

556150A204F1"FLAT RED LED PMI CONST INT |
1,670 |
|
Datasheet | 556 | Bag | Active | LED | Red | Red | Clear | DC | 18V ~ 48V | 8.2mA | Round | 1.00" (25.4mm) | - | Round with Flat Top | 400mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

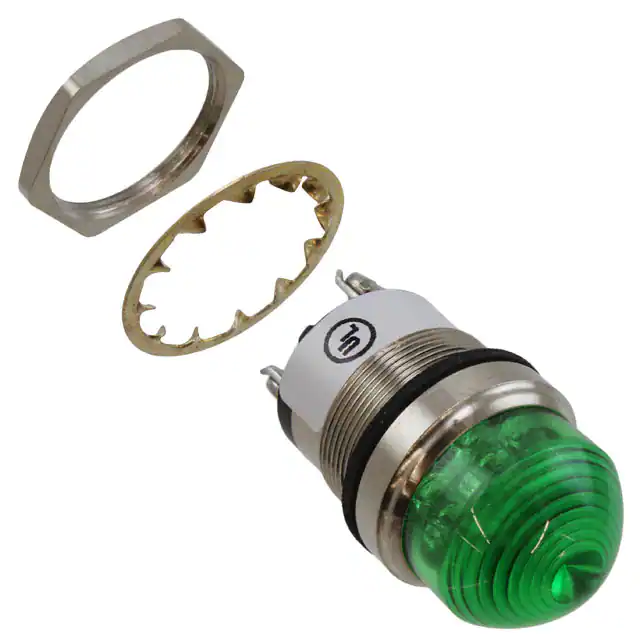

5563604324FLED 1" DOME GRN PMI 24V C1D2 |
1,371 |
|
Datasheet | 556 | Bulk | Active | LED | Green | - | - | DC | 24V | - | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561004304FLED PNL MT 1" 24V WT FLAT WHITE |
1,429 |
|
Datasheet | 556 | Bulk | Active | LED | White | - | - | DC | 24V | 32mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561609304FLED PNL MT 1" 230VAC WT FLAT GRN |
4,879 |
|
Datasheet | 556 | Bulk | Active | LED | Green | - | - | AC | 230V | 7mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
80010300333504INDICATOR PRESS TO TEST |
2,832 |
|
Datasheet | 800 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

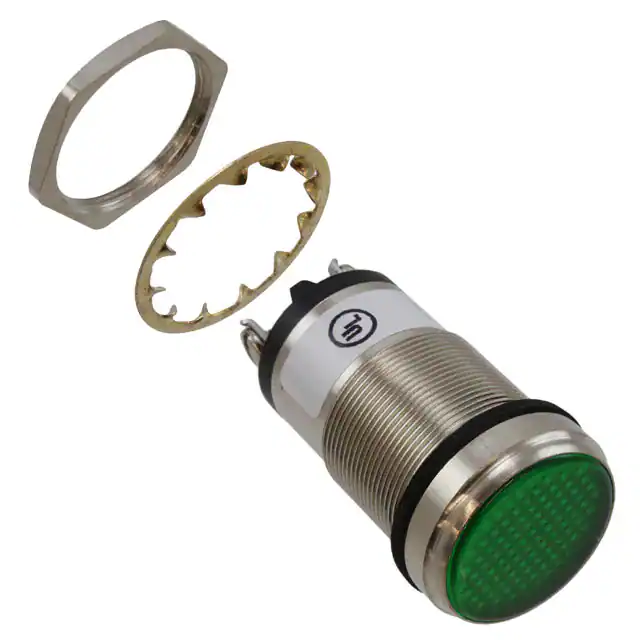

5561609324FLED 1" FLAT GREEN 230V C1D2 |
1,281 |
|
Datasheet | 556 | Bulk | Active | LED | Green | - | - | AC | 230V | 7mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
80417100331504PMI PRESS TO TEST RED T-3 1/4 |
1,812 |
|
- |
804 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
80110300333504INDICATOR PRESS TO TEST |
3,712 |
|
Datasheet | 801 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
6201113317F620 LED PMI 8MM RG 12VDC |
4,552 |
|
Datasheet | 620 | Bag | Active | LED | Green, Red | Colorless | Clear | DC | 12V Green, 3V Red | 15mA Green, 15mA Red | Round | 0.32" (8.00mm) | 5.59mm Dia | Round with Flat Top | 1500mcd Green, 1000mcd Red | - | - | Wire Leads - 6.000" (152.40mm) | IP67 | - |
|
|
6063215150F6 MM GREEN LED PMI HT 28V |
4,403 |
|
Datasheet | 606 | Bag | Active | LED | Green | - | - | DC | 28V | 15mA | Round | 0.24" (6.20mm) | - | Round with Flat Top | 2500mcd | - | - | Wire Leads - 6" (152.40mm) | IP67 | - |
