Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5581101027FLED PMI SNAP-IN RED PVC FREE |
1,555 |
|
Datasheet | 558 | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 1.7V | 7mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 2.3mcd | 635nm | 60° | Wire Leads - 14" (355.60mm) | - | - |
|
5593001001FLED PANEL RED/GRN SNAP-IN STR |
4,003 |
|
Datasheet | 559 | Bulk | Active | LED | Green, Red | - | - | Vf (Typ), If (Max) | 2.1V Green, 1.8V Red | 30mA Green, 40mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd Green, 90mcd Red | 565nm Green, 660nm Red | 60° | PC Pin | - | - |
|
6531103103F1/2" FLT SNAP RD 12VDC W/LEADS |
3,214 |
|
Datasheet | 653 | Bag | Active | LED | Red | - | - | DC | 12V | 20mA | Round | 0.58" (14.70mm) | 14.35mm Dia | Round with Domed Top | 845mcd | - | - | Wire Leads - 4.8" (121.92mm) | - | - |
|
6531203103F1/2" FLT SNAP GN 12VDC W/LEADS |
2,215 |
|
Datasheet | 653 | Bag | Active | LED | Green | - | - | DC | 12V | 20mA | Round | 0.58" (14.70mm) | 14.35mm Dia | Round with Domed Top | 600mcd | - | - | Wire Leads - 4.8" (121.92mm) | - | - |
|
6531204103F1/2" FLT SNAP GN 24VDC W/LEADS |
4,432 |
|
Datasheet | 653 | Bag | Active | LED | Green | - | - | DC | 24V | 20mA | Round | 0.58" (14.70mm) | 14.35mm Dia | Round with Domed Top | 600mcd | - | - | Wire Leads - 4.8" (121.92mm) | - | - |
|
6541203103F1/2" FLT SNAP GN 12VDC W/LEADS |
2,886 |
|
Datasheet | 654 | Bag | Active | LED | Green | - | - | DC | 12V | 20mA | Round | 0.66" (16.70mm) | 16.35mm Dia | Round with Domed Top | 600mcd | - | - | Wire Leads - 4.8" (121.92mm) | - | - |
|
6541303103F1/2" FLT SNAP YW 12VDC W/LEADS |
2,568 |
|
Datasheet | 654 | Bag | Active | LED | Yellow | - | - | DC | 12V | 20mA | Round | 0.66" (16.70mm) | 16.35mm Dia | Round with Domed Top | 465mcd | - | - | Wire Leads - 4.8" (121.92mm) | - | - |
|
6762311110FLED PANEL INDCATOR ORANGE 2V |
3,185 |
|
Datasheet | 676 | Bag | Active | LED | Orange | - | - | DC | 2V | 20mA | Round | 0.24" (6.20mm) | - | - | 7810mcd | - | - | PC Pin | - | - |
|

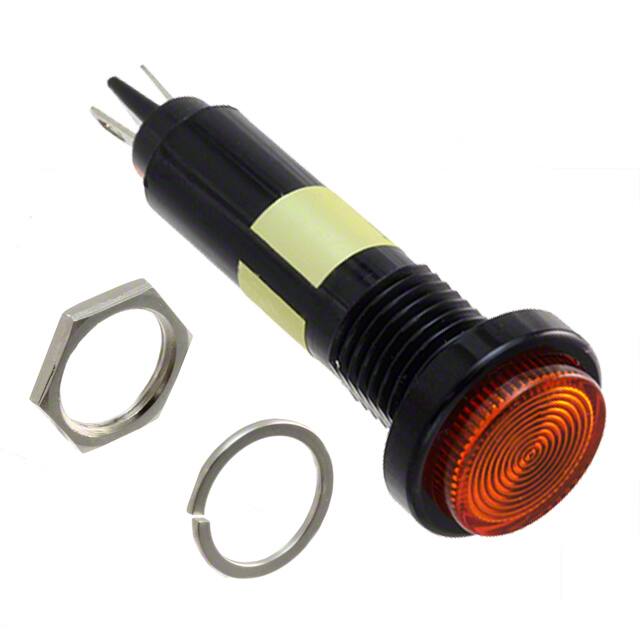

6803332133F10MM HO/O PMI-12VDC |
3,926 |
|
Datasheet | 680 | Bag | Active | LED | Yellow | - | - | DC | 12V | 30mA | Round | 0.41" (10.41mm) | - | - | 1455mcd | - | - | Solder Lug | - | - |
|

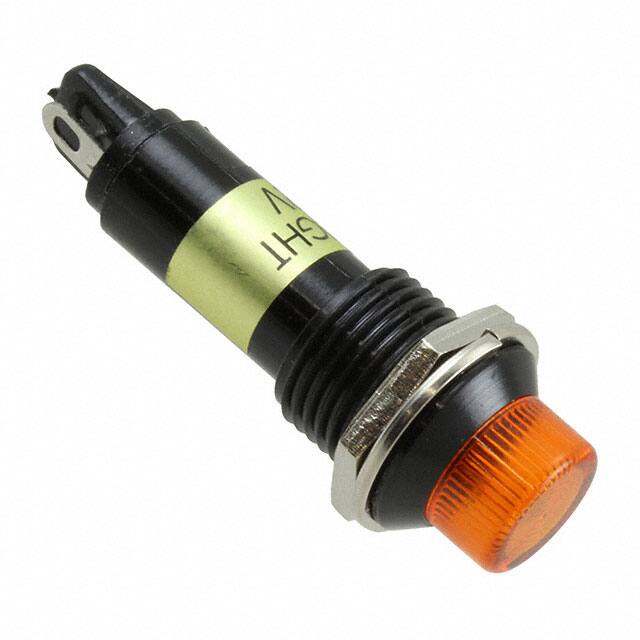

6823332123F12MM HO/O PMI-6VDC |
2,890 |
|
Datasheet | 682 | Bag | Active | LED | Yellow | Yellow | - | DC | 6V | 20mA | Round | 0.49" (12.45mm) | - | Round with Flat Top | 510mcd | - | - | Solder Lug | - | - |
