Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5561504304FLED PNL MT 1" 24V WT FLAT RED |
1,726 |
|
Datasheet | 556 | Bulk | Active | LED | Red | - | - | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561604314FLED 1" GRN PMI 24V CLR FLAT LEN |
4,614 |
|
Datasheet | 556 | Bulk | Active | LED | Green | Colorless | Clear | DC | 24V | 32mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563603304FLED PNL MT 1" 12V WT DOME GRN |
3,248 |
|
Datasheet | 556 | Bulk | Active | LED | Green | Green | Fresnel | DC | 12V | 60mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563607304FLED 1" DOME GREEN PMI 125VDC |
2,139 |
|
Datasheet | 556 | Bulk | Active | LED | Green | - | - | DC | 125V | 10mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563504324FLED 1" DOME RED PMI 24V C1D2 |
3,851 |
|
Datasheet | 556 | Bulk | Active | LED | Red | - | - | DC | 24V | - | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563503324FLED 1" DOME RED PMI 12V C1D2 |
3,838 |
|
Datasheet | 556 | Bulk | Active | LED | Red | - | - | DC | 12V | - | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

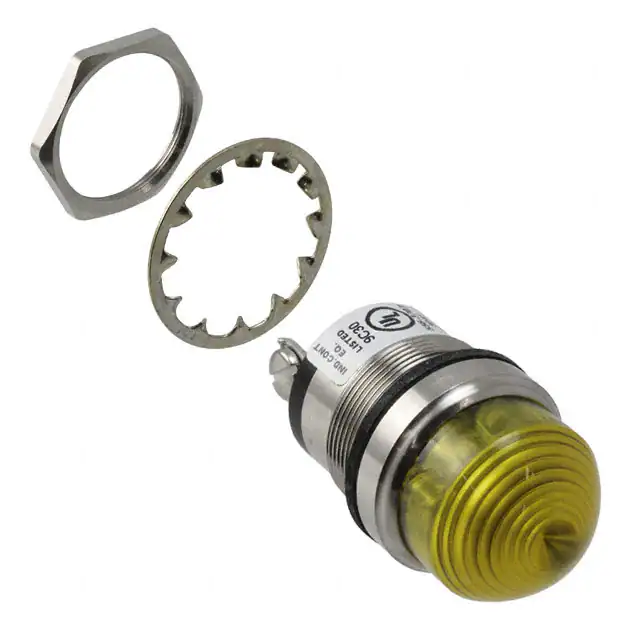

5563707304FLED PNL MT 1" WT DOME YELLOW |
2,638 |
|
Datasheet | 556 | Bulk | Active | LED | Yellow | - | - | DC | 125V | 95mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

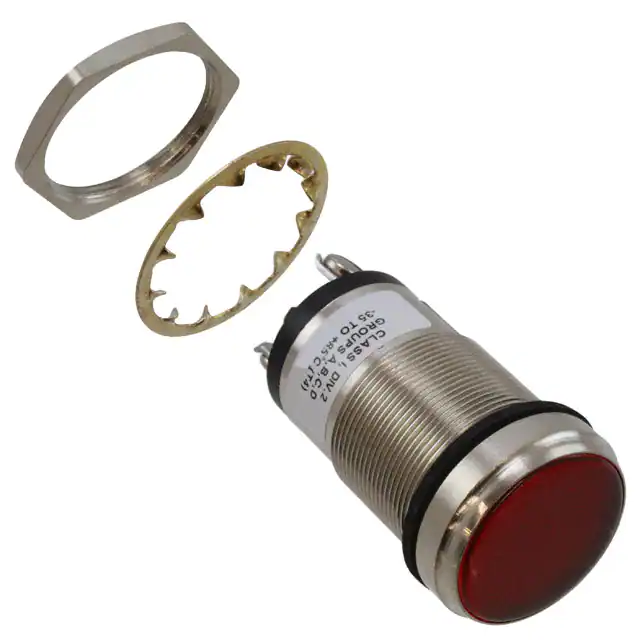

5561503324FLED 1" FLAT RED PMI 12V C1D2 |
4,676 |
|
Datasheet | 556 | Bulk | Active | LED | Red | - | - | DC | 12V | 95mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

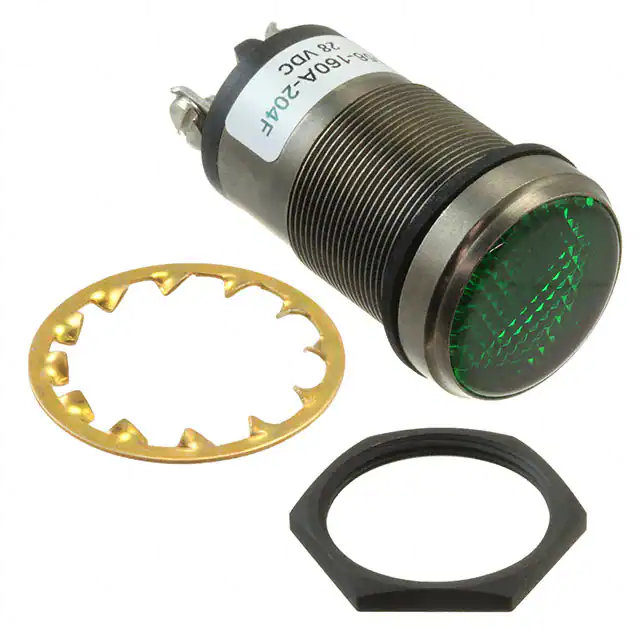

556160A204F1"FLAT GRN LED PMI CONST INT |
2,937 |
|
Datasheet | 556 | Bag | Active | LED | Green | Green | Clear | DC | 18V ~ 48V | 7.4mA | Round | 1.00" (25.4mm) | - | Round with Flat Top | 170mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

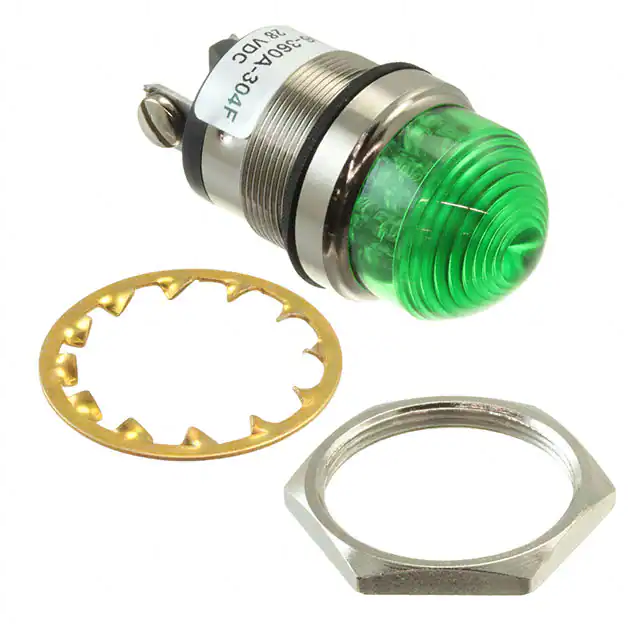

556360A304F1"DOME GRN LED PMI CONST INT |
3,866 |
|
Datasheet | 556 | Bag | Active | LED | Green | Green | Clear | DC | 18V ~ 48V | 7.4mA | Round | 1.00" (25.4mm) | - | Round with Domed Top | 170mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
