Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5590202027FLED PMI SNAP-IN GRN PVC FREE |
269 |
|
Datasheet | 559 | Bulk | Active | LED | Green | - | - | DC | 5V | 15mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd | 565nm | 60° | Wire Leads - 14" (355.60mm) | - | - |
|
5580102003FLED PANEL IND RED DIFF SNAP-IN |
4,552 |
|
Datasheet | 558 | Bulk | Active | LED | Red | - | - | DC | 5V | 10mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 29mcd | 635nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
559-8100-007FRECT PMI IND, R, 14" LEADS |
562 |
|
Datasheet | 559 | Bag | Active | LED | Red | - | - | DC | 2V | 20mA | Rectangle | 0.22" x 0.14" (5.49mm x 3.53mm) | 3.99mm x 2.00mm | Rectangle with Flat Top | 125mcd | 635nm | 104° | Wire Leads - 14" (355.60mm) | - | - |
|
5593001007FLED PANEL RED/GRN SNAP-IN 14"LD |
533 |
|
Datasheet | 559 | Bulk | Active | LED | Green, Red | - | - | Vf (Typ), If (Max) | 2.1V Green, 1.8V Red | 30mA Green, 40mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd Green, 90mcd Red | 565nm Green, 660nm Red | 60° | Wire Leads - 14" (355.60mm) | - | - |
|
|
559-8300-007FRECT PMI IND, Y, 14" LEADS |
182 |
|
Datasheet | 559 | Bag | Active | LED | Yellow | - | - | DC | 2.1V | 20mA | Rectangle | 0.22" x 0.14" (5.49mm x 3.53mm) | 3.99mm x 2.00mm | Rectangle with Flat Top | 140mcd | 585nm | 104° | Wire Leads - 14" (355.60mm) | - | - |
|

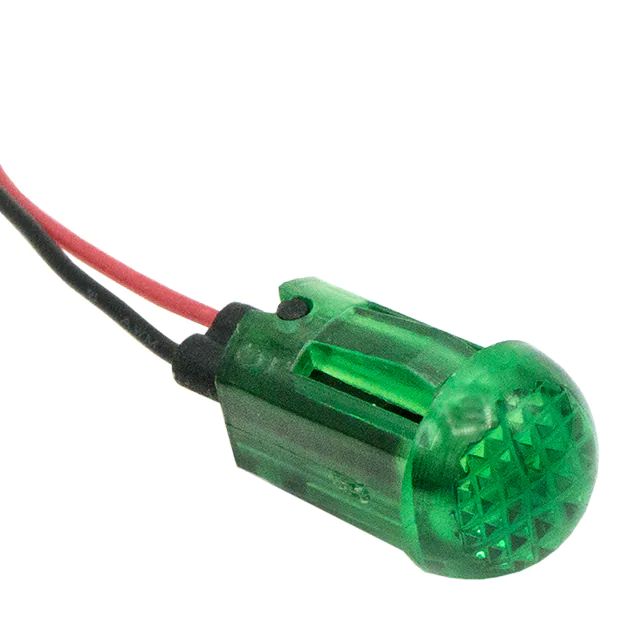

6552204103FLED PANEL INDICATOR GREEN 24V |
639 |
|
Datasheet | 655 | Bag | Active | LED | Green | - | - | DC | 24V | 20mA | Round | 0.50" (12.70mm) | 13.97mm Dia | Round with Domed Top | 140mcd | - | - | Wire Leads - 4.54" (115.32mm) | - | - |
|
5583001007FIND SNAP-IN PANEL MNT RED/GREEN |
418 |
|
Datasheet | 558 | Bulk | Active | LED | Green, Red | - | - | Vf (Typ), If (Max) | 2V Green, 1.9V Red | 20mA Green, 20mA Red | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 8.7mcd Green, 5.6mcd Red | 565nm Green, 630nm Red | 200° | Wire Leads - 14" (355.60mm) | - | - |
|
6551104104FLED PANEL INDICATOR RED 24V |
515 |
|
Datasheet | 655 | Bag | Active | LED | Red | - | - | DC | 24V | 20mA | Round | 0.50" (12.70mm) | 16.00mm Dia | Round with Flat Top | 70mcd | - | - | Solder Lug | - | - |
|
5580102027FLED PMI SNAP-IN RED PVC FREE |
244 |
|
Datasheet | 558 | Bulk | Active | LED | Red | - | - | DC | 5V | 12mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 29mcd | 635nm | 60° | Wire Leads - 14" (355.60mm) | - | - |
|
6081131110FLED PNL IND 8MM RED LOCKWASH/NUT |
766 |
|
Datasheet | 608 | Bulk | Active | LED | Red | - | - | Vf (Typ), If (Max) | 2V | 15mA | Round | 0.33" (8.38mm) | 9.91mm Dia | Round with Domed Top | 20mcd | - | - | - | - | - |
