Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

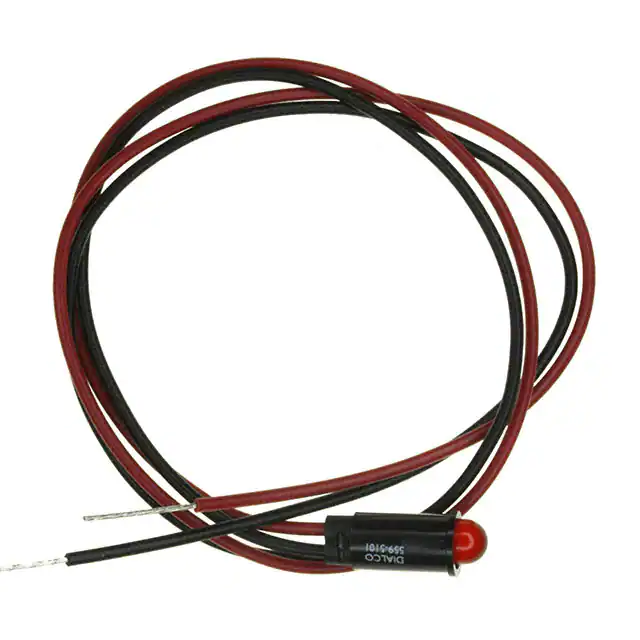

5595101007FLED SNAP-IN PANEL 5MM 2.1V RED |
5,283 |
|
Datasheet | 559 | Bulk | Active | LED | Red | - | Diffused | Vf (Typ), If (Max) | 2.1V | 25mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 34mcd | 650nm | 50° | Wire Leads - 14" (355.60mm) | - | - |
|
5580301003FLED PANEL IND YLW DIFF SNAP-IN |
606 |
|
Datasheet | 558 | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 16mcd | 585nm | 40° | Wire Leads - 6" (152.40mm) | - | - |
|
5580101003FLED PANEL IND RED DIFF SNAP-IN |
265 |
|
Datasheet | 558 | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 650nm | - | Wire Leads - 6" (152.40mm) | - | - |
|
5580201007FIND SNAP-IN PANEL MNT 563NM GRN |
668 |
|
Datasheet | 558 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 25mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 16mcd | 563nm | 40° | Wire Leads - 14" (355.60mm) | - | - |
|
5580201003FLED PANEL IND GRN DIFF SNAP-IN |
476 |
|
Datasheet | 558 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 25mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 16mcd | 563nm | 40° | Wire Leads - 6" (152.40mm) | - | - |
|
5581101007FLED PANEL IND RED DIFF SNAP-IN |
302 |
|
Datasheet | 558 | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 1.8V | 7mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 1.8mcd | 635nm | - | Wire Leads - 14" (355.60mm) | - | - |
|
5591301003FLED PANEL GRN DIFF 1.8V SNAP 6"L |
934 |
|
Datasheet | 559 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 1.8V | 7mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 1.8mcd | 565nm | 50° | Wire Leads - 6" (152.40mm) | - | - |
|

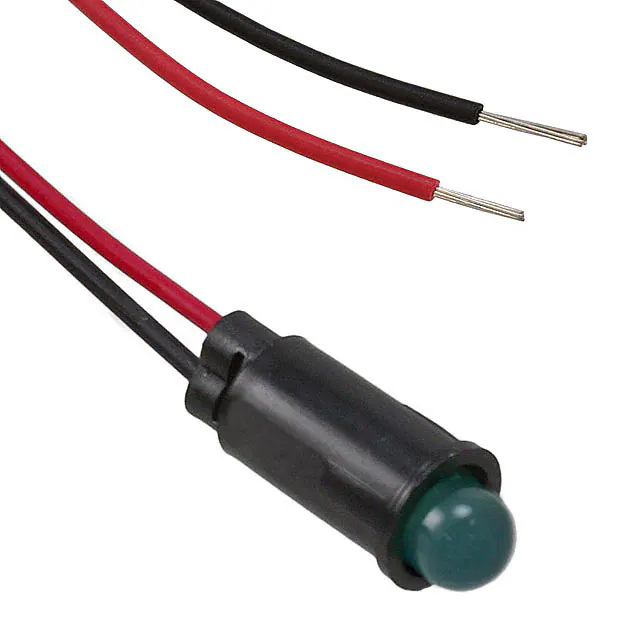

5591301007FLED PANEL GRN DIFF SNAP-IN 14"LD |
695 |
|
Datasheet | 559 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 1.8V | 7mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 1.8mcd | 565nm | 50° | Wire Leads - 14" (355.60mm) | - | - |
|
5590202003FLED PANEL GRN DIFF 5V SNAP 6"LD |
185 |
|
Datasheet | 559 | Bulk | Active | LED | Green | Green | Diffused | DC | 5V | 15mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd | 565nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
5591101007FLED PANEL RED DIFF SNAP-IN 14"LD |
480 |
|
Datasheet | 559 | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 1.7V | 7mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 2.3mcd | 635nm | 50° | Wire Leads - 14" (355.60mm) | - | - |
