Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

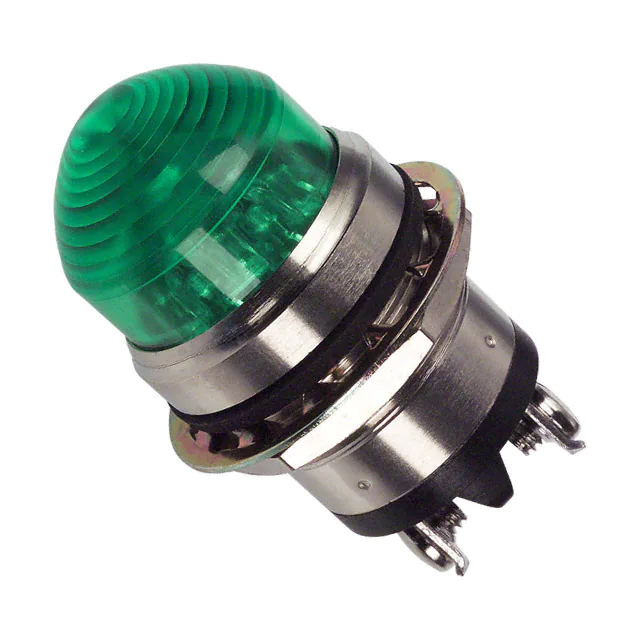

5563603304LED PNL MT 1" 12V WT DOME GRN |
1,964 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Green | Green | Fresnel | DC | 12V | 60mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5563604304LED PNL MT 1" 24V WT DOME GRN |
3,800 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Green | Green | Fresnel | DC | 24V | 32mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5563605304LED PNL MT 1" 125VAC WT DOME GRN |
4,112 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Green | Green | Fresnel | AC | 125V | 9.5mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

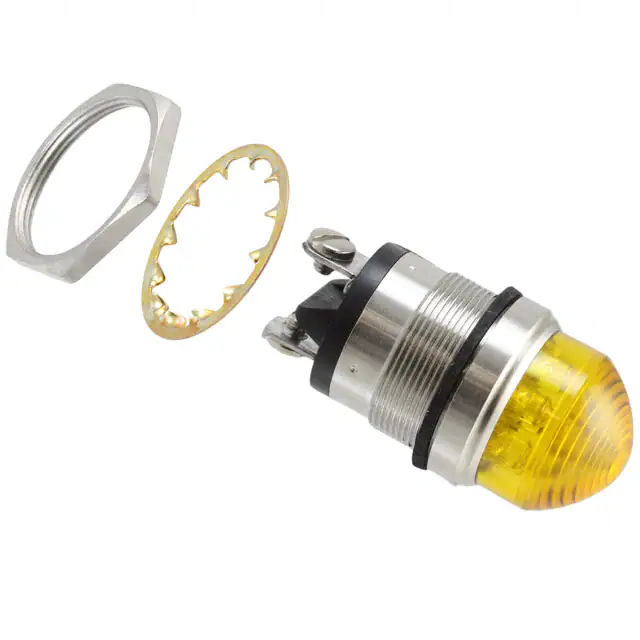

5563703304LED PNL MT 1" 12V WT DOME YEL |
4,157 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Yellow | Yellow | Fresnel | DC | 12V | 95mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563704304LED PNL MT 1" 24V WT DOME YEL |
3,452 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Yellow | Yellow | Fresnel | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

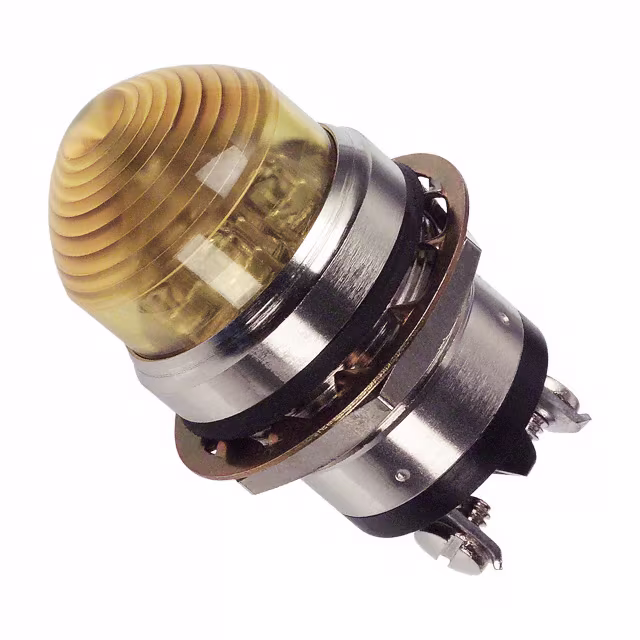

5563705304LED PNL MT 1" 125VAC WT DOME YEL |
3,790 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Yellow | Yellow | Fresnel | AC | 125V | 10.5mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563803304LED PNL MT 1" 12V WT DOME BLUE |
3,593 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Blue | Blue | Fresnel | DC | 12V | 60mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5563804304LED PNL MT 1" 24V WT DOME BLUE |
1,596 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Blue | Blue | Fresnel | DC | 24V | 32mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5563805304LED PNLMT 1" 125VAC WT DOME BLUE |
4,202 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Blue | Blue | Fresnel | AC | 125V | 9.5mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5571002203LED PNL MT 11/16" 5V WT WHITE |
3,222 |
|
Datasheet | 557 | Bulk | Obsolete | LED | White | - | - | DC | 5V | 16mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
