Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

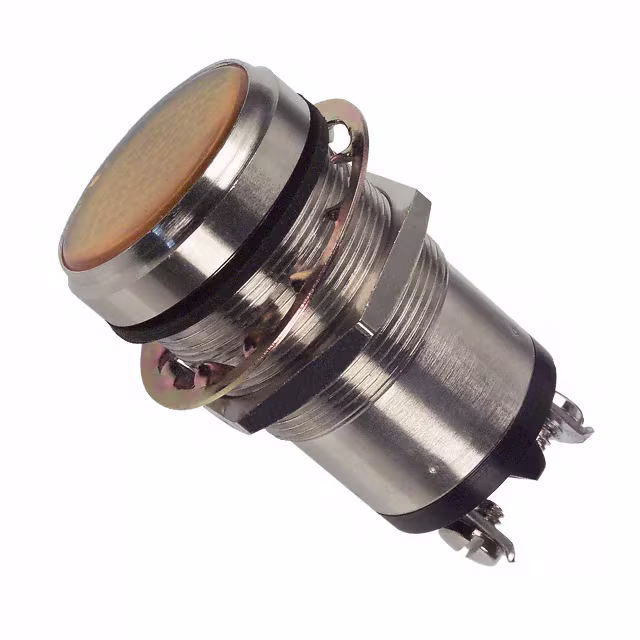

5561705304LED PNL MT 1" 125VAC WT FLAT YEL |
4,237 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Yellow | Yellow | Fresnel | AC | 125V | 10.5mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561803304LED PNL MT 1" 12V WT FLAT BLUE |
3,967 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Blue | Blue | Fresnel | DC | 12V | 60mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561804304LED PNL MT 1" 24V WT FLAT BLUE |
2,123 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Blue | Blue | Fresnel | DC | 24V | 32mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5561805304LED PNLMT 1" 125VAC WT FLAT BLUE |
1,713 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Blue | Blue | Fresnel | AC | 125V | 9.5mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563003304LED PNL MT 1" 12V WT DOME WHT |
1,196 |
|
Datasheet | 556 | Bulk | Obsolete | LED | White | White | Fresnel | DC | 12V | 60mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5563004304LED PNL MT 1" 24V WT DOME WHT |
3,844 |
|
Datasheet | 556 | Bulk | Obsolete | LED | White | White | Fresnel | DC | 24V | 32mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5563005304LED PNL MT 1" 125VAC WT DOME WHT |
2,632 |
|
Datasheet | 556 | Bulk | Obsolete | LED | White | White | Fresnel | AC | 125V | 9mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

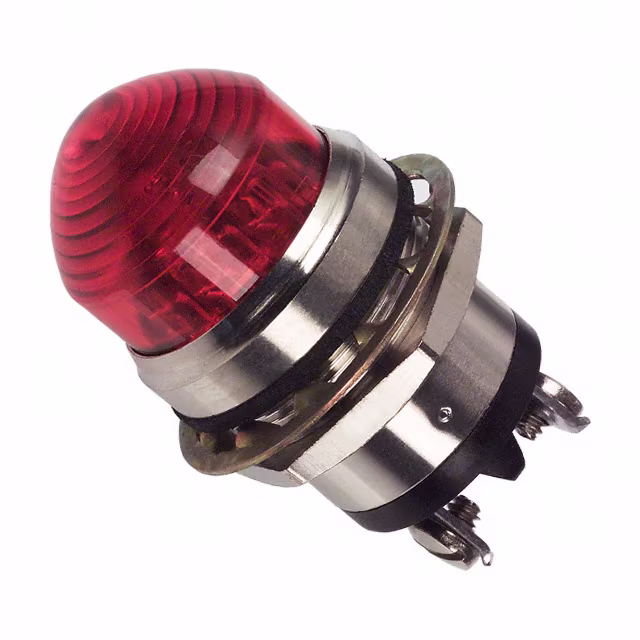

5563503304LED PNL MT 1" 12V WT DOME RED |
4,628 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Red | Red | Fresnel | DC | 12V | 95mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5563504304LED PNL MT 1" 24V WT DOME RED |
2,245 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Red | Red | Fresnel | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563505304LED PNL MT 1" 125VAC WT DOME RED |
4,339 |
|
Datasheet | 556 | Bulk | Obsolete | LED | Red | Red | Fresnel | AC | 125V | 10.5mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
