Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSI-LXR4815SRD-150LED T-5MM W/LD 660NM SRD DFF RFL |
982 |
|
Datasheet | - | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 1.8V | 30mA | Round | 0.32" (8.20mm) | 5mm, T-1 3/4 | Round with Domed Top | 300mcd | 660nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
|
SSI-LXR1612ID-150LED T-3MM W/LD 635NM RED DIFF |
2,194 |
|
- |
- | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.24" (6.20mm) | 3mm, T-1 | Round with Domed Top | 30mcd | 635nm | 60° | Wire Leads - 6.000" (152.40mm) | - | - |
|
|
SSI-LXR4815USBD150LED PANEL INDICATOR BLUE 3.5V |
4,823 |
|
Datasheet | - | Bulk | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 3.5V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 250mcd | 470nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
SSI-LXH9SRD-150LED 5MM SUP RED 6"LDS REAR PNLMT |
467 |
|
Datasheet | - | Bulk | Obsolete | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 1.7V | 30mA | Round | 0.33" (8.38mm) | 5mm, T-1 3/4 | Round with Domed Top | 80mcd | 660nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
SSI-LXR3612YDLED 3MM YELLOW DIFF PANEL MOUNT |
381 |
|
- |
- | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 30mcd | 585nm | 60° | - | - | - |
|
SSI-LXR3816USBD150LED PANEL INDICATOR BLUE 3.5V |
2,949 |
|
Datasheet | - | Bulk | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 3.5V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 300mcd | 470nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|

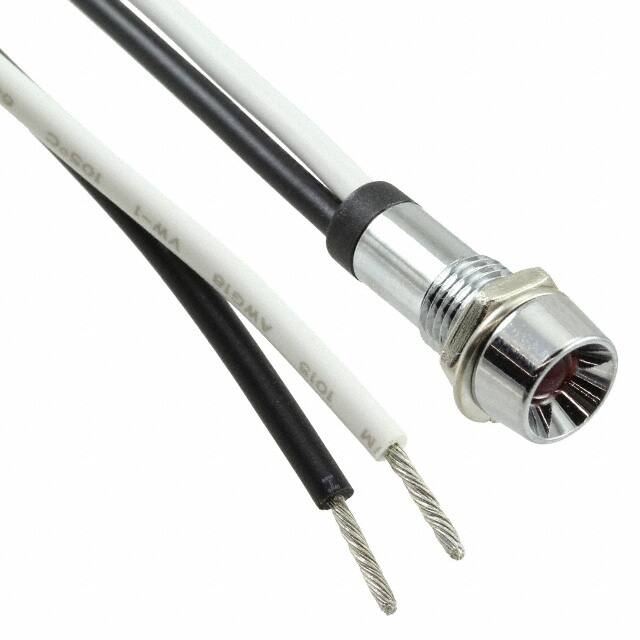

SSI-LXR9126SID110VLED RED PNL MNT 6"LDS W/CONN |
4,796 |
|
Datasheet | - | Bag | Active | LED | Red | Red | Diffused | AC | 120V | - | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 100mcd | 636nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
SSI-LXW08DNS-ILED IND M8 PNL MT RED 2V IP67 |
4,905 |
|
Datasheet | QuasarBrite | Tray | Active | LED | Red | - | - | DC | 12V | 20mA | - | - | - | Round with Domed Top | - | - | - | Screw Terminal | IP67 | - |
|
SSI-LXH55GDLED 5X5MM SQR GREEN DIFF PANELMT |
1,416 |
|
Datasheet | - | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Square | 0.34" (8.64mm) | 4.40mm | Square with Flat Top | 10mcd | 565nm | 80° | - | - | - |
|
|
SSI-LXH312GD-250LED PANEL INDICATOR GREEN 2.2V |
2,735 |
|
Datasheet | - | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 20mA | Round | 0.17" (4.32mm) | 3mm, T-1 | Round with Domed Top | 30mcd | 565nm | 60° | Wire Leads - 9.9" (251.46mm) | - | - |
