Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

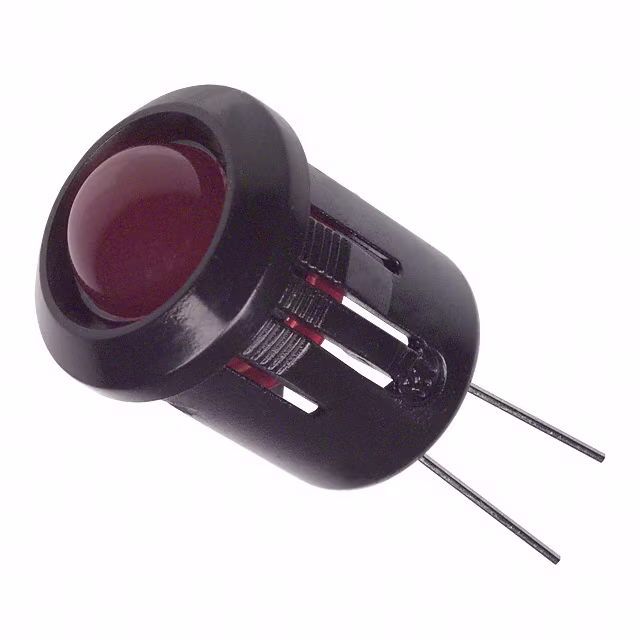

SSI-LXH8080IDLED 8MM RED DIFF PANEL MOUNT |
19,623 |
|
Datasheet | - | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.47" (11.94mm) | 8.00mm Dia | Round with Domed Top | 40mcd | 635nm | 60° | - | - | - |
|
SSI-LXH9GD-150LED 5MM GREEN 6"LDS REAR PANELMT |
2,500 |
|
Datasheet | - | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 25mA | Round | 0.33" (8.38mm) | 5mm, T-1 3/4 | Round with Domed Top | 30mcd | 565nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|

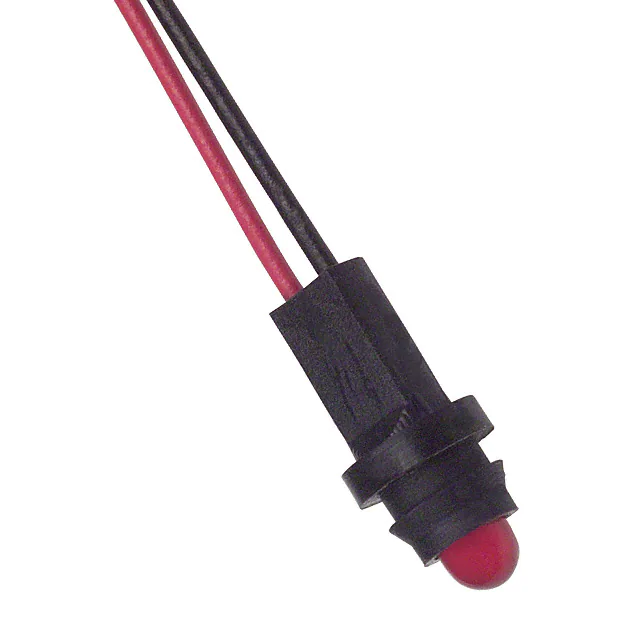

SSI-RM3091ID-150LED 3MM RED 6"LDS REAR PANEL MT |
4,576 |
|
Datasheet | - | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.20" (5.08mm) | 3mm, T-1 | Round with Domed Top | 30mcd | 635nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|

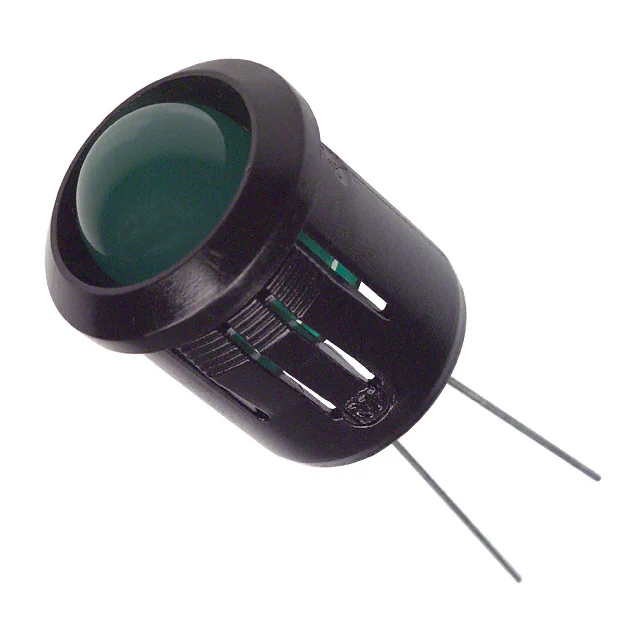

SSI-LXH1090GDLED 10MM GRN PANEL MOUNT |
2,419 |
|
Datasheet | - | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 25mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 30mcd | 565nm | 60° | - | - | - |
|
SSI-RM3091GD-150LED 3MM GREEN 6"LDS REAR PANELMT |
8,717 |
|
Datasheet | - | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 25mA | Round | 0.20" (5.08mm) | 3mm, T-1 | Round with Domed Top | 20mcd | 565nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
SSI-LXR1612YDLED 3MM FLUSH YELLOW DIFF PNL MT |
2,212 |
|
Datasheet | - | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 30mcd | 585nm | 60° | - | - | - |
|
SSI-LXR4815IDLED 5MM RED DIFF REFL PANEL MNT |
2,250 |
|
Datasheet | - | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd | 635nm | 60° | - | - | - |
|
SSI-LXR4815YDLED 5MM YELLOW DIFF REFL PANELMT |
1,390 |
|
Datasheet | - | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 20mcd | 585nm | 60° | - | - | - |
|
SSI-LXR1612IDLED 3MM FLUSH RED DIFF PANEL MT |
939 |
|
Datasheet | - | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 30mcd | 635nm | 60° | - | - | - |
.jpg)
|
SSI-LXR4815GDLED 5MM GREEN REFLECTOR PANEL MT |
407 |
|
Datasheet | - | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 25mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 30mcd | 565nm | 60° | - | - | - |
