Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSI-LXH312USBD-150LED PANEL INDICATOR BLUE 3.5V |
1,400 |
|
Datasheet | - | Bulk | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 3.5V | 20mA | Round | 0.32" (8.13mm) | 3mm, T-1 | Round with Domed Top | 60mcd | 470nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
|
SSI-LXR3816SUGD150LED PANEL INDICATOR GREEN 2.2V |
2,115 |
|
Datasheet | - | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 170mcd | 574nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
|
SSI-LXR4915SYD-150LED PANEL INDICATOR YELLOW 2.1V |
3,842 |
|
Datasheet | - | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.56" (14.22mm) | 10mm, T-3 1/8 | Round with Domed Top | 350mcd | 590nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
|
SSI-LXR3612GD-450LED PANEL INDICATOR GREEN 2.2V |
1,909 |
|
Datasheet | - | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 20mA | Round | 0.24" (6.20mm) | 3mm, T-1 | Round with Domed Top | 30mcd | 565nm | 60° | Wire Leads - 18" (457.20mm) | - | - |
|
|
SSI-LXW06DNS-YLED IND M6 PNL MT YLW 2V IP67 |
2,852 |
|
Datasheet | QuasarBrite | Tray | Active | LED | Yellow | - | - | DC | 6V | 20mA | - | - | - | Round with Flat Top | - | - | - | Solder Lug | IP67 | - |
|
|
SSI-LXH312SYD-150T3MM PNL IND, 590NM ALINGAP YLW |
4,744 |
|
- |
- | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.17" (4.42mm) | 3mm, T-1 | Round with Domed Top | 100mcd | 590nm | 60° | Wire Leads - 6.000" (152.40mm) | - | - |
|
SSI-LXR1612SRDLED 3MM FLUSH SUP RED DIFF PNLMT |
2,807 |
|
- |
- | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 1.8V | 30mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 80mcd | 660nm | 30° | - | - | - |
|
SSI-LXR3612SRDLED 3MM SUPER RED DIFF PANEL MT |
4,731 |
|
- |
- | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 1.8V | 30mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 65mcd | 660nm | 60° | - | - | - |
|

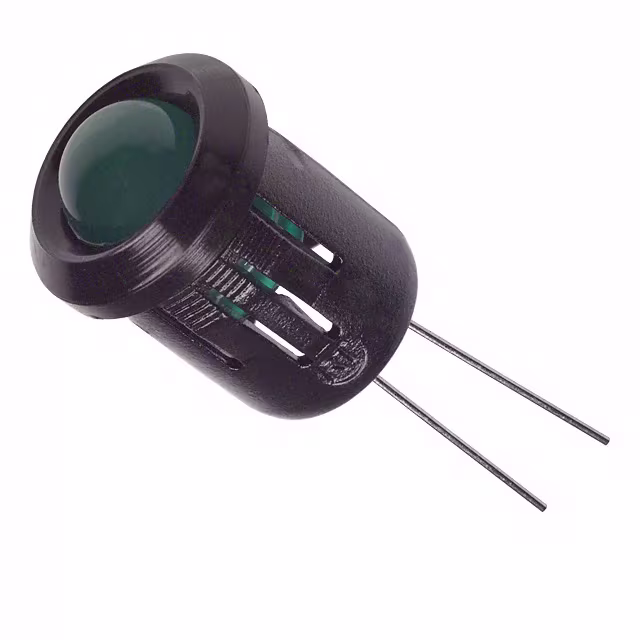

SSI-LXH8080GDLED 8MM GREEN DIFF PANEL MOUNT |
2,232 |
|
Datasheet | - | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 25mA | Round | 0.47" (11.94mm) | 8.00mm Dia | Round with Domed Top | 30mcd | 565nm | 60° | - | - | - |
|

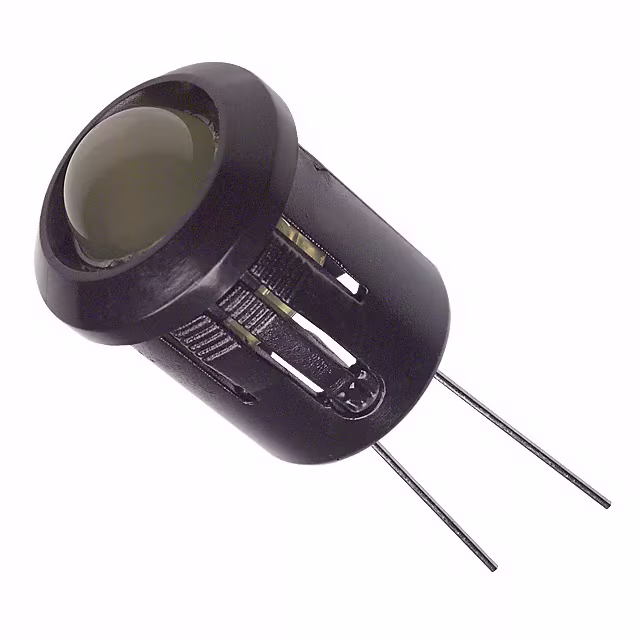

SSI-LXH8080YDLED 8MM YELLOW DIFF PANEL MOUNT |
3,971 |
|
Datasheet | - | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.47" (11.94mm) | 8.00mm Dia | Round with Domed Top | 30mcd | 585nm | 60° | - | - | - |
