Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QS121XXHB110INDICATOR 12MM FIXED HI BLU 110V |
4,436 |
|
Datasheet | QS | Bulk | Active | LED | Blue | Blue | Diffused | AC | 110V | 6mA | Round | 0.472" (12.00mm) | 14.00mm Dia | Round with Flat Top | 1600mcd | - | 45° | Solder Lug | - | - |
|
QS81XXW12INDICATOR 8MM FIXED WHT 12V SLDR |
4,349 |
|
Datasheet | QS | Bulk | Active | LED | White | White | Diffused | DC | 12V | 20mA | Round | 0.315" (8.00mm) | 10.00mm Dia | Round with Flat Top | 1200mcd | - | 30° | Solder Lug | - | - |
|
Q14F3BXXY12ELED PM INDICATOR FLUSH YELLOW |
2,219 |
|
Datasheet | Q14 | Bag | Active | LED | Yellow | Yellow | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 4mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
QS81XXHB110INDICATOR 8MM FIXED HI BLU 110V |
2,249 |
|
Datasheet | QS | Bulk | Active | LED | Blue | Blue | Diffused | AC | 110V | 6mA | Round | 0.315" (8.00mm) | 10.00mm Dia | Round with Flat Top | 1600mcd | - | 45° | Solder Lug | - | - |
|
Q8R1CXXG12EINDICATOR 12V 8MM RECESSED GRN |
2,180 |
|
Datasheet | Q8 | Bulk | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 60mcd | - | 100° | Solder Lug | IP67 | - |
|
Q6P7BXXR02ELED PM INDICATOR PROMINENT RED |
4,821 |
|
Datasheet | Q6 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 40mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
.jpg)
|
Q8R7CXXR02ELED PM INDICATOR RECESSED RED |
3,584 |
|
Datasheet | Q8 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 50mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

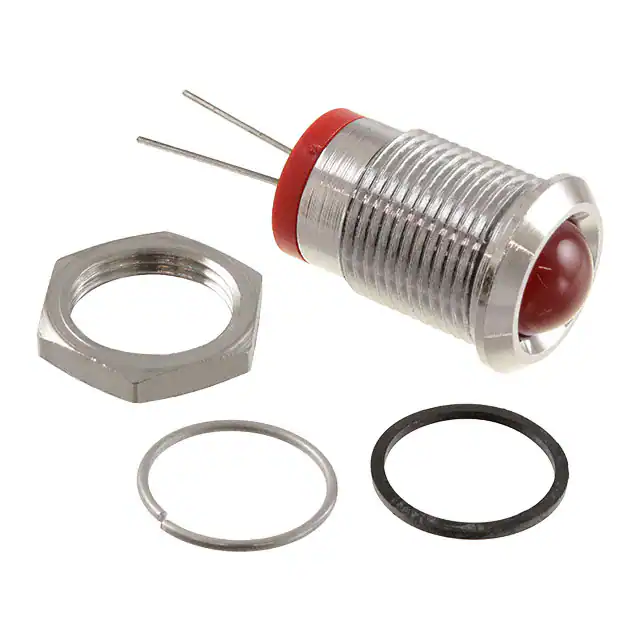

Q14P6CXXR02ELED INDICATOR 14MM PROMINENT 2VD |
4,984 |
|
Datasheet | Q14 | Bulk | Active | LED | Red | Red | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.55" (14.00mm) | - | Round with Domed Top | 80mcd | - | - | PC Pin | IP67 | - |
|
Q14F1CXXG12EINDICATOR 12V 14MM FLUSH GREEN |
2,457 |
|
Datasheet | Q14 | Bulk | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 5mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14F3BXXW24ELED PM INDICATOR FLUSH WHITE |
2,318 |
|
Datasheet | Q14 | Bag | Active | LED | White | White | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 120mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
