Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q14P1CXXW12EINDICATOR 12V 14MM PROMINENT WHT |
1,798 |
|
Datasheet | Q14 | Bulk | Active | LED | White | White | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 1000mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q8P5CXXB24EINDICATOR 8MM PM PROMINENT BLUE |
3,627 |
|
Datasheet | Q8 | Bulk | Active | LED | Blue | Blue | Diffused | DC | 24V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Domed Top | 1600mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P5CXXB12EINDICATOR 8MM PM PROMINENT BLUE |
4,363 |
|
Datasheet | Q8 | Tray | Active | LED | Blue | Blue | Diffused | DC | 12V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Domed Top | 1600mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P5CXXW12EINDICATOR 8MM PM PROMINENT BLUE |
4,195 |
|
Datasheet | Q8 | Tray | Active | LED | White | White | Diffused | DC | 12V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Domed Top | 1600mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

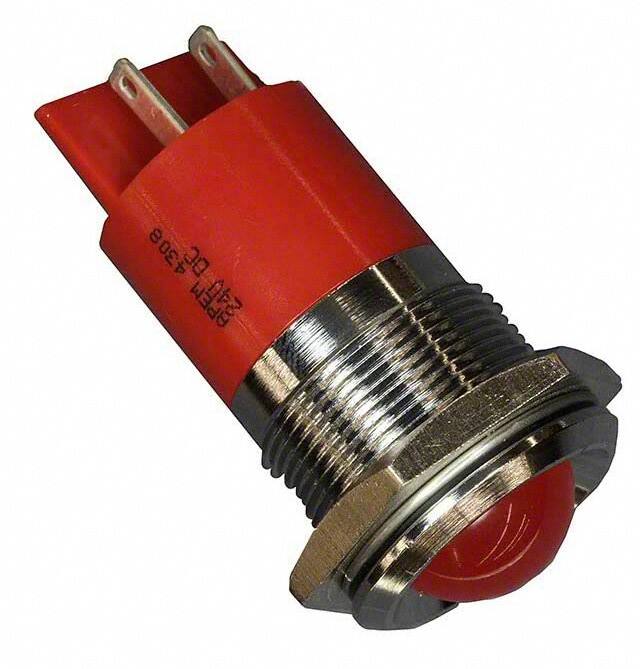

Q22P1CXXR24EINDICATOR 24V 22MM PROMINENT RED |
3,413 |
|
Datasheet | Q22 | Bulk | Active | LED | Red | Red | Diffused | DC | 24V | 40mA | Round | 0.87" (22.10mm) | 18.00mm Dia | Round with Domed Top | 80mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

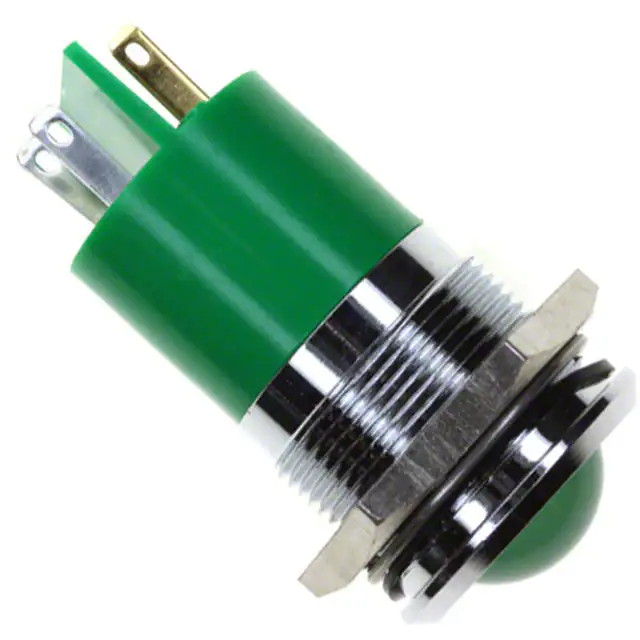

Q22P1CXXG24EINDICATOR 24V 22MM PROMINENT GRN |
2,068 |
|
Datasheet | Q22 | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 40mA | Round | 0.87" (22.10mm) | 18.00mm Dia | Round with Domed Top | 95mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

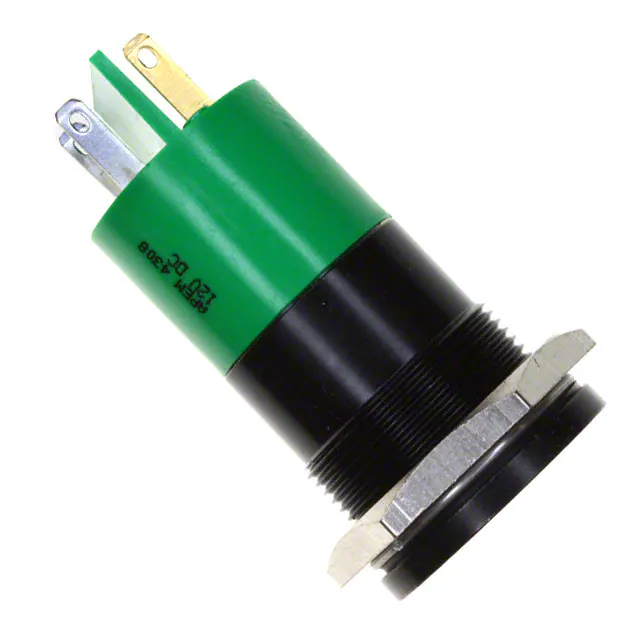

Q22F1BXXG12EINDICATOR 12V 22MM FLUSH GREEN |
3,105 |
|
Datasheet | Q22 | Bulk | Active | LED | Green | Green | Diffused | DC | 12V | 40mA | Round | 0.87" (22.10mm) | 18.00mm Dia | Round with Flat Top | 5mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q22F1ABXXB28AEINDICATOR 28V 22MM FLUSH BLUE |
3,126 |
|
Datasheet | Q22 | Bag | Active | LED | Blue | Blue | Diffused | AC/DC | 28V | 40mA | Round | 0.87" (22.10mm) | 18.00mm Dia | Round with Flat Top | 101mcd | - | - | Solder Lug | IP67 | - |
|

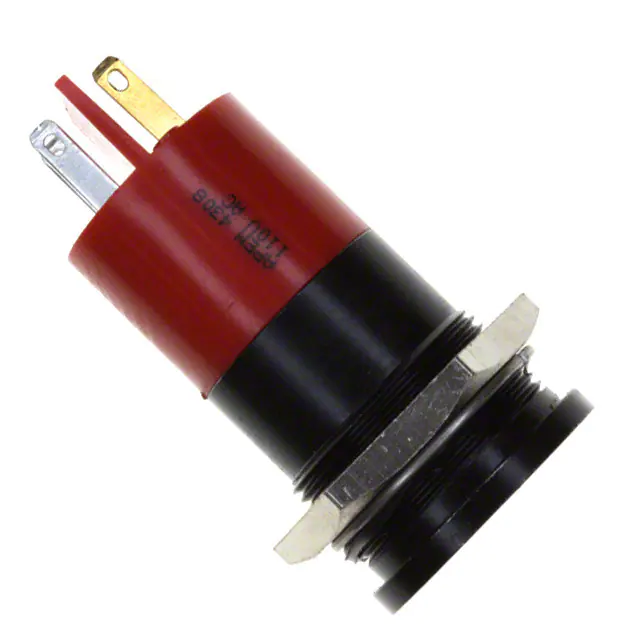

Q22F1BXXR110EINDICATOR 110V 22MM FLUSH RED |
2,877 |
|
Datasheet | Q22 | Bulk | Active | LED | Red | Red | Diffused | AC | 110V | 5mA | Round | 0.87" (22.10mm) | 18.00mm Dia | Round with Flat Top | 70mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
|
Q22F1ABXXB24AEINDICATOR 24V 22MM FLUSH BLUE |
4,873 |
|
Datasheet | Q22 | Bulk | Active | LED | Blue | Blue | Diffused | AC/DC | 24V | 40mA | Round | 0.87" (22.10mm) | 18.00mm Dia | Round with Flat Top | 101mcd | - | - | Solder Lug | IP67 | - |
