Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

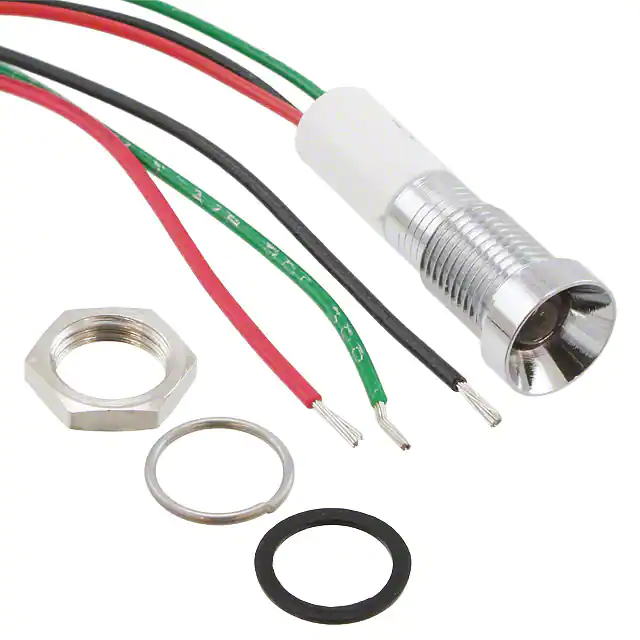

Q8R3CZZRYG24ELED PMI RECESSED GR/RD/YLW |
3,366 |
|
Datasheet | Q8 | Bag | Active | LED | Green, Red, Yellow | - | Diffused | DC | 24V Green, 24V Red, 24V Yellow | 20mA Green, 20mA Red, 20mA Yellow | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 15mcd Green, 60mcd Red, 13mcd Yellow | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F1BXXHG24E8MM FLSH BLK CHRM HYP GRN 24VDC |
1,103 |
|
Datasheet | Q8 | Tray | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.32" (8.13mm) | 9.40mm Dia | Round with Flat Top | 300mcd | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14P3CZZRYG12ELED PMI PROMINENT GRN/RED/YLW |
1,036 |
|
Datasheet | Q14 | Bag | Active | LED | Green, Red, Yellow | - | Diffused | DC | 12V Green, 12V Red, 12V Yellow | 20mA Green, 20mA Red, 20mA Yellow | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 50mcd Green, 80mcd Red, 50mcd Yellow | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P5CXXHY02EINDICATOR 8MM PM PROMINENT YELLO |
2,497 |
|
Datasheet | Q8 | Tray | Active | LED | Yellow | Yellow | Diffused | - | 2V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Domed Top | 1600mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P5BXXHY02EINDICATOR 8MM PM PROMINENT YELLO |
4,127 |
|
Datasheet | Q8 | Bulk | Active | LED | Yellow | Yellow | Diffused | - | 2V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Domed Top | 1600mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P5BXXHY12EINDICATOR 8MM PM PROMINENT YELLO |
3,347 |
|
Datasheet | Q8 | Tray | Active | LED | Yellow | Yellow | Diffused | DC | 12V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Domed Top | 1600mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F5CXXB24EINDICATOR 8MM PM FLUSH BLUE POTT |
3,298 |
|
Datasheet | Q8 | Tray | Active | LED | Blue | Blue | Diffused | DC | 24V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Flat Top | 50mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q12-7F5BXXHR12ELED INDICATOR 12.7MM FLUSH BLACK |
1,451 |
|
Datasheet | Q12-7 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.50" (12.70mm) | 8.00mm Dia | Round with Flat Top | - | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F3CXXHG110ELED PMI FLUSH 110VAC GREEN |
3,585 |
|
Datasheet | Q8 | Bag | Active | LED | Green | Green | Diffused | AC | 110V | 6mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 300mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

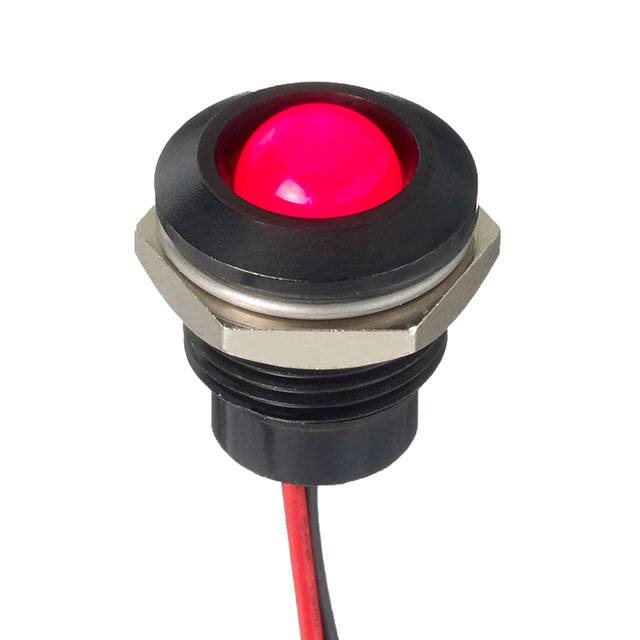

Q12-7P5BXXHR12ELED INDICATOR 12.7MM PROMINENT B |
2,473 |
|
Datasheet | Q12-7 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.50" (12.70mm) | 8.00mm Dia | Round with Domed Top | 350mcd | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
