Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q12-7P1CXXHR12ELED INDICATOR 12.7MM PROMINENT H |
2,903 |
|
Datasheet | Q12-7 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.50" (12.70mm) | 8.00mm Dia | Round with Domed Top | 350mcd | - | - | Solder Lug | IP67 | - |
|

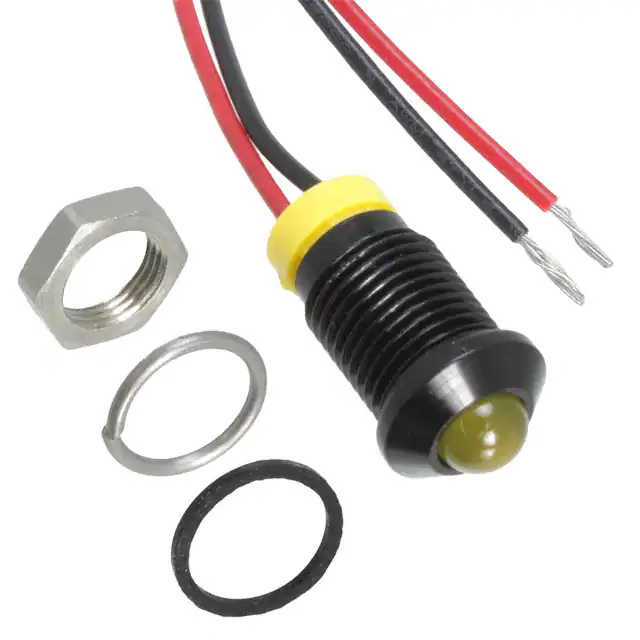

Q8P7BXXY02ELED PM IND PROMINENT YLW |
1,689 |
|
Datasheet | Q8 | Bag | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 50mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P1CXXHO02E8MM PRMNT CHRM HYPR ORG 2VDC |
2,058 |
|
Datasheet | Q8 | Tray | Active | LED | Orange | Orange | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.32" (8.13mm) | - | Round with Domed Top | 4500mcd | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q8F1BXXR110EINDICATOR 110V 8MM FLUSH RED |
3,345 |
|
Datasheet | Q8 | Bulk | Active | LED | Red | Red | Diffused | AC | 110V | 6mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 12mcd | - | 100° | Solder Lug | IP67 | - |
|
Q8P1BXXG110EINDICATOR 110V 8MM PROMINENT GRN |
4,988 |
|
Datasheet | Q8 | Bulk | Active | LED | Green | Green | Diffused | AC | 110V | 6mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 60mcd | - | 100° | Solder Lug | IP67 | - |
|
Q6F3CYYRG12ELED PANEL MOUNT INDICATOR RD/GR |
4,945 |
|
Datasheet | Q6 | Bag | Active | LED | Green, Red | Red | Diffused | DC | 12V Green, 12V Red | 20mA Green, 20mA Red | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 8mcd Green, 10mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F7BXXY02ELED PM INDICATOR FLUSH YLW |
4,882 |
|
Datasheet | Q8 | Bag | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 6mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14F3CXXR12ELED PM INDICATOR FLUSH RED |
2,358 |
|
Datasheet | Q14 | Bag | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 10mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14F3CXXY24ELED PM INDICATOR FLUSH YELLOW |
3,628 |
|
Datasheet | Q14 | Bag | Active | LED | Yellow | Yellow | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 4mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14P3BXXY24ELED PM INDICATOR PROMINENT YLW |
2,895 |
|
Datasheet | Q14 | Bag | Active | LED | Yellow | Yellow | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 50mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
