Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q6P1BXXB24EINDICATOR 24V 6MM PROMINENT BLU |
4,978 |
|
Datasheet | Q6 | Bulk | Active | LED | Blue | Blue | Diffused | DC | 24V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 1200mcd | - | 100° | Solder Lug | IP67 | - |
|
Q6P1CXXB24EINDICATOR 24V 6MM PROMINENT BLU |
1,362 |
|
Datasheet | Q6 | Bulk | Active | LED | Blue | Blue | Diffused | DC | 24V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 1200mcd | - | 100° | Solder Lug | IP67 | - |
|
Q14P5BXXHR24ELED INDICATOR 14MM PROMINENT BLA |
4,687 |
|
Datasheet | Q14 | Bulk | Active | LED | Red | Red | Diffused | DC | 24V | 20mA | Round | 0.55" (14.00mm) | - | Round with Domed Top | 2800mcd | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8R1CXXB12EINDICATOR 12V 8MM RECESSED BLU |
4,469 |
|
Datasheet | Q8 | Bulk | Active | LED | Blue | Blue | Diffused | DC | 12V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 1600mcd | - | 100° | Solder Lug | IP67 | - |
|
Q14P1CXXHO02E14MM PRMNT CHRM HYPR ORG 2VDC |
1,476 |
|
Datasheet | Q14 | Tray | Active | LED | Orange | Orange | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.55" (13.97mm) | - | Round with Domed Top | 850mcd | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

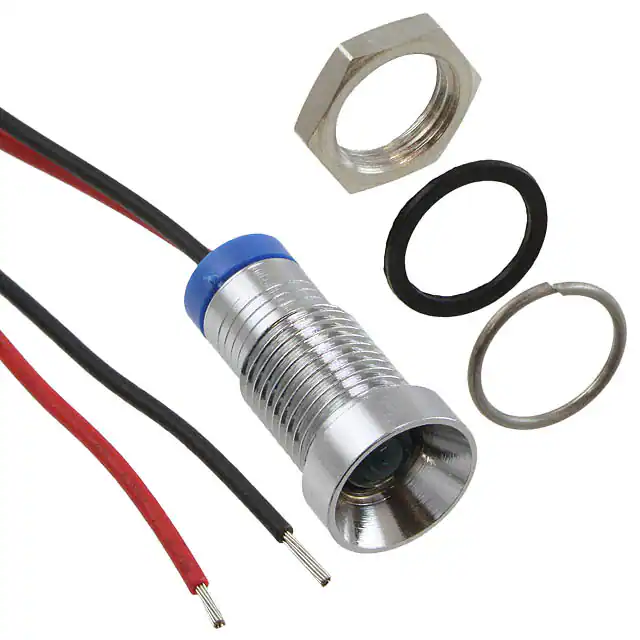

Q8R7CXXB02ELED PANEL MOUNT INDICATOR BLUE |
3,511 |
|
Datasheet | Q8 | Bag | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 90mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F1CXXW24EINDICATOR 24V 8MM FLUSH WHITE |
3,558 |
|
Datasheet | Q8 | Bulk | Active | LED | White | White | Diffused | DC | 24V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 25mcd | - | 100° | Solder Lug | IP67 | - |
|
Q8P1CXXW12EINDICATOR 12V 8MM PROMINENT WHT |
2,174 |
|
Datasheet | Q8 | Bulk | Active | LED | White | White | Diffused | DC | 12V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 1600mcd | - | 100° | Solder Lug | IP67 | - |
|
Q12-7P1CXXHY02ELED INDICATOR 12.7MM PROMINENT H |
2,877 |
|
Datasheet | Q12-7 | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.50" (12.70mm) | 8.00mm Dia | Round with Domed Top | 50mcd | - | - | Solder Lug | IP67 | - |
|
Q8F1BXXHO24E8MM FLSH BLK CHRM HYP ORG 24VDC |
1,363 |
|
Datasheet | Q8 | Tray | Active | LED | Orange | Orange | Diffused | DC | 24V | 20mA | Round | 0.32" (8.13mm) | 9.40mm Dia | Round with Flat Top | 110mcd | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
