Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q8F1BXXY24EINDICATOR 24V 8MM FLUSH YELLOW |
2,546 |
|
Datasheet | Q8 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 24V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 6mcd | - | 100° | Solder Lug | IP67 | - |
|
Q8F1CXXR24EINDICATOR 24V 8MM FLUSH RED |
1,388 |
|
Datasheet | Q8 | Bulk | Active | LED | Red | Red | Diffused | DC | 24V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 12mcd | - | 100° | Solder Lug | IP67 | - |
|

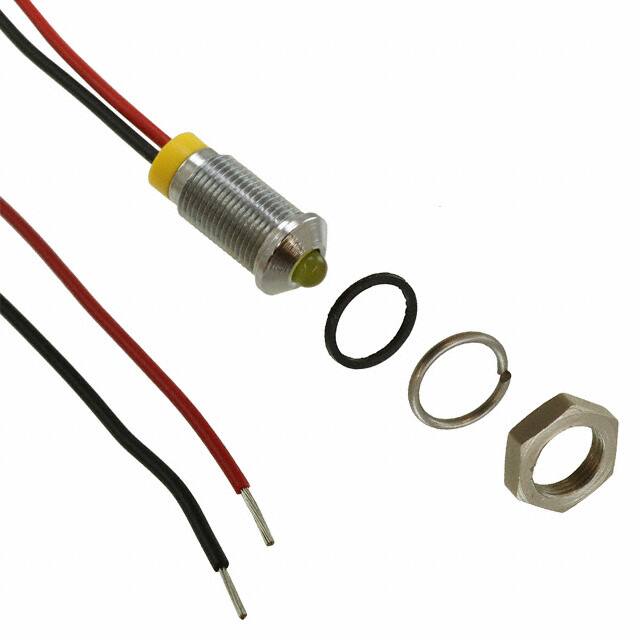

Q6P7CXXY02ELED PM INDICATOR PROMINENT YLW |
1,784 |
|
Datasheet | Q6 | Bag | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 30mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8R7BXXY02ELED PM INDICATOR RECESSED YLW |
2,423 |
|
Datasheet | Q8 | Bag | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14P6CXXY02ELED INDICATOR 14MM PROMINENT 2VD |
2,482 |
|
Datasheet | Q14 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.55" (14.00mm) | - | Round with Domed Top | 50mcd | - | - | PC Pin | IP67 | - |
|
Q14P6CXXG02ELED INDICATOR 14MM PROMINENT 2VD |
1,195 |
|
Datasheet | Q14 | Bulk | Active | LED | Green | Green | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.55" (14.00mm) | - | Round with Domed Top | 60mcd | - | - | PC Pin | IP67 | - |
|
Q12-7P1CXXHR02ELED INDICATOR 12.7MM PROMINENT H |
1,375 |
|
Datasheet | Q12-7 | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.2V | 20mA | Round | 0.50" (12.70mm) | 8.00mm Dia | Round with Domed Top | 350mcd | - | - | Solder Lug | IP67 | - |
|
Q14P1BXXR24EINDICATOR 24V 14MM PROMINENT RED |
2,990 |
|
Datasheet | Q14 | Bulk | Active | LED | Red | Red | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 100mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14P1BXXG24EINDICATOR 24V 14MM PROMINENT GRN |
3,021 |
|
Datasheet | Q14 | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 60mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q14F1BXXR12EINDICATOR 12V 14MM FLUSH RED |
3,552 |
|
Datasheet | Q14 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 10mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
