Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-01699CABLE 9COND 24AWG BLACK |
1,989 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 24 AWG | 41/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.268" (6.81mm) | - | 502.0' (153.0m) | Black | - | - | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-02857CABLE 2COND 20AWG BLK/RED 1M |
3,123 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 20 AWG | 21/0.0070" | Copper, Bare | Polyethylene (XLPE), Irradiated; Low Smoke Zero Halogen (LSZH) | 0.142" (3.61mm) | - | 3.28' (1.00m) | Black, Red | UL Style 4384 | - | 300 V | 105°C | - | 0.0157" (0.400mm) | - | - |
|
30-00368CABLE 3COND 20AWG BLACK 1M |
4,038 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.195" (4.95mm) | - | 3.28' (1.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
.jpg)
|
30-00501CABLE 5COND 24AWG BLACK 1M |
3,757 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 5 | 24 AWG | 11/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.193" (4.90mm) | - | 3.28' (1.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
.jpg)
|
30-00510CABLE 6COND 28AWG BLACK 1M |
4,021 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 6 | 28 AWG | 7/0.0050" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.177" (4.50mm) | - | 3.28' (1.00m) | Black | UL Style 2464 | - | 300 V | -25°C ~ 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00683CABLE 2COND 18AWG BLACK 1M |
3,529 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 18 AWG | 34/41 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.205" (5.21mm) | - | 3.28' (1.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|

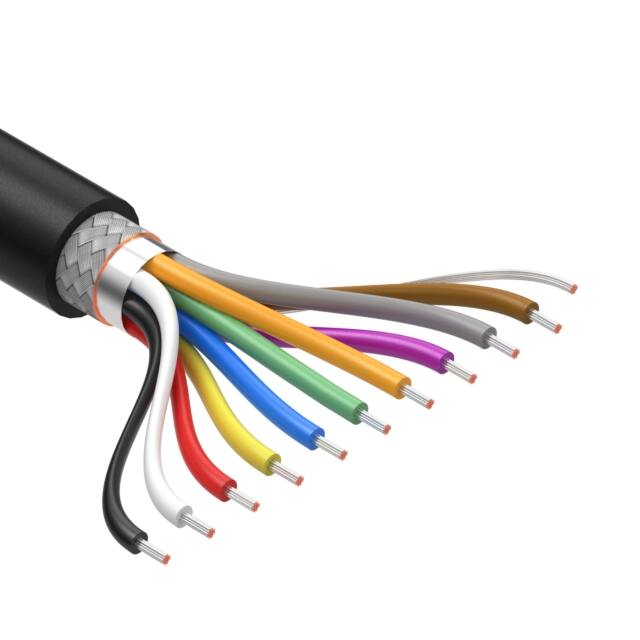

30-01628CABLE 10COND 26AWG BLACK SHLD |
3,797 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 26 AWG | 26/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.287" (7.29mm) | Foil, Braid | - | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01319CABLE 8COND 26AWG BLACK 1M |
4,300 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 8 | 26 AWG | 7/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.217" (5.51mm) | - | 3.28' (1.00m) | Black | UL Style 2464 | - | 300 V | -25°C ~ 80°C | - | 0.0366" (0.930mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-02395CBL 9CON 26AWG BLK TPU |
2,205 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 26 AWG | 19/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.209" (5.31mm) | - | 502.0' (153.0m) | Black | UL Style 20280 | - | 300 V | -40°C ~ 80°C | - | 0.0299" (0.759mm) | Thermoplastic Elastomer (TPE) | - |
|
30-00099CABLE 4COND 28AWG WHITE SHLD 1M |
3,531 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 4 (1 Pair Twisted) | 28 AWG | 7/0.0050" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.142" (3.61mm) | Foil, Braid | 3.28' (1.00m) | White | UL Style 2725 | Drain Wire | 30 V | 80°C | - | 0.0165" (0.420mm) | High Density Polyethylene (HDPE), Poly-Vinyl Chloride (PVC) | - |
