Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-01682CABLE 7COND 22AWG BLACK |
2,013 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.260" (6.60mm) | - | 502.0' (153.0m) | Black | - | - | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|

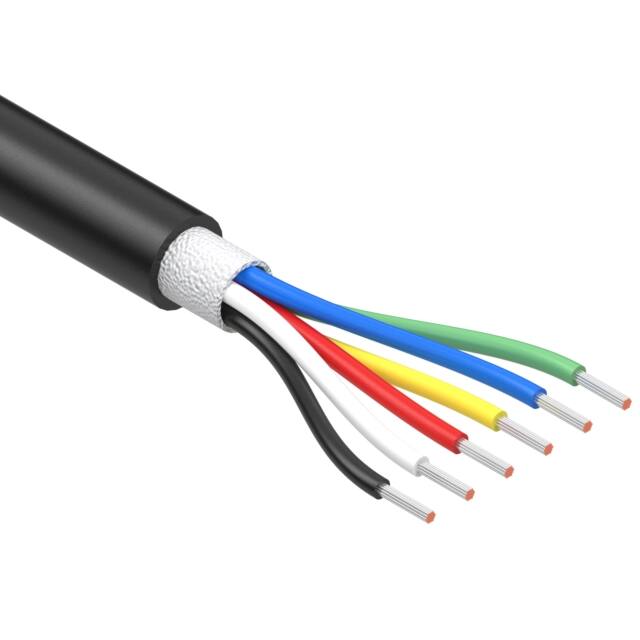

30-02010CABLE 6COND 26AWG BLACK |
2,380 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 26 AWG | 26/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.185" (4.70mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0098" (0.250mm) | Polyphenylene Ether, Modified (mPPE) | - |
|

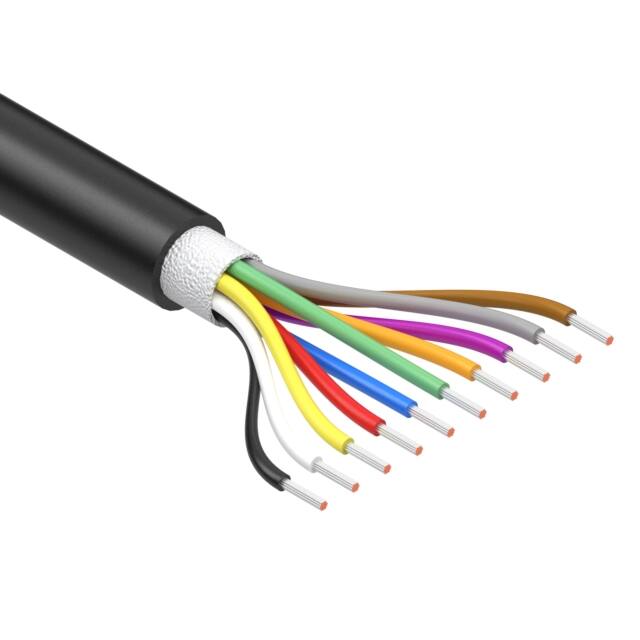

30-01970CABLE 10COND 30AWG BLACK |
3,239 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 30 AWG | 7/38 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.150" (3.81mm) | - | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
30-02826CBL 8CON 26AWG WHT BIO |
2,801 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 26 AWG | 26/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.169" (4.29mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02754CBL 8CON 26AWG GRY BIO |
3,291 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 26 AWG | 26/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.169" (4.29mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02481CABLE 10COND 32AWG BLACK SHLD |
1,347 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 32 AWG | 7/40 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.150" (3.81mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
30-02378CBL 7CON 24AWG BLK TPU |
4,140 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 24 AWG | 26/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.197" (5.00mm) | - | 502.0' (153.0m) | Black | UL Style 20280 | - | 300 V | -40°C ~ 80°C | - | 0.0299" (0.759mm) | Thermoplastic Elastomer (TPE) | - |
|

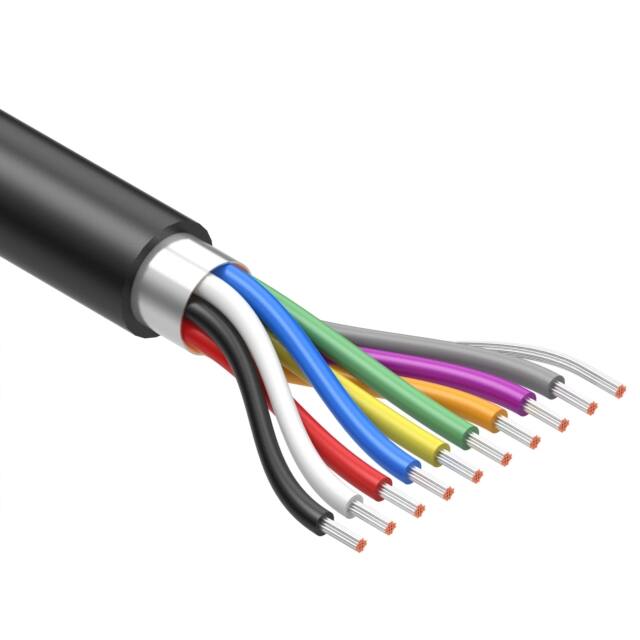

30-01526CBL 9COND 30AWG SHLD MPPE |
4,653 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 30 AWG | 7/0.0039" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.181" (4.60mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-02771CBL 10CON 28AWG GRY BIO |
3,224 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 28 AWG | 40/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.161" (4.09mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02843CBL 10CON 28AWG WHT BIO |
1,161 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 28 AWG | 40/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.161" (4.09mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
