Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-02834CBL 9CON 26AWG WHT BIO |
1,525 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 26 AWG | 26/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.181" (4.60mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02438CABLE 5COND 26AWG BLACK SHLD |
3,570 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 5 | 26 AWG | 19/38 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.150" (3.81mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-01544CABLE 10COND 32AWG SHLD MPPE |
3,158 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 32 AWG | 7/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.177" (4.50mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0276" (0.700mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-02018CABLE 7COND 26AWG BLACK |
3,089 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 26 AWG | 26/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.185" (4.70mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0098" (0.250mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-02720CBL 4CON 22AWG GRY BIO |
4,971 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 22 AWG | 65/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.173" (4.39mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02648CBL 4CON 22AWG BLK BIO |
2,592 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 22 AWG | 65/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.173" (4.39mm) | - | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
30-01093CABLE 9COND 26AWG BLACK SHLD |
4,593 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 26 AWG | 7/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.252" (6.40mm) | Foil, Braid | 502.0' (153.0m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01023CABLE 3COND 28AWG BLACK SHLD 1M |
1,059 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 3 | 28 AWG | 7/0.0047" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.177" (4.50mm) | Foil, Braid | 3.28' (1.00m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01342CABLE 10COND 22AWG GRAY |
1,006 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.268" (6.81mm) | - | 502.0' (153.0m) | Gray | UL Style 2464 | - | 300 V | -25°C ~ 80°C | - | 0.0335" (0.851mm) | Poly-Vinyl Chloride (PVC) | - |
|

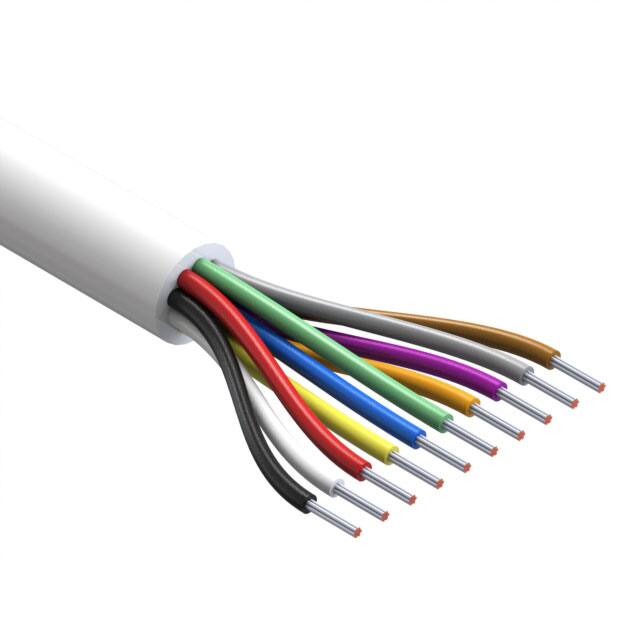

30-01341CABLE 10COND 22AWG WHITE |
4,616 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.268" (6.81mm) | - | 502.0' (153.0m) | White | UL Style 2464 | - | 300 V | -25°C ~ 80°C | - | 0.0335" (0.851mm) | Poly-Vinyl Chloride (PVC) | - |
