Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6453 BK001CABLE 2COND 22AWG BLK SHLD 1000' |
2,809 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.284" (7.21mm) | Foil, Braid | 1000.0' (304.8m) | Black | - | Drain Wire | 300 V | -20°C ~ 60°C | - | 0.0420" (1.067mm) | High Density Polyethylene (HDPE) | - |
|
5052C SL001CABLE 2COND 20AWG SLATE 1000' |
3,421 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.208" (5.28mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
1298C SL001CABLE 8COND 22AWG SHLD 1000' |
2,725 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.234" (5.94mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5110/25C SL005CABLE 25COND 22AWG SHLD 100' |
2,163 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 25 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.396" (10.06mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
6300/4 SL001CABLE 4COND 24AWG SHLD |
3,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.174" (4.42mm) | Foil | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

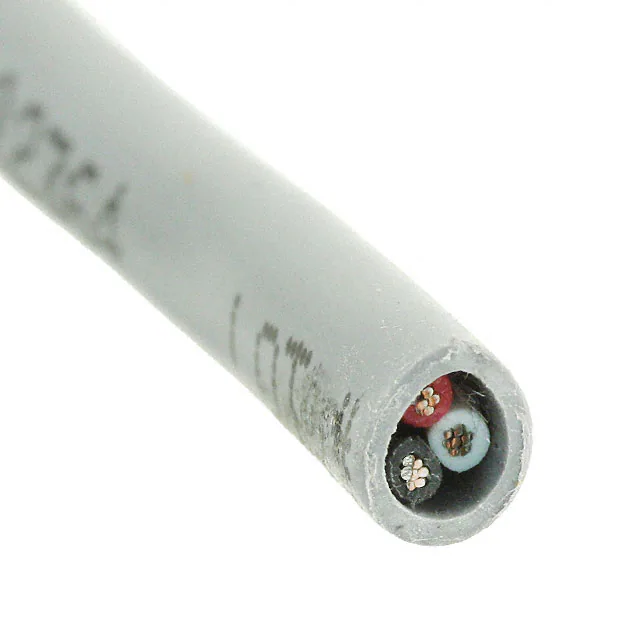

57003 SL002CABLE 3COND 24AWG SLATE SHLD |
2,500 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.120" (3.05mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -5°C ~ 75°C | - | 0.0154" (0.390mm) | Poly-Vinyl Chloride (PVC) | - |
|
6459 OR001CABLE 2COND 18AWG ORG SHLD |
6,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 7/26 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.292" (7.42mm) | Foil | 1000.0' (304.8m) | Orange | - | - | 300 V | -30°C ~ 105°C | Communication, Control | 0.0500" (1.270mm) | Polyolefin (PO) | - |
|
|
2464C SL001CABLE 4COND 22AWG SHLD |
4,000 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 (1 Pair + 2) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.165" (4.19mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polypropylene (PP) | - |
|
1172C SL013CABLE 2COND 22AWG SLATE FEET |
2,164 |
|
Datasheet | - | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.164" (4.17mm) | - | Enter Number of Feet in Order Quantity | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
74001 GR002CABLE 4COND 22AWG GREEN SHLD |
2,500 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 22 AWG | 19/34 | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.256" (6.50mm) | Foil, Braid | 500.0' (152.4m) | Green | UL Style 20549 | Oil Resistant | 300 V | -40°C ~ 80°C | Industrial, Network | 0.0310" (0.787mm) | Polyolefin (PO) | - |
