Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5093C SL005CABLE 3CON 24AWG SLATE SHLD 100' |
3,326 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.167" (4.24mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
78342 SL005CABLE 2CON 20AWG SLATE SHLD 100' |
1,966 |
|
Datasheet | EcoCable® Mini | Spool | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.173" (4.39mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|

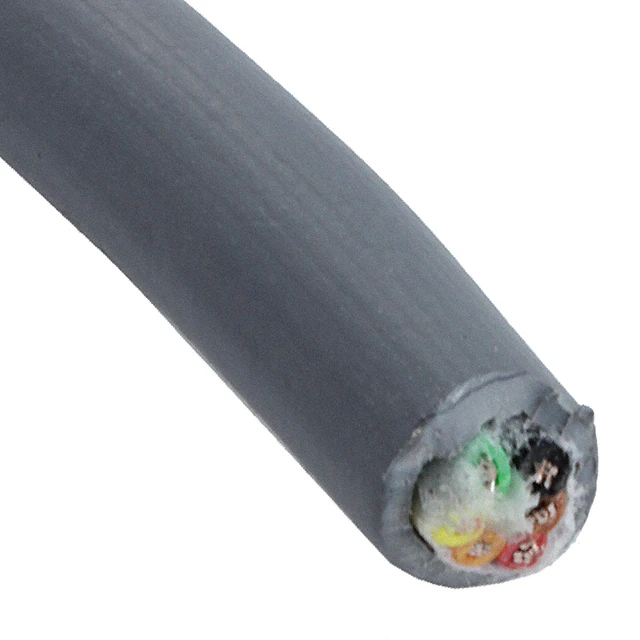

77050 SL005CABLE 6COND 26AWG SLATE 100' |
100 |
|
Datasheet | EcoCable® | Spool | Active | Multi-Conductor | 6 | 26 AWG | 7/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.186" (4.72mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21915 | Biological Compatibility, Rip Cord | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
78105 SL005MULTI-PAIR 10COND 28AWG 100' |
3,779 |
|
Datasheet | EcoCable® Mini | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 28 AWG | 19/40 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.171" (4.34mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
M1222 WH005CABLE 2CON 22AWG WHT SHLD 100' |
1,953 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Polytetrafluoroethylene (PTFE) | 0.146" (3.71mm) | Braid | 100.0' (30.5m) | White | - | - | 600 V | -55°C ~ 200°C | - | 0.0118" (0.300mm) | Polytetrafluoroethylene (PTFE) | - |
|
8671601CY SL005CABLE 2CON 16AWG SLATE SHLD 100' |
4,405 |
|
Datasheet | Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 16 AWG | 65/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.274" (6.96mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 20234 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - |
|
6632 WH005CABLE 2COND 22AWG WHITE 100' |
1,378 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (XLPVC), Irradiated | 0.167" (4.24mm) | - | 100.0' (30.5m) | White | UL Style 2576 | - | 300 V | -55°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
25196 BK005CABLE 6COND 22AWG BLK SHLD 100' |
191 |
|
Datasheet | Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/30 | Copper, Tinned | Polyurethane (PU) | 0.223" (5.66mm) | Foil | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
1951/3T BK003CABLE 3COND 18AWG BLACK 250' |
1,600 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 18 AWG | 41/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.241" (6.12mm) | - | 250.0' (76.2m) | Black | - | - | 300 V | -30°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

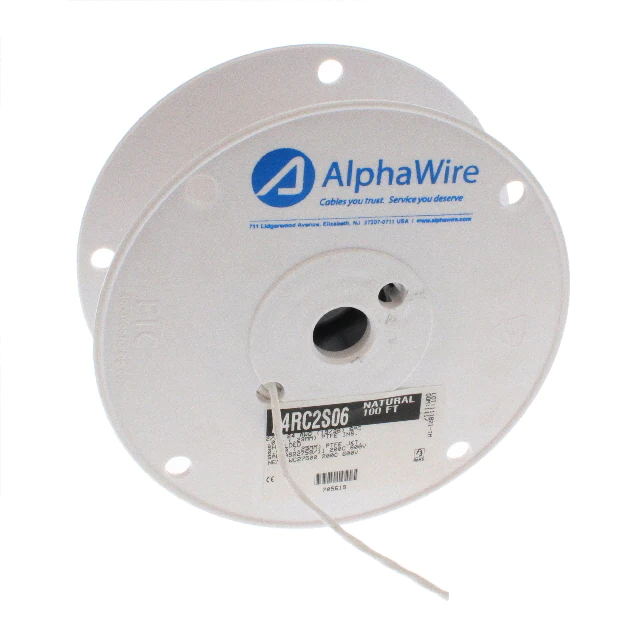

24RC2S06 NA005CABLE 2COND 24AWG NAT SHLD 100' |
3,901 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.124" (3.15mm) | Braid | 100.0' (30.5m) | Natural | - | - | 600 V | -55°C ~ 200°C | - | 0.0098" (0.250mm) | Polytetrafluoroethylene (PTFE) | - |
