Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

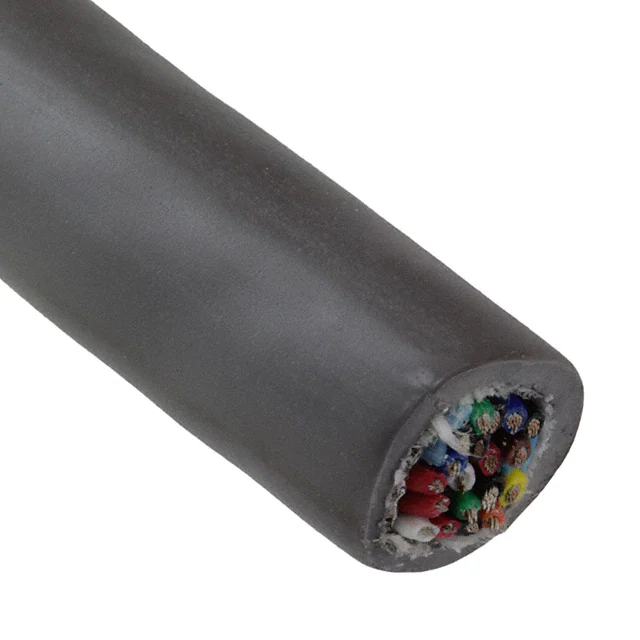

6380 SL005MULTI-PAIR 20COND 22AWG 100' |
3,967 |
|
Datasheet | - | Spool | Active | Multi-Pair | 20 (10 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.418" (10.62mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
1943/3 BK003CABLE 3COND 14AWG BLACK 250' |
237 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.368" (9.35mm) | - | 250.0' (76.2m) | Black | - | Drain Wire | 300 V | -30°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
1891C SL002CABLE 2COND 14AWG SLATE 500' |
3,576 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 14 AWG | 41/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.268" (6.81mm) | - | 500.0' (152.4m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|

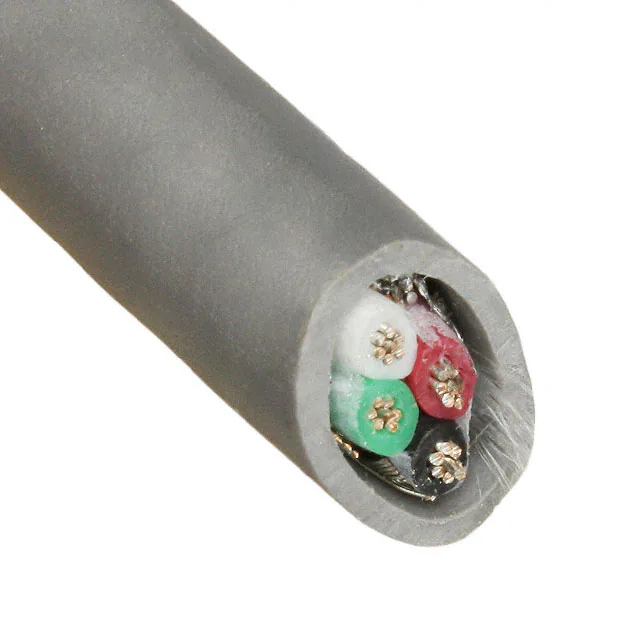

6340 SL001CABLE 4COND 22AWG SHLD 1000' |
3,248 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.211" (5.36mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5108C SL005CABLE 8CON 22AWG SLATE SHLD 100' |
2,372 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.263" (6.68mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

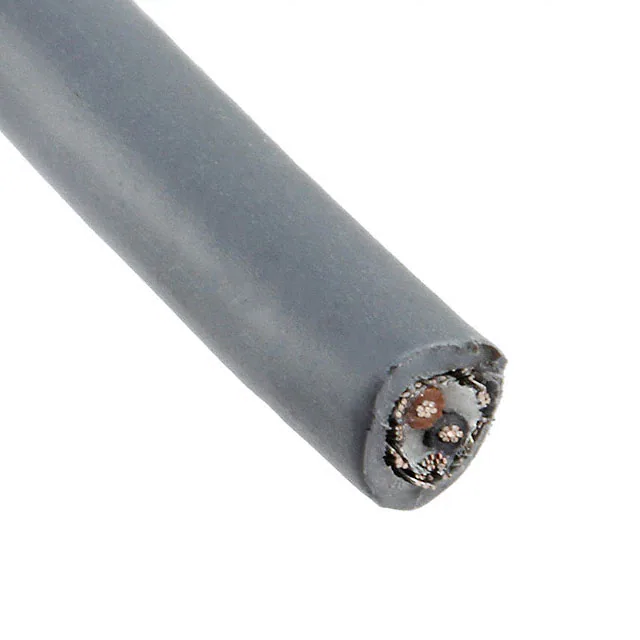

77222 SL005CABLE 2CON 16AWG SLATE SHLD 100' |
2,464 |
|
Datasheet | EcoCable® | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.254" (6.45mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
1294C SL001CABLE 4COND 22AWG SHLD 1000' |
1,128 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.189" (4.80mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
1899C SL001CABLE 2COND 16AWG SLATE 1000' |
4,615 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.222" (5.64mm) | - | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
5164C SL005CABLE 4CON 18AWG SLATE SHLD 100' |
2,154 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.287" (7.29mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5199/15C SL005CABLE 15COND 22AWG SHLD 100' |
2,094 |
|
Datasheet | Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.303" (7.70mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
