Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45454 BK001MULTI-PAIR 8COND 20AWG BLK 1000' |
2,165 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.376" (9.55mm) | Foil | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|

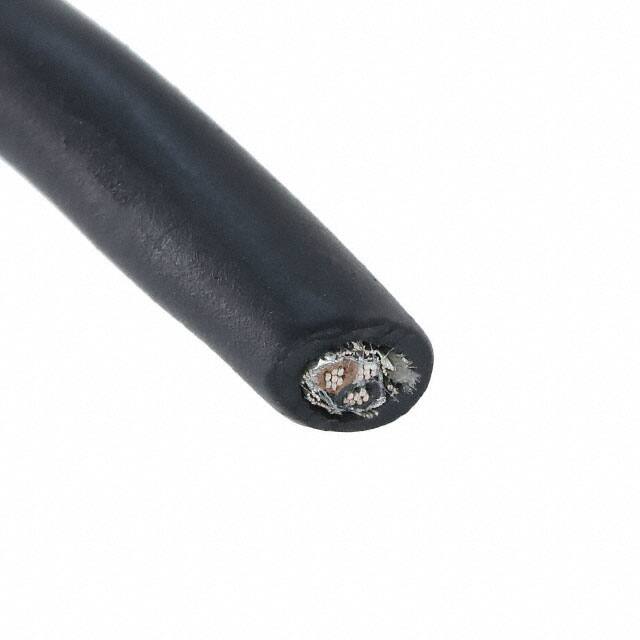

45532 BK001CABLE 2COND 16AWG BLK SHLD 1000' |
2,593 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.388" (9.86mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
45172 BK001CABLE 2COND 16AWG BLK SHLD 1000' |
1,473 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.304" (7.72mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
45363 BK001CABLE 3COND 16AWG BLK SHLD 1000' |
2,585 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.294" (7.47mm) | Foil | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
45010 BK001CABLE 10 COND 22AWG BLACK 1000' |
3,507 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 10 | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.342" (8.69mm) | - | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|

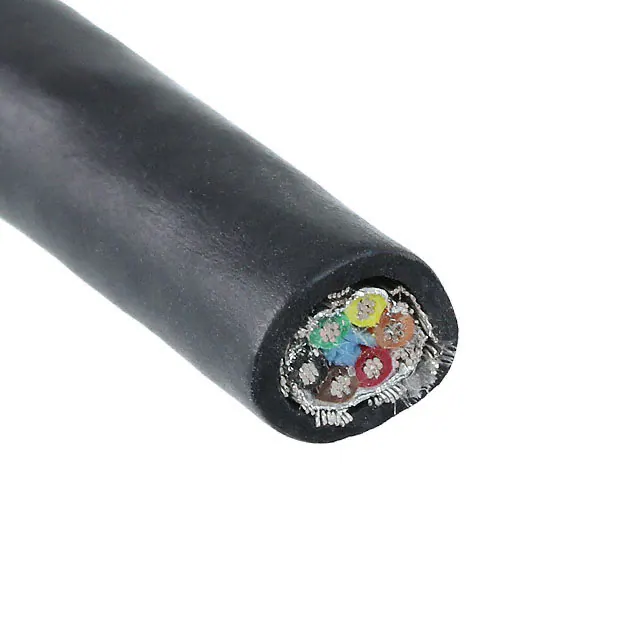

45106 BK001CABLE 6COND 22AWG BLK SHLD 1000' |
4,779 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.309" (7.85mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
45073/1 BK001CABLE 3 COND 16AWG BLACK 1000' |
4,376 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.290" (7.37mm) | - | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
45129/19 BK005MULTI-PAIR 38COND 22AWG BLK 100' |
2,542 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 38 (19 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.677" (17.20mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0650" (1.651mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45129/11 BK005MULTI-PAIR 22COND 22AWG BLK 100' |
2,581 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 22 (11 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.549" (13.94mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45178 BK005CABLE 8COND 16AWG BLK SHLD 100' |
4,282 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 8 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.446" (11.33mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
