Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45120/15 BK001CABLE 15 COND 24AWG BLACK 1000' |
4,713 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 15 | 24 AWG | 7/32 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.375" (9.53mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0420" (1.067mm) | Thermoplastic Elastomer (TPE) | - |
|
45440/3 BK001CABLE 3COND 16AWG BLK SHLD 1000' |
2,350 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.383" (9.73mm) | Foil | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
45430/4 BK001CABLE 4COND 18AWG BLK SHLD 1000' |
4,611 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.387" (9.83mm) | Foil | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45425 BK001CABLE 5 COND 18AWG BLACK 1000' |
3,006 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 5 | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.416" (10.57mm) | - | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
45523 BK001CABLE 3COND 18AWG BLK SHLD 1000' |
4,198 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.381" (9.68mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|

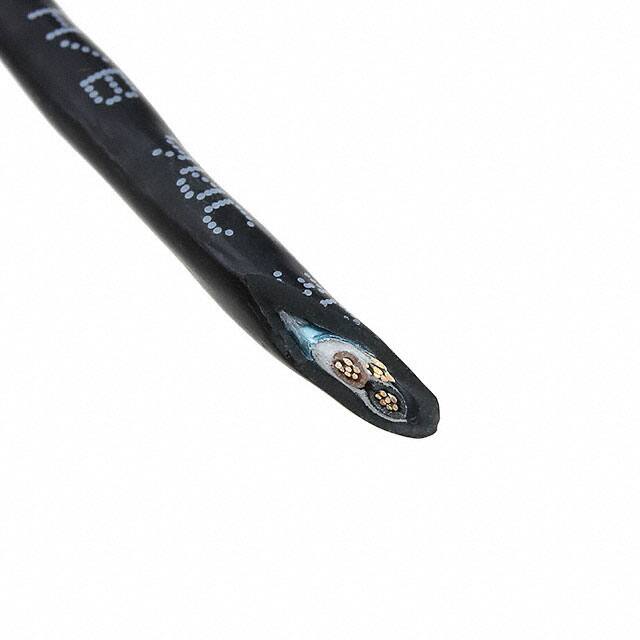

45440/2 BK001CABLE 2COND 16AWG BLK SHLD 1000' |
2,971 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.364" (9.25mm) | Foil | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
45486 BK001MULTI-PAIR 12COND 22AWG 1000' |
1,261 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.425" (10.80mm) | Foil | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
45364 BK001CABLE 4COND 16AWG BLK SHLD 1000' |
4,393 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 4 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.318" (8.08mm) | Foil | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|

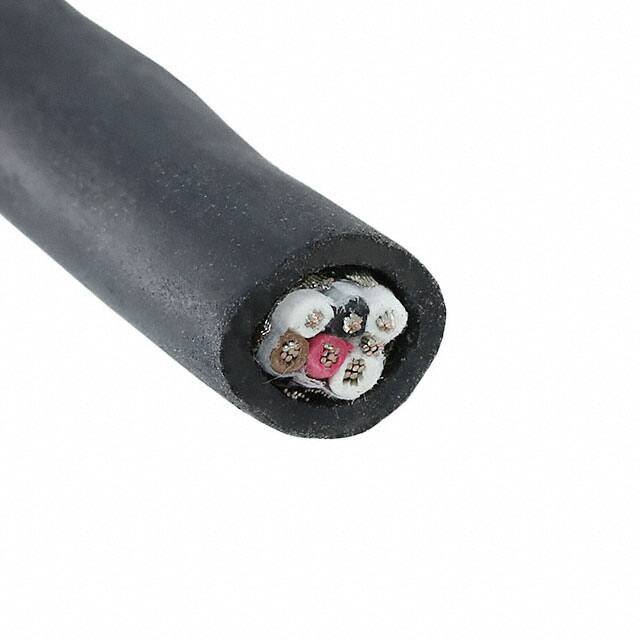

45293 BK001MULTI-PAIR 6COND 20AWG BLK 1000' |
1,185 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.370" (9.40mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45275 BK001MULTI-PAIR 10COND 24AWG 1000' |
3,744 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.365" (9.27mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0420" (1.067mm) | Thermoplastic Elastomer (TPE) | - |
