Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45160/25 BK001CABLE 25 COND 20AWG BLACK 1000' |
3,692 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 25 | 20 AWG | 7/28 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.562" (14.27mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45499/27 BK001MULTI-PAIR 54COND 24AWG 1000' |
3,671 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 54 (27 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.679" (17.24mm) | Foil | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0530" (1.346mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45129/15 BK001MULTI-PAIR 30COND 22AWG 1000' |
2,277 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 30 (15 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.632" (16.05mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0650" (1.651mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45060/25 BK001CABLE 25 COND 20AWG BLACK 1000' |
3,375 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 25 | 20 AWG | 7/28 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.534" (13.56mm) | - | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45160/20 BK001CABLE 20 COND 20AWG BLACK 1000' |
1,045 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 20 | 20 AWG | 7/28 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.511" (12.98mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45537 BK001CABLE 7COND 16AWG BLK SHLD 1000' |
2,100 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 7 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.514" (13.06mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
45299 BK001MULTI-PAIR 18COND 20AWG 1000' |
2,365 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.561" (14.25mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45178 BK001CABLE 8COND 16AWG BLK SHLD 1000' |
4,527 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 8 | 16 AWG | 19/0.0117" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.446" (11.33mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45110/20 BK001CABLE 20 COND 22AWG BLACK 1000' |
2,540 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 20 | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.469" (11.91mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
|

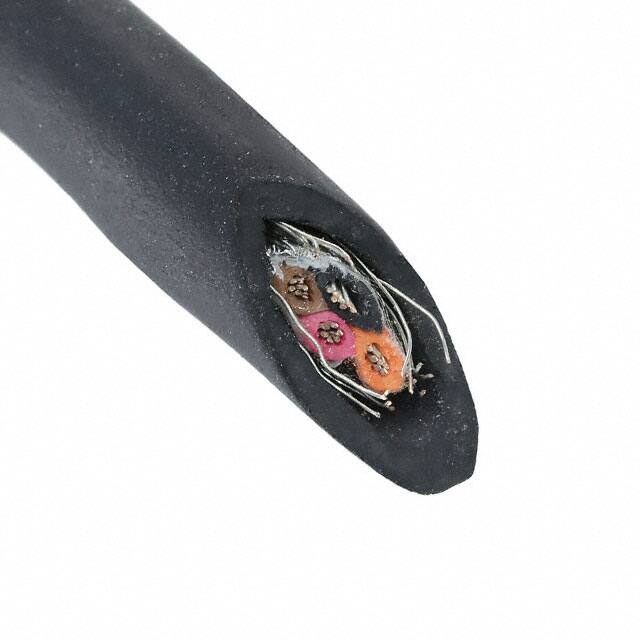

45544 BK001CABLE 4COND 14AWG BLK SHLD 1000' |
2,120 |
|
Datasheet | Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 4 | 14 AWG | 14/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.476" (12.09mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0550" (1.397mm) | Thermoplastic Elastomer (TPE) | - |
