Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
44SNSP44SNSP 44 AWG MAGNET WIRE, ENAME |
1,890 |
|
Datasheet | - | Bag | Active | 44 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 79798.0' (24322m) | MW 79-C | 1.0 lbs (453.6 g) |
|
2232MWKIT.252232MWKIT.25 MAGNET WIRE KIT, EN |
3,207 |
|
Datasheet | - | Bag | Active | 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | Assorted | MW 80-C | - |
|

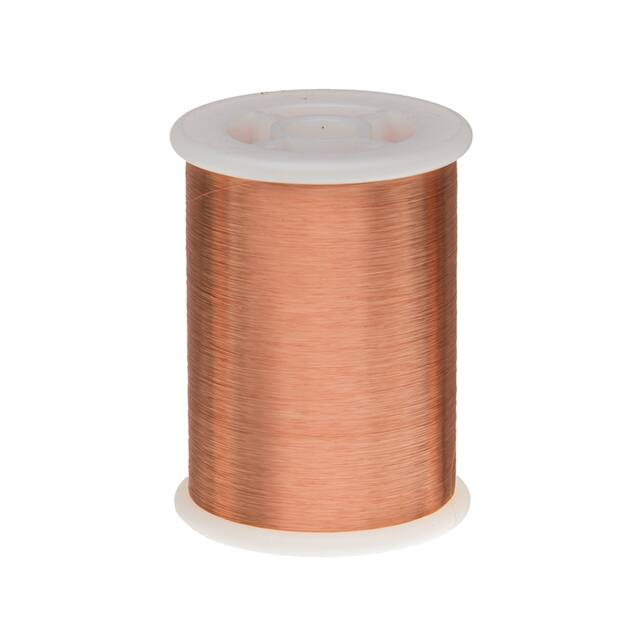

42.5SNSP42.5SNSP MAGNET WIRE, ENAMELED C |
4,491 |
|
Datasheet | - | Bag | Active | 42.5 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 55635.0' (16958m) | MW 79-C | 1.0 lbs (453.6 g) |
|
162/38LITZ.25#16 LITZ WIRE, 3/54/38STR, 4OZ |
2,088 |
|
Datasheet | - | Box | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.071" (1.80mm) | 32.0' (9.8m) | MW 80-C | 0.25 lbs (113.4 g) |
|
1424MWKIT.251424MWKIT.25 MAGNET WIRE KIT, EN |
1,857 |
|
Datasheet | - | Bag | Active | 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | Assorted | MW 80-C | - |
|
24SNS2.5MAGNET WIRE, ENAMELED COPPER WIR |
3,910 |
|
Datasheet | - | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 2007.0' (612m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
26SNS2.5MAGNET WIRE, ENAMELED COPPER WIR |
1,973 |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 3145.0' (959m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
28SNS2.5MAGNET WIRE, ENAMELED COPPER WIR |
2,937 |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 5068.0' (1545m) | MW 80-C | 2.5 lbs (1.1 kg) |
|

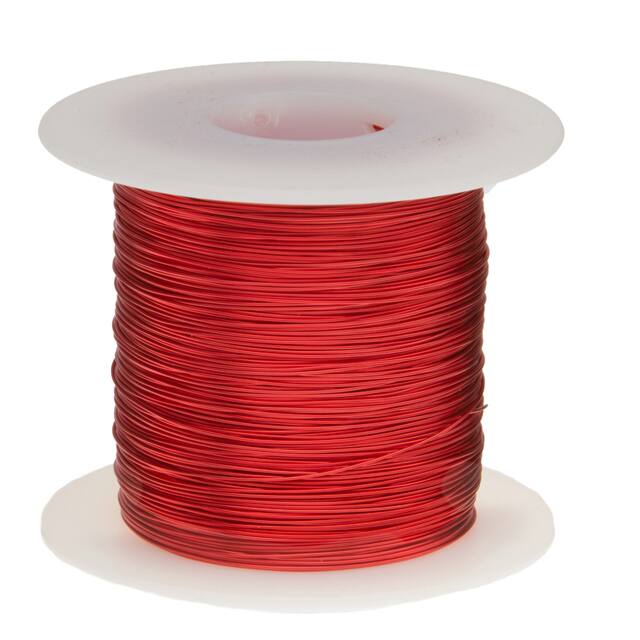

24HNS2.5MAGNET WIRE, HEAVY BUILD ENAMELE |
3,087 |
|
Datasheet | - | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1975.0' (602m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
30H240P.5#30 HVY MAG WIRE, 240C NAT 8OZ |
2,839 |
|
Datasheet | - | Box | Active | 30 AWG | Copper, Annealed Bare | Polyimide | 0.012" (0.30mm) | 40.0' (12.2m) | MW 16-C | 0.5 lbs (226.8 g) |
