Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25/38LITZ.125#24 LITZ WIRE, 25/38STR, 2OZ |
150 |
|
Datasheet | - | Box | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.026" (0.66mm) | 100.0' (30.5m) | MW 80-C | 0.13 lbs (56.7 g) |
|
16/38LITZ.125#26 LITZ WIRE, 16/38STR, 2OZ |
170 |
|
Datasheet | - | Box | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.021" (0.53mm) | 156.0' (47.5m) | MW 80-C | 0.13 lbs (56.7 g) |
|

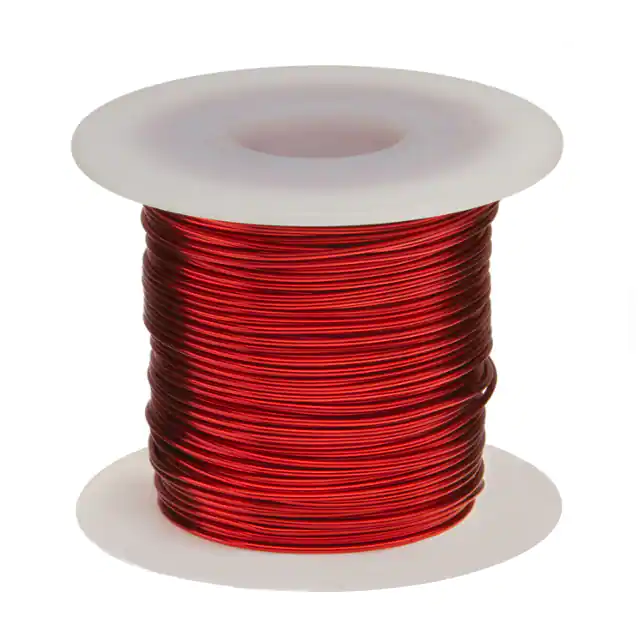

14SNSP14SNSP 14 AWG MAGNET WIRE, ENAME |
191 |
|
Datasheet | - | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 80.0' (24m) | MW 80-C | 1.0 lbs (453.6 g) |
|
33SNSP33SNSP 33 AWG MAGNET WIRE, ENAME |
1,354 |
|
Datasheet | - | Bag | Active | 33 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 6532.0' (1991m) | MW 79-C | - |
|
34SNSP34SNSP 34 AWG MAGNET WIRE, ENAME |
3,555 |
|
Datasheet | - | Bag | Active | 34 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 8086.0' (2465m) | MW 79-C | 1.0 lbs (453.6 g) |
|
35SNSP35SNSP 35 AWG MAGNET WIRE, ENAME |
2,499 |
|
Datasheet | - | Bag | Active | 35 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 10213.0' (3113m) | MW 79-C | 1.0 lbs (453.6 g) |
|
40S200P40S200P MAGNET WIRE, ENAMELED CO |
3,007 |
|
Datasheet | - | Bag | Active | 40 AWG | Copper, Annealed Bare | Polyester | - | 33217.0' (10125m) | MW 35-C | 1.0 lbs (453.6 g) |
|

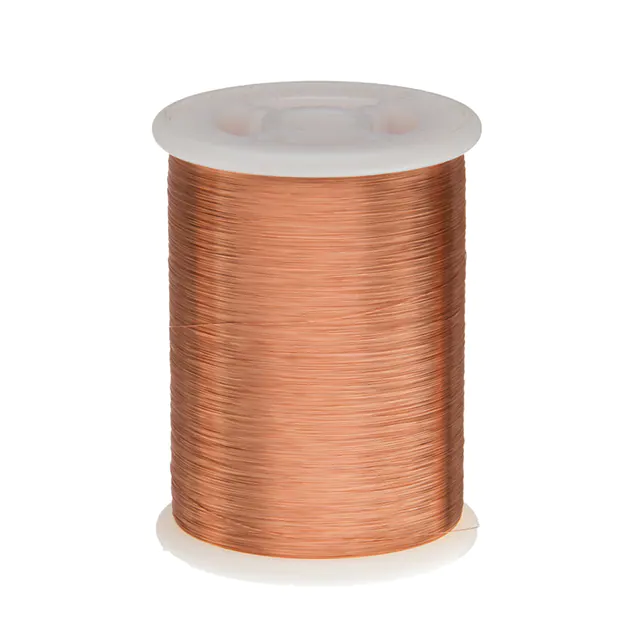

36SNSP36SNSP 36 AWG MAGNET WIRE, ENAME |
2,358 |
|
Datasheet | - | Bag | Active | 36 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 12772.0' (3893m) | MW 79-C | 1.0 lbs (453.6 g) |
|
37SNSP37SNSP MAGNET WIRE, ENAMELED COP |
4,547 |
|
Datasheet | - | Bag | Active | 37 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 15798.0' (4815m) | MW 79-C | 1.0 lbs (453.6 g) |
|

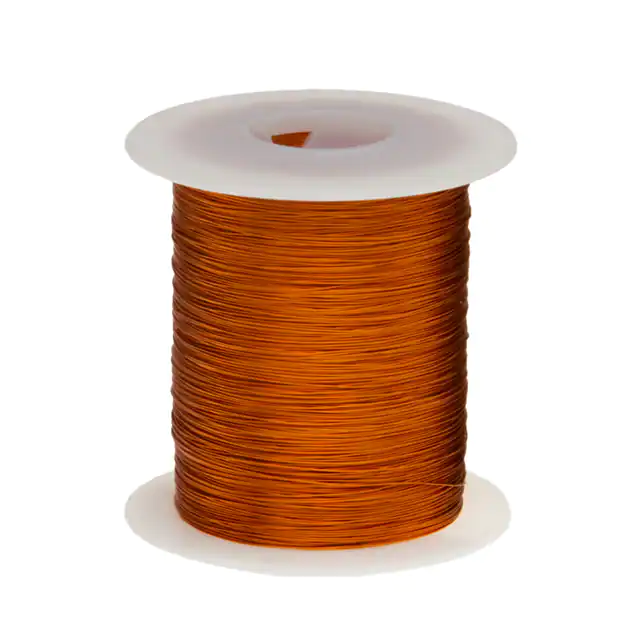

24H240P.5#24 HVY MAG WIRE, 240C NAT 8OZ |
4,492 |
|
Datasheet | - | Box | Active | 24 AWG | Copper, Annealed Bare | Polyimide | 0.023" (0.58mm) | 40.0' (12.2m) | MW 16-C | 0.5 lbs (226.8 g) |
